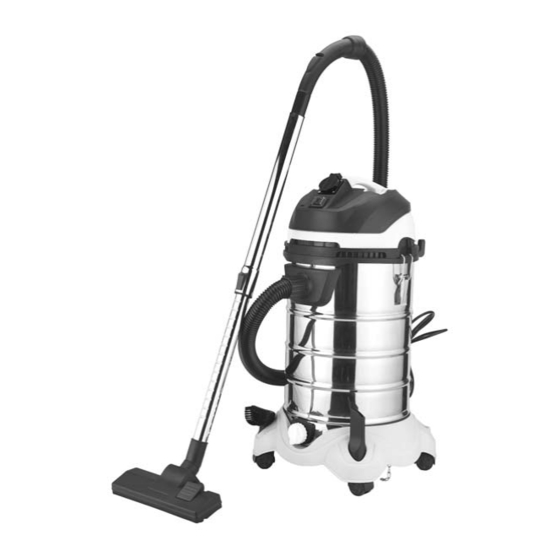

Fieldmann FDU 201432-E Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FDU 20
E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FDU 201432-E and is the answer not in the manual?

Questions and answers

Related Manuals for Fieldmann FDU 201432-E

Summary of Contents for Fieldmann FDU 201432-E

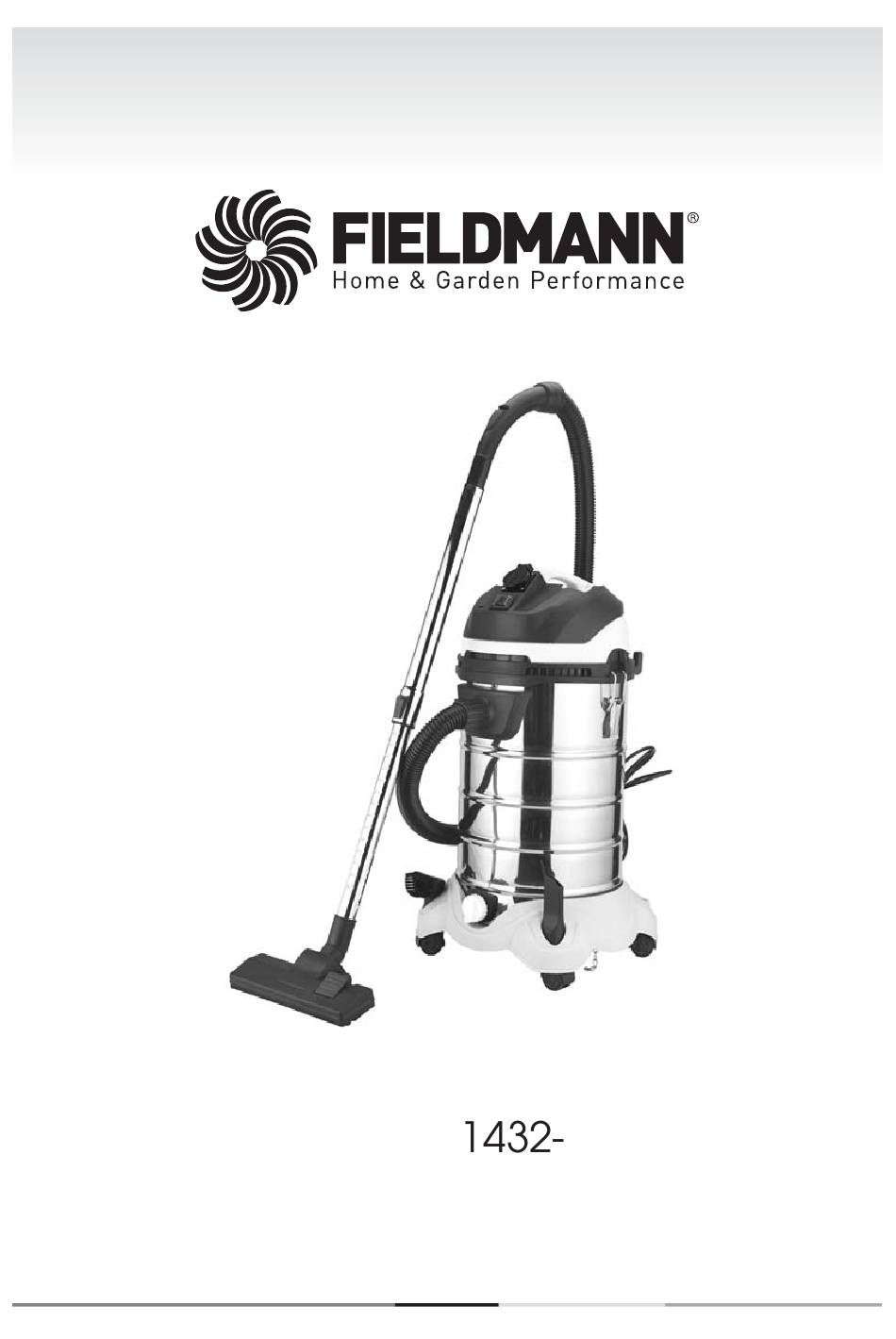

  • Page 1 FDU 20...
  • Page 4 WET&DRY VACUUM CLEANER OPERATING INSTRUCTIONS...
  • Page 5 FDU 2004-E...

  • Page 6: Table Of Contents

    Contents Wet&Dry Vacuum Cleaner OPERATING INSTRUCTIONS Thank you for buying this ash vacuum cleaner. Before using it, please read carefully this operating manual and retain it for further use. CONTENTS FIGURES ..............................3 1. GENERAL SAFETY INSTRUCTIONS ....................8 2. EXPLANATION OF INSTRUCTION LABELS ON THE MACHINE ........13 3.

  • Page 7: General Safety Instructions

    General safety instructions 1. GENERAL SAFETY INSTRUCTIONS Important safety warnings Unpack the product carefully and be sure not to throw away any part of the package before having found all components of the product. Keep the product in a dry place out of reach of children. Read all cautions and instructions.
  • Page 8 General safety instructions Carefully read, remember and keep these safety instructions WARNING! In the use of electric machines and power tools, it is necessary to respect and follow the following safety instructions for the reasons of protection against electric shock, personal injury and danger of fire. The term “power tool” in the instructions below refers both to mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 9 General safety instructions If an extension cord is used, always check whether its technical parameters match the information specified in the type label of the power tool. When operating a power tool outdoors, use an extension cord suitable for outdoor use. If extension drums are used, these must be rolled out to prevent overheating of the cord.
  • Page 10 General safety instructions Power Tool Use and Maintenance Always disconnect the power tool from the mains in case of any problem during the work, before cleaning the power tool or its maintenance, during each transportation and after the completion of the work! Never operate a power tool if it is damaged in any way. Immediately stop working if the power tool generates abnormal noise or smell.
  • Page 11 General safety instructions Handle the batteries with care. Rough handling could result in leak of chemical substance from the battery. Avoid contact with such substance and if, nonetheless, any contact occurs wash the affected area under running water. If eyes get into contact with the chemical substance seek immediately medical aid.

  • Page 12: Explanation Of Instruction Labels On The Machine

    Explanation of instruction labelson the machine 2. EXPLANATION OF INSTRUCTION LABELS ON THE MACHINE WET&DRY VACUUM CLEANER OPERATING INSTRUCTIONS...

  • Page 13: Machine Description And Scope Of Delivery

    Machine description and scope of delivery 3. MACHINE DESCRIPTION AND SCOPE OF DELIVERY Machine Description (see Fig. 1) 1 – Switch 2 – Handle 3 – Motor Top Cover 4 – Motor Body Coverr 5 – Power Cord 6 – Collecting Container 7 –...

  • Page 14: Important Safety Instructions

    Important safety instructions 4. IMPORTANT SAFETY INSTRUCTIONS WARNING! In order to prevent the risk of fire, electric shock and injury please adhere to the following instructions: ATTENTION! WARNING Inappropriate extension cables can be dangerous. Should an extension cable be used, both the socket and the plug shall be of a waterproof design and the coupled parts shall be kept dry and with no connection with earth.
  • Page 15 Important safety instructions Never vacuum-clean liquids, flammable or explosive substances such gasoline, and do not use the vacuum cleaner near such substances. When you need to reel the cord, hold its plug firmly in your hand. During cord reeling do not leave its plug to flutter freely in the air.
  • Page 16 Important safety instructions Do not disconnect the power cord from the wall socket by pulling the cord. Do not spray the product with water or any other liquid. Do not power water or any other liquids into the product. Do not submerge the product in water or any other liquid. Never use the product near a bathtub, wash basin or any other container filled with water.

  • Page 17: Safety Measures

    Safety measures 5. SAFETY MEASURES Vacuuming water When vacuuming water attach the special fl oor nozzle with rubber squeegees (see pic. 3) and take the dust bag out of the container. Under no circumstances should you use a carpet nozzle with a metal underside for wet vacuuming - risk of corrosion! If while vacuuming water, the container becomes fully fi lled, a safety fl oat will stop the suction and the noise level of the motor will increase dramatically.
  • Page 18 The description and introduction of vacuum cleaner The use of external socket Usage of the clips Open the lid, insert the plug of the power converter. Pull out the clips to open, conversely, to lock it. Usage of the handle The connection method for hose Hold the handle to lift up the...
  • Page 19 Instruction after use 1. Turn off the switch 3.Take off the hose and floor Pull out the plug and put “o” for turn off brush, clean the rest dust the wire in order “-”for turn on 6.Clean the tank and dry 5.Take off the filter, wash and 4.Take off the head as the with a soft cloth...

  • Page 20: Vacuum Cleaner Assembly

    Vacuum cleaner assembly | Operating instructions | Filter cleaning 6. VACUUM CLEANER ASSEMBLY (see pic. 2) Before assembly or disassembly of accessories individual parts always first disconnect the plug from mains socket. Prepare all accessory parts. Put the tube on the hose handle. Assemble the flexible hose according to the figure and insert its ending with a connector into the suction hole on vacuum cleaner upper side.
  • Page 21 Cleaning and maintenance Diagram of cloth Diagram of HEPA filter filter Before cleaning, please turn off the power and pull off the plug. Methods of cleaning: Use brush to clean the dust on the filter Use tap or shower wash the filter from inside to outside for better clean.
  • Page 22 Troubleshooting Problem Analysis reasons Solutions 1, Re-insert the plug into the 1, Check whether the plug has been socket tightly Not work inserted tightly 2, Check the socket is power on or off 2, Ensure the socket is power 1, Check whether the hose, tube was blocked 2, Check whether the filter was blocked...
  • Page 23 Technical specifications 9. TECHNICAL SPECIFICATIONS WET&DRY VACUUM CLEANER: Voltage / Frequency 230V/50Hz Input Power 1 400W Ash Vacuum-Cleaning up to 40°C Filter Cotton filter Metal Container Hose 2.5m Castors 4pcs Weight Power Supply Cord 4.3m Noise Level 80dB(A) User Manual – Language version only. FDU 2004-E...

  • Page 24: Disposal

    Disposal 10. DISPOSAL INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING. Put any used package material to the place determined by the municipality for waste disposal. DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste.

  • Page 25: Declaration Of Conformity

    Declaration of confirmity 11. DECLARATION OF CONFORMITY Product / Name: WET&DRY VACUUM CLEANER / FIELDMANN Type / Model: FDU 20 -E ....................230V/50Hz/1 400W The product complies with the following directives: and standards: EN 55014-1: 2006 + A1: 2009 + A2: 2011...
  • Page 27 FDU 2004-E...
