Code 3 CD3766 Installation And Operation Instruction page 2

SPECIFICATIONS:
Input Voltage
Work Current
Physical H x W x L
Ship Weight
Mounting:
Wire:
RED: Positive, Colors 1 & 3 (need to add 5A fuse)
WHITE: Positive, Colors 2 & 4 (need to add 5A fuse)
BLACK: Negative
BLUE: Pattern Select Negative
YELLOW: Synchronized Function
(Up to 8 units can be Synchronized)
Phase Operation:
Phase 1 (Ph1) flashes simultaneously with Ph1
Phase 2 (Ph2) flashes simultaneously with Ph2
Ph1 alternates with Ph2
(Up to 8 units can be Synchronized)
Apply BLUE TO BLACK wire:
-Less than 1 sec. for next pattern
-Between 1-3 sec for previous pattern
-Between 3-5 sec. for default
-More than 5 sec. for steady burn
12-24VDC
0.9A Max @ DC12V
0.5A Max @ DC24V
1.07 in x 1.48 in x 6.38 in
2.76 cm x 3.75 cm x 16.2 cm
0.463 lb (0.21 Kg)
Mounting:
SYCHRONIZATION ------------------------------------------------------------------------------------------- YELLOW
Pattern Select ---------------------------------------------------------------------------------------------- BLUE
Negative --------------------------------------------------------------------------------------- BLACK
Positive - LED Color 1 & Color 3 --------------------------------------------- WHITE
LED Color 1 & Color 3
Positive - LED Color 2 & Color 4 ---------------------------------------- RED
LED Color 2 & Color 4

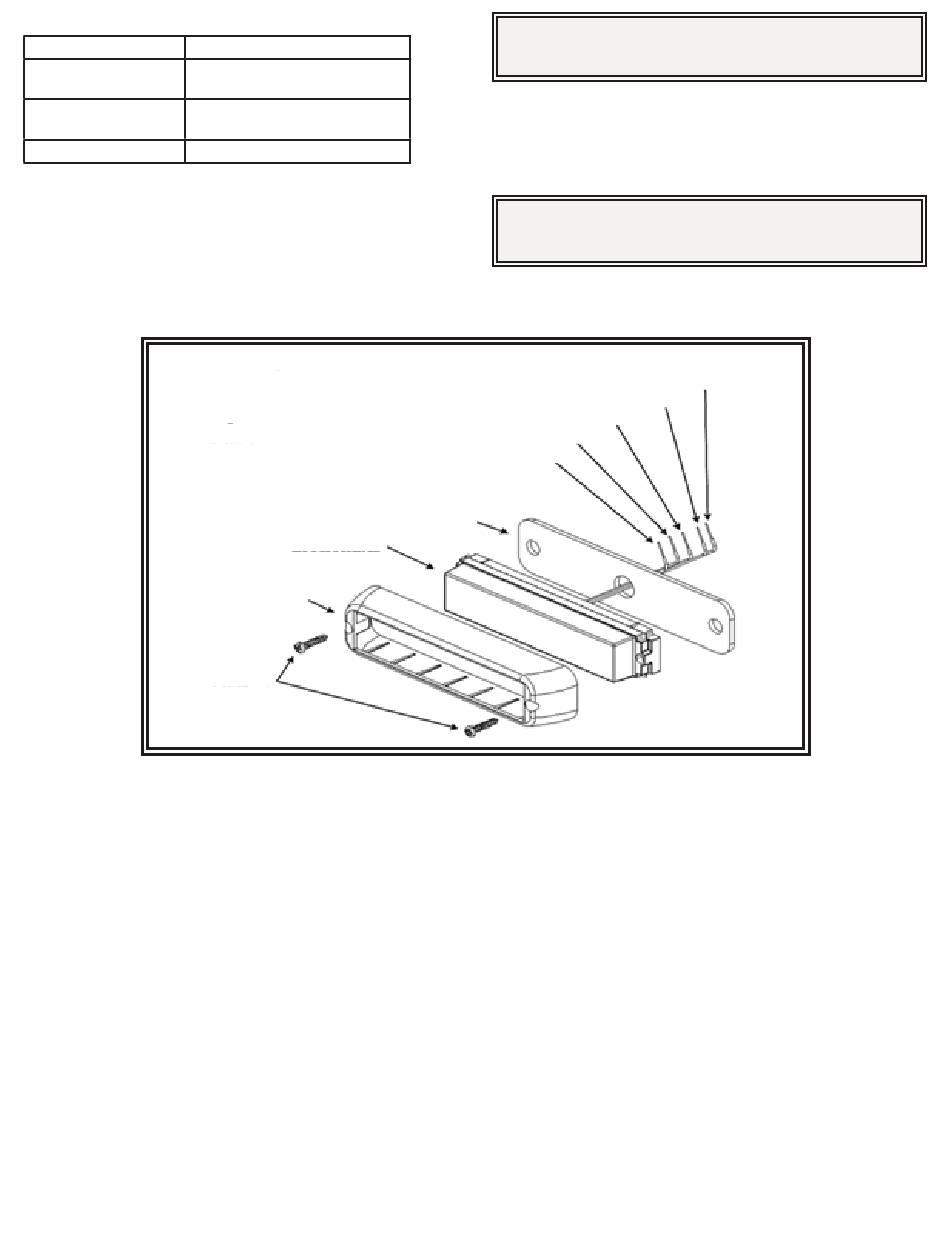

LIGHTHEAD
FLANGE
SCREWS
Important!
connected to its own separate, fused power point to assure its
continued operation should any other electrical accessory fail.
Caution:
area is free from any electrical wires, fuel lines, vehicle upholstery,
etc. that could be damaged
MOUNTING
GASKET
Product
CD3766AG
CD3766AW
CD3766BA
CD3766BW
CD3766RA
CD3766RB
CD3766RW
Operation Environment:
Ambient Temperature: -30 to 50°C
This unit is a safety device and it must be
When drilling into any vehicle surface, make sure the
RED
1&3 Colors
AMBER
AMBER
AMBER
BLUE
AMBER
RED
RED
WHITE
2&4 Colors
GREEN
WHITE
BLUE
WHITE
RED
BLUE
WHITE
Page 2 of 4
