Lifetime 60103 Assembly Instructions Manual

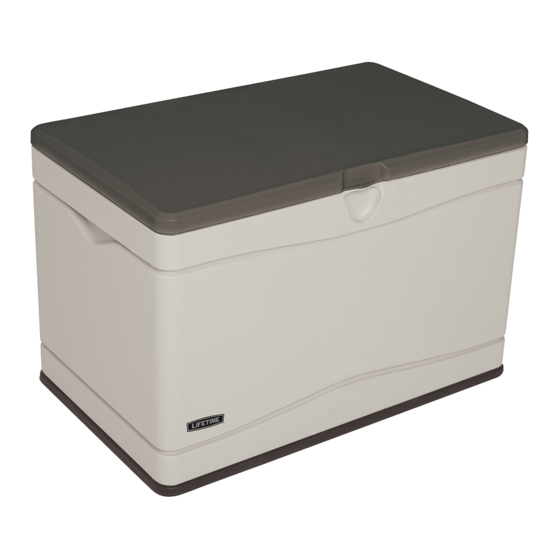

80-gallon (303 l) deck box
Hide thumbs Also See for 60103:
Table of Contents

Advertisement

Quick Links

Download this manual

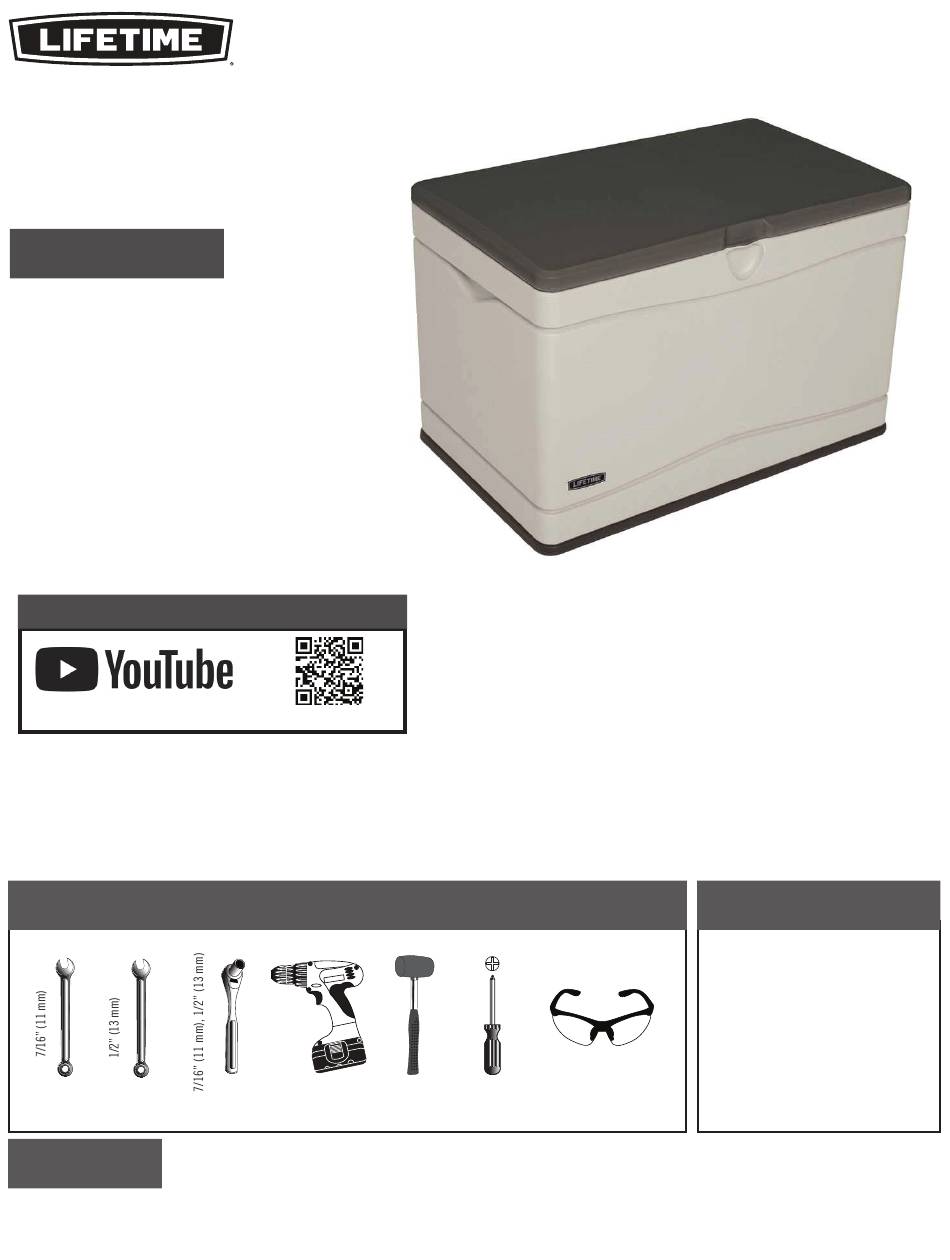

80-GALLON (303 L)
DECK BOX
MODEL 60103
BEFORE ASSEMBLY:
• Assemble on a level surface
• At least 2 people are recommended for setup
WATCH THE HOW-TO ON YOUTUBE
Scan the code, or visit go.lifetime.com/60103sbplaylist
YouTube
®
and the YouTube logo are trademarks of Google, LLC.
FOR DOMESTIC USE ONLY!
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
TOOLS REQUIRED
QUESTIONS?
Call: 1-800-225-3865
®
CONTACT LIFETIME
CUSTOMER SERVICE:
Live Chat: www.lifetime.com
(click on "LIVE CHAT" tab)
For Customer Service in mainland Europe:
E-mail: csinternational@lifetime.com
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
MODEL# AND PRODUCT ID
(you will need both when contacting us)
Model Number: Product ID:
60103
TABLE OF CONTENTS
Icon Legend...............................4
Warnings & Notices.....................5
Parts Identifi er............................6
Box Assembly.............................7
Lid Assembly............................13
Additional Warnings..................22
Cleaning & Care........................23
Registration...........................24
Warranty..............................25
