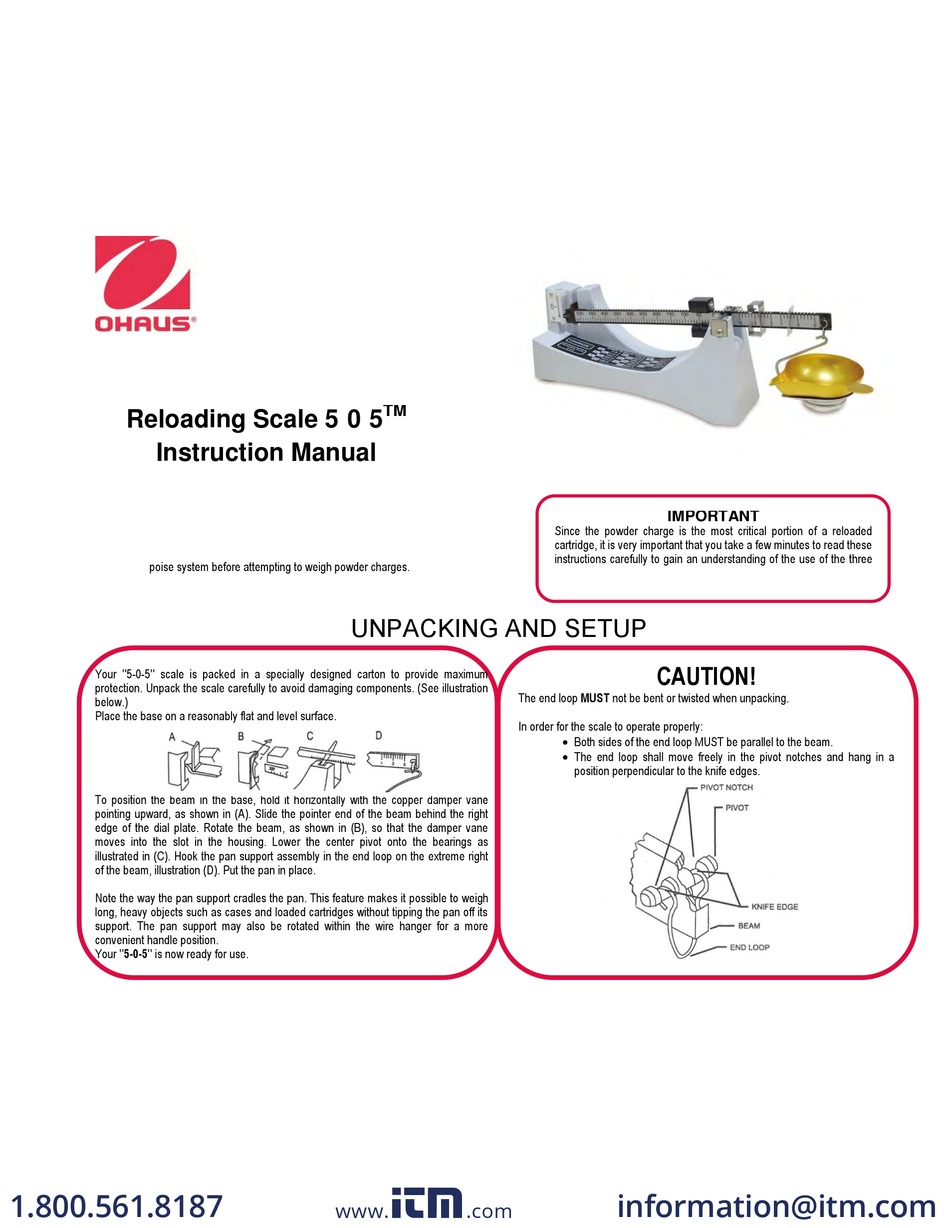

OHAUS Reloading Scale 5-0-5 Instruction Manual

Reloading Scale 5 0 5
Instruction Manual
poise system before attempting to weigh powder charges.
Your ʺ5-0-5ʺ scale is packed in a specially designed carton to provide maximum
protection. Unpack the scale carefully to avoid damaging components. (See illustration
below.)
Place the base on a reasonably flat and level surface.
To position the beam in the base, hold it horizontally with the copper damper vane
pointing upward, as shown in (A). Slide the pointer end of the beam behind the right
edge of the dial plate. Rotate the beam, as shown in (B), so that the damper vane
moves into the slot in the housing. Lower the center pivot onto the bearings as
illustrated in (C). Hook the pan support assembly in the end loop on the extreme right
of the beam, illustration (D). Put the pan in place.
Note the way the pan support cradles the pan. This feature makes it possible to weigh
long, heavy objects such as cases and loaded cartridges without tipping the pan off its
support. The pan support may also be rotated within the wire hanger for a more
convenient handle position.
Your ʺ5-0-5ʺ is now ready for use.
1.800.561.8187
Find Quality Products Online at:
TM

UNPACKING AND SETUP

GlobalTestSupply
www. www. .com
Important
Since the powder charge is the most critical portion of a reloaded
cartridge, it is very important that you take a few minutes to read these
instructions carefully to gain an understanding of the use of the three
CAUTION!
The end loop MUST not be bent or twisted when unpacking.
In order for the scale to operate properly:
 Both sides of the end loop MUST be parallel to the beam.
 The end loop shall move freely in the pivot notches and hang in a
position perpendicular to the knife edges.
