The Back Panel

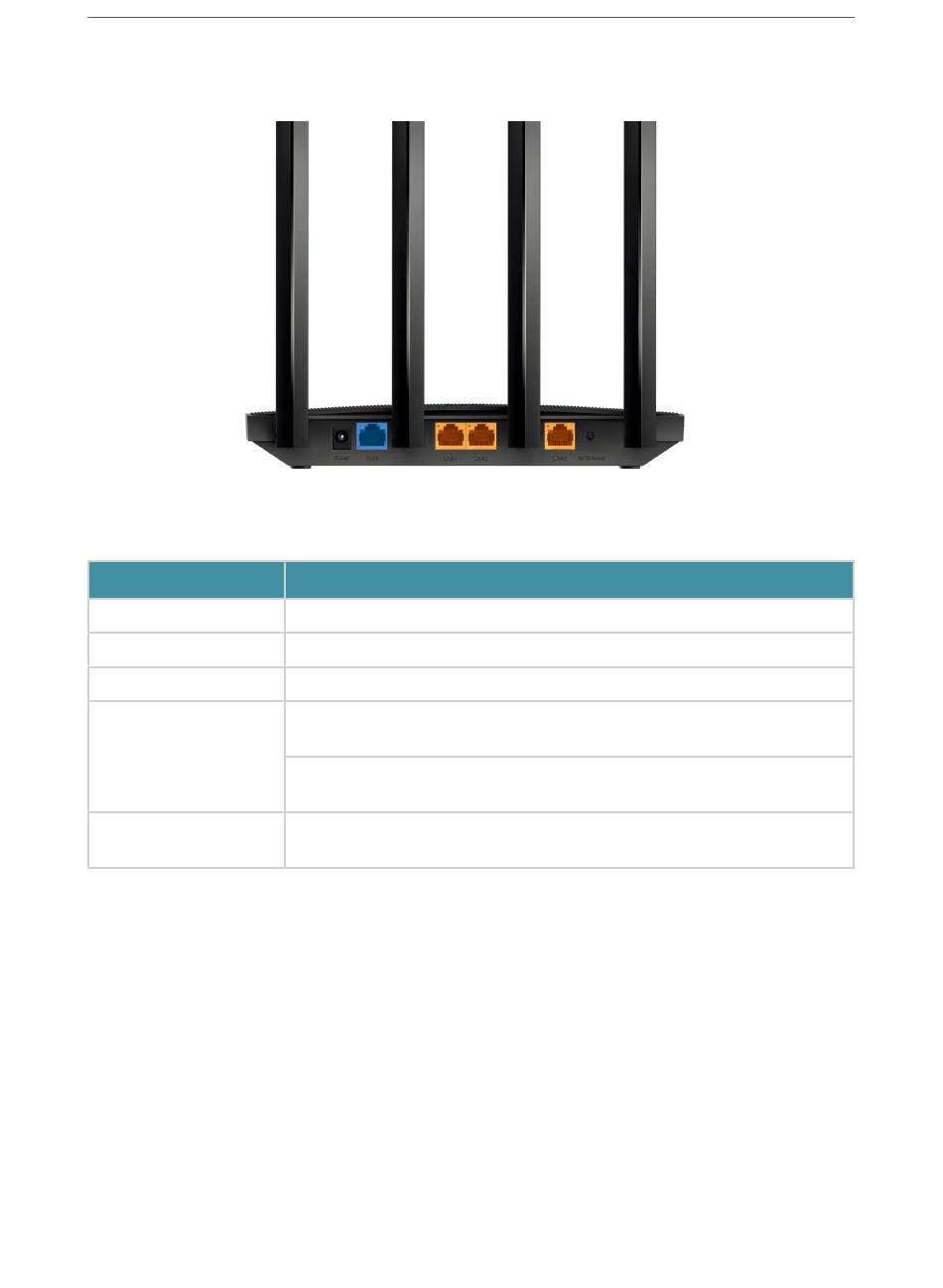

The following parts (view from right to left) are located on the back panel.
Button and Port Explanation
Item
Power Port
WAN Port
LAN Ports (1/2/3)
WPS/Reset Button
Antennas
For connecting the router to a power socket via the provided power adapter.
For connecting to a DSL/Cable modem, or an Ethernet jack.
For connecting your PC or other wired devices to the router.
Press the button for 1 second, and immediately press the WPS button on
your client to start the WPS process.
Press and hold the button for about 6 seconds until the Power LED blinks to
reset the router to its factory default settings.
Used for wireless operation and data transmit. Upright them for the best
Wi-Fi performance.
Get to Know About Your Router
Description
6
