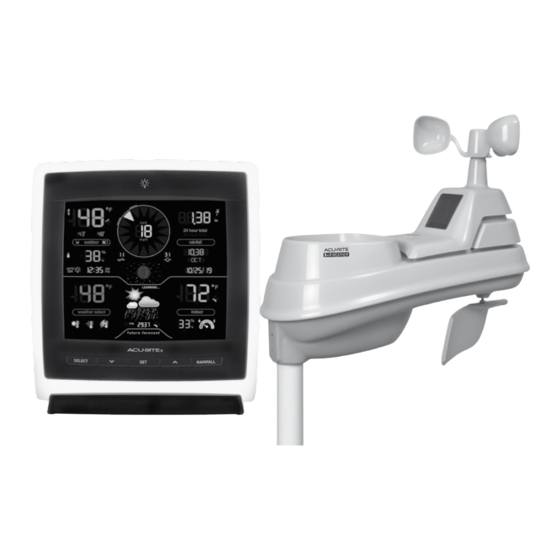

AcuRite 01518 Instruction Manual

Professional weather center
Hide thumbs
Table of Contents

Advertisement

Quick Links

CONTENTS
Package Contents .................. 2
Product Registration ............... 2
Setup .................................... 7
5-in-1 Sensor Setup ................ 7
Display Setup ........................ 8
Backlight Settings ................... 9
Placement Guidelines ............10
Questions?
(877) 221-1252 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Professional Weather Center
Rainfall Tracking ...................13
Troubleshooting ....................14
Care & Maintenance.............16
Calibration ...........................16
Specifications........................18
FCC Information ...................18
Customer Support .................19
Warranty..............................19
Contact Customer Support at
Instruction Manual
model 01518

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 01518 and is the answer not in the manual?

Questions and answers

Garry Endres
February 24, 2025

How to change Celsius to Fahrenheit? How to change Barometer units?

0

Related Manuals for AcuRite 01518

Summary of Contents for AcuRite 01518

  • Page 1: Table Of Contents

    Display Setup ......8 FCC Information ....18 Set the Time, Date & Units ..9 Customer Support ....19 Backlight Settings ....9 Warranty......19 Placement Guidelines ....10 Questions? Contact Customer Support at (877) 221-1252 or visit www.AcuRite.com. SAVE THIS MANUAL FOR FUTURE REFERENCE.

  • Page 2: Unpacking Instructions

    Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference. Unpacking Instructions Remove the protective film that is applied to the LCD screen prior to using this product.

  • Page 3: Features & Benefits: 5-In-1

    Features & Benefits 5-in-1 SENSOR 5. Temperature & Humidity Sensors 1. Rainfall Collector Funnel (internal) 2. Solar Cell Panel 6. Mounting Point Converts sunlight into power to run 7. Wind Speed Anemometer internal aspirating fan. Internal Aspirating Fan 8. Wind Direction Vane (not shown) 9.

  • Page 4: Features & Benefit: Display

    Features & Benefits Display 30 29 28 27 26 25 24 23 9 10...
  • Page 5 DISPLAY FRONT 1. Current Outdoor Temperature 14. Current Indoor Humidity Arrow icon indicates direction the Arrow icon indicates the direction the temperature is trending. humidity is trending. 2. Outdoor Temperature Low/High 15. Humidity Level Indicator Records Indicates a high or low indoor Lowest and highest outdoor humidity level.
  • Page 6 DISPLAY BACK 1. Integrated Hang Hole 6. A-B-C Switch For easy wall mounting. ID code that must match 5-in-1 sensor’s A-B-C switch to ensure 2. Plug-in for Power Adapter units synchronize. 3. Back-up Battery Compartment 7. Power Adapter 4. Removable Tabletop Stand 8.

  • Page 7: Setup

    2. Insert 4 x AA batteries into the battery compartment, as Batteries MUST be installed for shown. Follow the polarity this product to operate. AcuRite (+/-) diagram in the battery recommends high quality alkaline compartment. or lithium batteries for the best 3.

  • Page 8: Display Setup

    Display Setup AcuRite recommends high quality alkaline batteries for the best product performance. Heavy duty or rechargeable batteries are not recommended. Plug Power Adapter into Set the A-B-C Switch Electrical Outlet The A-B-C switch is located inside the battery compartment. It can be set to A, B or C.

  • Page 9: Set The Time, Date & Units

    Set the Time, Date & Units Press the “SET” button, located on the front of the display, to enter SET MODE. Once in set mode, the preference you are currently setting will blink on the display. To adjust the currently selected (flashing) item, press and release the “ “...

  • Page 10: Placement Guidelines

    Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display and the sensor are critical to the accuracy and performance of this product. Display Placement Place the display in a dry area free of dirt and dust. To ensure accurate temperature measurement, place out of direct sunlight and away from heat sources or vents.

  • Page 11: 5-In-1 Sensor Installation

    5-in-1 Sensor Installation Guidelines INSTALLATION HEIGHT Mount the sensor at a minimum height of 5 feet (1.5 meters) off the ground, in an open area. Higher is better for wind measurements - The National Weather Service recommends 33 feet (10 meters) high! MOUNTING OPTIONS The included mounting bracket it designed to screw directly 4.5cm x 9.5cm)

  • Page 12: Using The Weather Center

    Weather Forecast AcuRite’s patented Self-Calibrating Forecasting provides your personal forecast of weather conditions for the next 12 to 24 hours by collecting data from the sensor in your backyard. It generates a forecast with pinpoint accuracy - personalized for your exact location.

  • Page 13: Rainfall Tracking

    Rainfall Tracking This weather station features enhanced tracking of historical rainfall data. Rain accumulation data is recorded for today, over all-time, by year, by month, and by rainfall event. Press the “RAINFALL” button to review rainfall records. Records are shown in the following order: PREVIOUS RAINFALL #1* PREVIOUS RAINFALL #2*...

  • Page 14: Troubleshooting

    Troubleshooting Problem Possible Solution • Relocate the display and/or the 5-in-1 sensor. The units must be within 330 ft (100 m) of each other. • Make sure both units are placed at least 3 feet (.9 m) away from electronics that may interfere with the wireless communication (such as TVs, microwaves, computers, etc).
  • Page 15 “CLEAR RECORD /RESET” button, located on the back of the display. Date and time will need to be entered after a reset. If your AcuRite product does not operate properly after trying the troubleshooting steps, visit www.AcuRite.com or call (877) 221-1252 for assistance.

  • Page 16: Care & Maintenance

    Care & Maintenance Display Care Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air. 5-in-1 Sensor Care Clean the Sensor Clean with a soft damp cloth.
  • Page 17 OUTDOOR TEMPERATURE OUTDOOR HUMIDITY INDOOR TEMPERATURE INDOOR HUMIDITY BAROMETRIC PRESSURE (must be set to MANUAL mode to calibrate)* *To change from AUTO to MANUAL pressure mode and vice versa, press AND HOLD the “ SET ” button for at least 10 seconds. The display indicates the current pressure mode selected,“AUTO”...

  • Page 18: Specifications

    • To adjust the rainfall reading by 2% turn both screws 1/8 of a turn. • To adjust the rainfall reading by 4% turn both screws 1/4 of a turn. • To adjust the rainfall reading by 8% turn both screws 1/2 of a turn. Watch the video at: www.acurite.com/5in1 Specifications TEMPERATURE RANGE Outdoor: -40ºF to 158ºF;...
  • Page 20 Plan your day with confidence ™ www.AcuRite.com ©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copy- rights are the property of their respective owners. AcuRite uses patented technology.
