CONTENTS
Unpacking Instructions ........... 2
Package Contents .................. 2
Product Registration ............... 2
Features & Benefits: 5-in-1....... 3
Setup .................................... 8
5-in-1 Sensor Setup ................ 8
Display Setup ........................ 9
Placement Guidelines ............10
Questions?
(877) 221-1252 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.

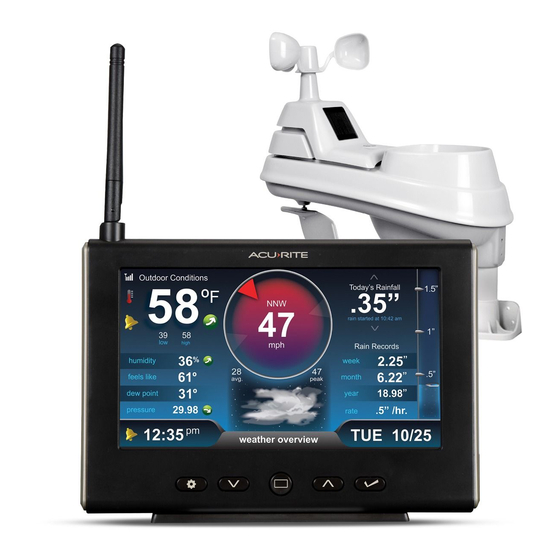

High Resolution Weather Station
Contact Customer Support at
Instruction Manual
Using the Weather Station.....12
Expand the System................14
Troubleshooting ....................15
Care & Maintenance.............16
Calibration ...........................17
Specifications........................18
FCC Information ...................18
Customer Support .................19
Warranty..............................19
model 01535
Records
47
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AcuRite 01535
Summary of Contents for AcuRite 01535
-
Page 1: Table Of Contents
Calibration ......17 Setup ........8 Specifications......18 FCC Information ....18 5-in-1 Sensor Setup ....8 Display Setup ......9 Customer Support ....19 Placement Guidelines ....10 Warranty......19 Questions? Contact Customer Support at (877) 221-1252 or visit www.AcuRite.com. SAVE THIS MANUAL FOR FUTURE REFERENCE. -
Page 2: Unpacking Instructions
Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference. Unpacking Instructions Remove the protective film that is applied to the LED screen prior to using this product. -
Page 3: Features & Benefits: 5-In-1
Features & Benefits 5-in-1 SENSOR 5. Temperature & Humidity Sensors 1. Rainfall Collector Funnel (internal) 2. Solar Cell Panel 6. Mounting Point Converts sunlight into power to run Wind Speed Anemometer internal aspirating fan. Internal Aspirating Fan 8. Wind Direction Vane (not shown) 9. -
Page 4: Features & Benefits: Display
Features & Benefits Weather Overview Dashboard 22 21 18 14 17 14 13 Records... - Page 6 Features & Benefits Indoor Overview Dashboard 1. Current Indoor Temperature 4. Current Indoor Humidity Arrow indicates direction temperature Arrow indicates direction humidity is trending. is trending. 2. Daily High & Low 5. Humidity Level Indicator Temperature Records Indicates a high, low or ideal Highest and lowest temperature humidity comfort level.
- Page 7 Features & Benefits Display Records BACK OF DISPLAY Button For setup preferences and cycling 1. Plug-in for Power Adapter through messages on the Weather Overview dashboard. 2. Display Stand Button 3. Mounting Bracket Press to view a different dashboard. For easy wall mounting. Button FRONT OF DISPLAY For setup preferences and cycling...
-
Page 8: Setup
1. Slide off the battery compartment cover. Batteries MUST be installed for 2. Insert 4 x AA batteries into the this product to operate. AcuRite battery compartment, as recommends high quality alkaline shown. Follow the polarity or lithium batteries for the best (+/-) diagram in the battery product performance. -
Page 9: Display Setup
Display Setup Plug Power Adapter into Electrical Outlet Settings After powering on for the first time, the display will automatically enter setup mode. Follow the on-screen instructions to set up the display. To adjust the currently selected item, press and release the “ ”... -
Page 10: Placement Guidelines
Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display and the sensor are critical to the accuracy and performance of this product. Display Placement Place the display in a dry area free of dirt and dust. Display stands upright for tabletop use and is wall-mountable. - Page 11 5-in-1 Sensor Installation Guidelines INSTALLATION HEIGHT Mount the sensor at a minimum height of 5 feet (1.5 meters) off the ground, in an open area. Higher is better for wind measurements - the National Weather Service recommends 33 feet (10 meters) high! MOUNTING OPTIONS The included mounting bracket is designed to screw directly onto wooden posts or surfaces that are 2”x 4”...
-
Page 12: Using The Weather Station
OPERATION Using the Weather Station Menu Records Sensor Alarms Units Setup Calibrate Display Factory Reset press to exit menu Navigate to the main menu at any time by pressing the “ ” button. From the main menu, you can view records, set alarms, setup an additional sensor and more. 1. - Page 13 Weather Overview Dashboard Weather Forecast AcuRite’s patented Self-Calibrating Forecasting provides your personal forecast of weather conditions for the next 12 to 24 hours by collecting data from a sensor in your backyard. It generates a forecast with pinpoint accuracy - personalized for your exact location.
-
Page 14: Expand The System
AcuRite Lightning Sensor (optional; sold separately). Compatible Lightning Sensor available at: www.AcuRite.com Messages This display shows real-time weather information and alert messages on the Weather Dashboard. Manually cycle through all available messages by pressing and releasing the “... -
Page 15: Troubleshooting
Troubleshooting Problem Possible Solution • Relocate the display and/or the 5-in-1 sensor. The units must be within 330 ft (100 m) of each other. • Make sure both units are placed at least 3 feet (.9 m) away from electronics that may interfere with the wireless communication (such as TVs, microwaves, computers, etc). -
Page 16: Care & Maintenance
• Check that the power adapter is plugged into the not working display and an electrical outlet. If your AcuRite product does not operate properly after trying the troubleshooting steps, visit www.AcuRite.com or call (877) 221-1252 for assistance. Care & Maintenance Display Care Clean with a soft, damp cloth. -
Page 17: Calibration
• To adjust the rainfall reading by 2% turn both screws 1/8 of a turn. • To adjust the rainfall reading by 4% turn both screws 1/4 of a turn. • To adjust the rainfall reading by 8% turn both screws 1/2 of a turn. Watch the video at www.acurite.com/5in1... -
Page 18: Specifications
Specifications TEMPERATURE RANGE Outdoor: -40ºF to 158ºF; -40ºC to 70ºC Indoor: 32ºF to 122ºF; 0ºC to 50ºC HUMIDITY RANGE Outdoor: 1% to 99% Indoor: 1% to 99% WIND SPEED 0 to 99 mph; 0 to 159 km/h WIND DIRECTION 16 points INDICATORS RAINFALL MEASUREMENT 0.01 inches (0.25 mm) and up... - Page 20 Plan your day with confidence ™ www.AcuRite.com ©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copy- rights are the property of their respective owners. AcuRite uses patented technology.
Need help?
Do you have a question about the 01535 and is the answer not in the manual?
Questions and answers

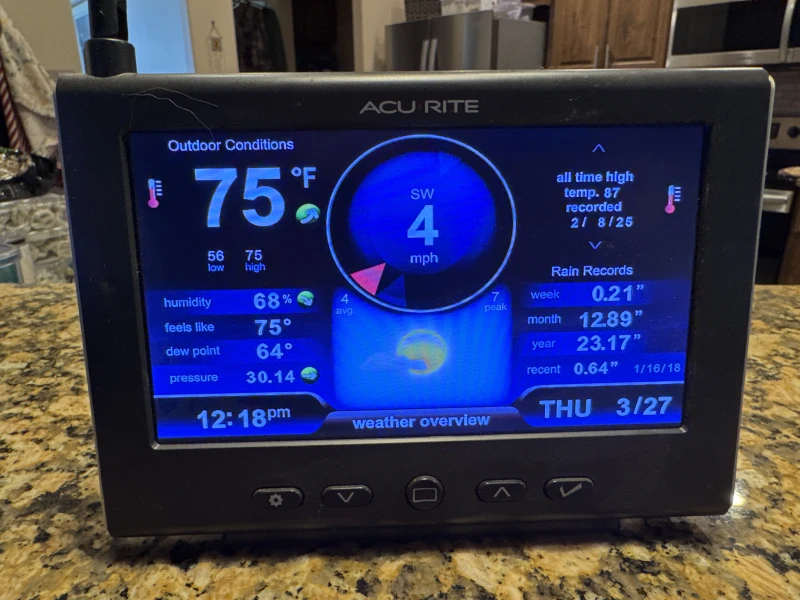

time is incorrect. display is showing 7:00AM, correct time is.7:300AM
To fix the incorrect time display on the AcuRite 01535:
1. Press the “0” button to enter setup mode.
2. Navigate to “Setup” using the arrow buttons.
3. Press and release the “V” button to select.
4. Set the correct TIME ZONE (PST, MST, CST, EST, AST, HAST, NST, AKST).
5. Set AUTO DST to YES if your area observes Daylight Saving Time.
6. Set CLOCK HOUR and CLOCK MINUTE.
7. Exit setup mode.
This should correct the time display.
This answer is automatically generated
I cannot get the display to show rainfall for 24 hours
To display 24-hour rainfall on the AcuRite 01535, view the Weather Overview Dashboard. It shows rainfall data such as most recent rainfall total or current rainfall rate from the 5-in-1 sensor.
This answer is automatically generated
