Summary of Contents for Salora 55UHS3500

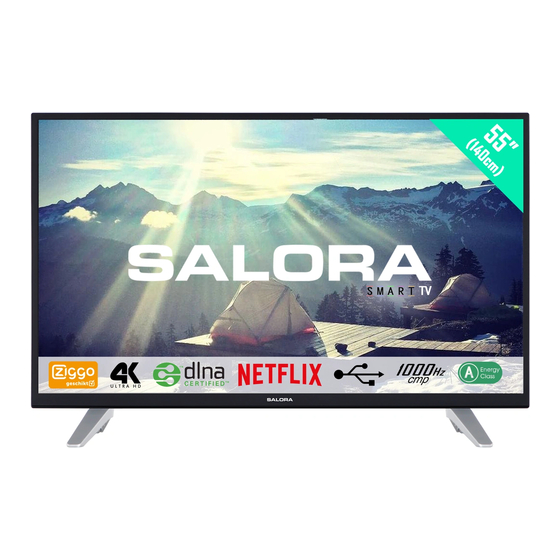

- Page 1 GEBRUIKSAANWIJZING BEDIENUNGSANLEITUNG OPERATING INSTRUCTIONS MODE D'EMPLOI 55UHS3500 KLEURENTELEVISIE MET AFSTANDSBEDIENING FARBFERNSEHGERÄT MIT FERNBEDIENUNG COLOUR TELEVISION WITH REMOTE CONTROL TELEVISEUR COULEUR A TELECOMMANDE...
- Page 2 50363468...
-
Page 3: Table Of Contents
Contents Safety Information ..........67 Markings on the Product........67 Environmental Information........68 Features ...............69 Accessories Included..........69 Standby Notifications ..........69 TV Control & Operation ........70 Inserting the Batteries into the Remote ....70 Connect Power ............70 Antenna Connection ..........70 Notification ............71 Specification ............71 Remote Control ............72 Connections............73 Switching On/Off ...........74 First Time Installation..........74... -
Page 4: Safety Information
• Do not place any heat sources such as electric Safety Information heaters, radiators, etc. near the TV set. • Do not place the TV on the floor and inclined CAUTION surfaces. • To avoid danger of suffocation, keep plastic bags RISK OF ELECTRIC SHOCK DO NOT OPEN out of the reach of the babies, children and domestic... -
Page 5: Environmental Information
WARNING Do not ingest the battery, Chemical Burn Hazard WALL MOUNTING WARNINGS This product or the accessories supplied with the • Read the instructions before mounting your TV product may contain a coin/button cell battery. If the on the wall. coin/button cell battery is swallowed, it can cause •... -
Page 6: Features
Note: Screen Off option is not available if the Mode is set Standby Notifications to Game. If the TV does not receive any input signal (e.g. from When the TV is not in use, please switch off or aerial or HDMI source) for 5 minutes, it will go disconnect the TV from the mains plug. -
Page 7: Tv Control & Operation
TV Control & Operation Inserting the Batteries into the Remote Remove the back cover to reveal the battery compartment. Insert two size AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. -
Page 8: Notification
Notification Specification TRADEMARK ACKNOWLEDGMENT PAL BG/I/DK/LL’ TV Broadcasting The terms HDMI and High-Definition Multimedia SECAM BG/DK Interface, and the HDMI Logo are trademarks or VHF (BAND I/III) - UHF registered trademarks of HDMI Licensing LLC in the Receiving Channels (BAND U) - HYPERBAND United States and other countries. -
Page 9: Remote Control
Remote Control Standby: Switches On / Off the TV TV: Displays channel list / Switches to TV Source Volume +/- Menu: Displays TV menu OK: Confirms user selections, holds the page (in TXT mode), views channel list (DTV mode) Back/Return: Returns to previous screen, opens index page (in TXT mode) Internet: Opens the portal page, where you can reach many web based applications... -
Page 10: Connections
Connections Connector Type Cables Device NOTE: When connecting a device via the YPbPr or Back Scart AV input, you must use the Connection connection cables to enable (back) connection. See the illustrations on the left side. | To enable YPBPR PC/YPbPr audio, you will need YPbPr Video to use the Back Audio inputs... -
Page 11: Switching On/Off
channels of it will be listed on the top of the Channel Switching On/Off List. When finished, press OK to continue. To Switch the TV On You can activate Store Mode option at this point. Connect the power cord to a power source such as a This option will configure your TV’s settings for store wall socket (220-240V AC, 50 Hz). -
Page 12: Media Browser Menu
You can use USB hubs with your TV’s USB inputs. To terminate this operation and control the TV via External power supplied USB hubs are recommended the remote again, press Quick Menu button on the in such a case. remote, highlight the CEC RC Passthrough and set as Off by pressing Left or Right button. -
Page 13: Tv Menu Contents
TV Menu Contents System - Picture Menu Contents You can change the picture mode to suit your preference or requirements. Picture mode can Mode be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural. Contrast Adjusts the light and dark values on the screen. Brightness Adjusts the brightness values on the screen. - Page 14 System - Sound Menu Contents Volume Adjusts the volume level. Equalizer Selects the equalizer mode. Custom settings can be made only when in User mode. Balance Adjusts whether the sound comes from the left or right speaker. Sets headphone volume. Headphone Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
- Page 15 System - Settings Menu Contents Conditional Access Controls conditional access modules when available. Language You may set a different language depending on the broadcaster and the country. Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options.
- Page 16 This setting configures the power up mode preference. Last State and Standby Power Up Mode options are available. Virtual Remote Enable or disable the virtual remote feature. With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
-
Page 17: General Tv Operation
Internet Lock: If this option is set to ON, the open General TV Operation browser application in the portal will be disabled. Set Using the Channel List to OFF to release the application again. The TV sorts all stored stations in the Channel List. Set PIN: Defines a new PIN number. -
Page 18: Teletext Services
Now/Next Schedule Note: Do not unplug the power cord while led is blinking during the reboot process. If the TV fails to come on after the Navigate (Directional buttons): Press the upgrade, unplug, wait for two minutes then plug it back in. Directional buttons to navigate through the channels Troubleshooting &... -
Page 19: Pc Input Typical Display Modes
PC Input Typical Display Modes AV and HDMI Signal Compatibility The following table is an illustration of some of the Source Supported Signals Available typical video display modes. Your TV may not support all resolutions. SECAM Index Resolution Frequency NTSC4.43 640x350 85Hz (SCART) -
Page 20: Supported Video File Formats For Usb Mode
Supported Video File Formats for USB Mode Video Codec Resolution Bit Rate Container MPEG program stream (.DAT, .VOB, .MPG, .MPEG), MPEG MPEG1/2 transport stream (.ts, .trp, .tp), MP4 (.mp4, .mov), 3GPP (.3gpp, .3gp), AVI (.avi), MKV (.mkv), ASF (.asf) MPEG program stream (.MPG, .MPEG), MP4 (.mp4, .mov), 1080Px2@30fps, MPEG4 40Mbps... -
Page 21: Supported Audio File Formats For Usb Mode
Supported Audio File Formats for USB Mode Audio Codec Sample rate Bit Rate Container MP3 (.mp3), AVI (.avi), ASF (.asf), Matroska (.mkv, .mka), 32Kbps ~ MPEG1/2 Layer1 16KHz ~ 48KHz MPEG transport stream (.ts, .trp, .tp), MPEG program stream 448Kbps (.DAT, .VOB, .MPG, .MPEG), WAV (.wav) MP3 (.mp3), AVI (.avi), ASF (.asf), Matroska (.mkv, .mka), 8Kbps ~... -
Page 22: Supported Dvi Resolutions
Supported DVI Resolutions When connecting devices to your TV’s connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information. 56Hz 60Hz 66Hz 70Hz 72Hz 75Hz þ þ 640x480 þ þ þ... -
Page 23: Connectivity
Connectivity network wall socket Wired Connectivity To Connect to a Wired Network • You must have a modem/router connected to an active broadband connection. • Ensure that Nero Media Home software is installed to your PC (for Audio Video Sharing function). See “Nero Media Home Installation”... - Page 24 Configuring Wireless Device Settings Broadband ISP To enable Wi-Fi features, plug in the Wi-Fi dongle to one connection of the USB ports. Open the Network/Internet Settings menu and select Network Type as Wireless Device to start connection process. Wireless LAN The TV will scan the wireless networks automatically.
-
Page 25: Connectivity Troubleshooting
Invalid Domain Connectivity Troubleshooting Ensure that you have already logged on to your PC Wireless Network Not Available with an authorized username/password and also • Ensure that any firewalls of your network allow the ensure that your domain is active, prior to sharing TV wireless connection. -
Page 26: Nero Mediahome Installation
Refer to the Media Browser menu section for further 10. A shortcut is now placed on your desktop. information on file playback. Congratulations! You successfully installed Nero Subtitle files do not work if you watch videos from MediaHome on your PC. your network through Audio Video Sharing feature. -
Page 27: Internet Browser
All sites on the internet might not be supportted. Internet Browser According to the site; content problems may occur. To use the internet browser, enter the portal first. Then In some circumstances video contents might not be launch the Internet application on the portal. able to be played. -
Page 28: Hbbtv System
HBBTV System HbbTV (Hybrid Broadcast Broadband TV) is a new industry standard that seamlessly combines TV services delivered via broadcast with services delivered via broadband and also enables access to Internet only services for consumers using connected TVs and set-top boxes. Services delivered through HbbTV include traditional broadcast TV channels, catch-up services, video-on-demand, EPG, interactive advertising,... -
Page 29: Smart Center
/ refreshing the EPG information may take a while Smart Center depending on your network and web service quality. Smart Center is a mobile application running on iOS Note: Internet connection is required for WEB based EPG and Android platforms. With your tablet or phone, informations. - Page 30 FollowMe TV Feature (if available) Requirements Tap on the FOLLOW ME TV widget located at the 1. Smart TV bottom left of the screen of your mobile device to 2. Network connection change the layout for FollowMe TV feature. 3. Mobile Device based on Android or iOS Tap the play icon to start streaming of the content from platform (Android OS 4.0 or higher;...
