Summary of Contents for Salora 43UHL2600

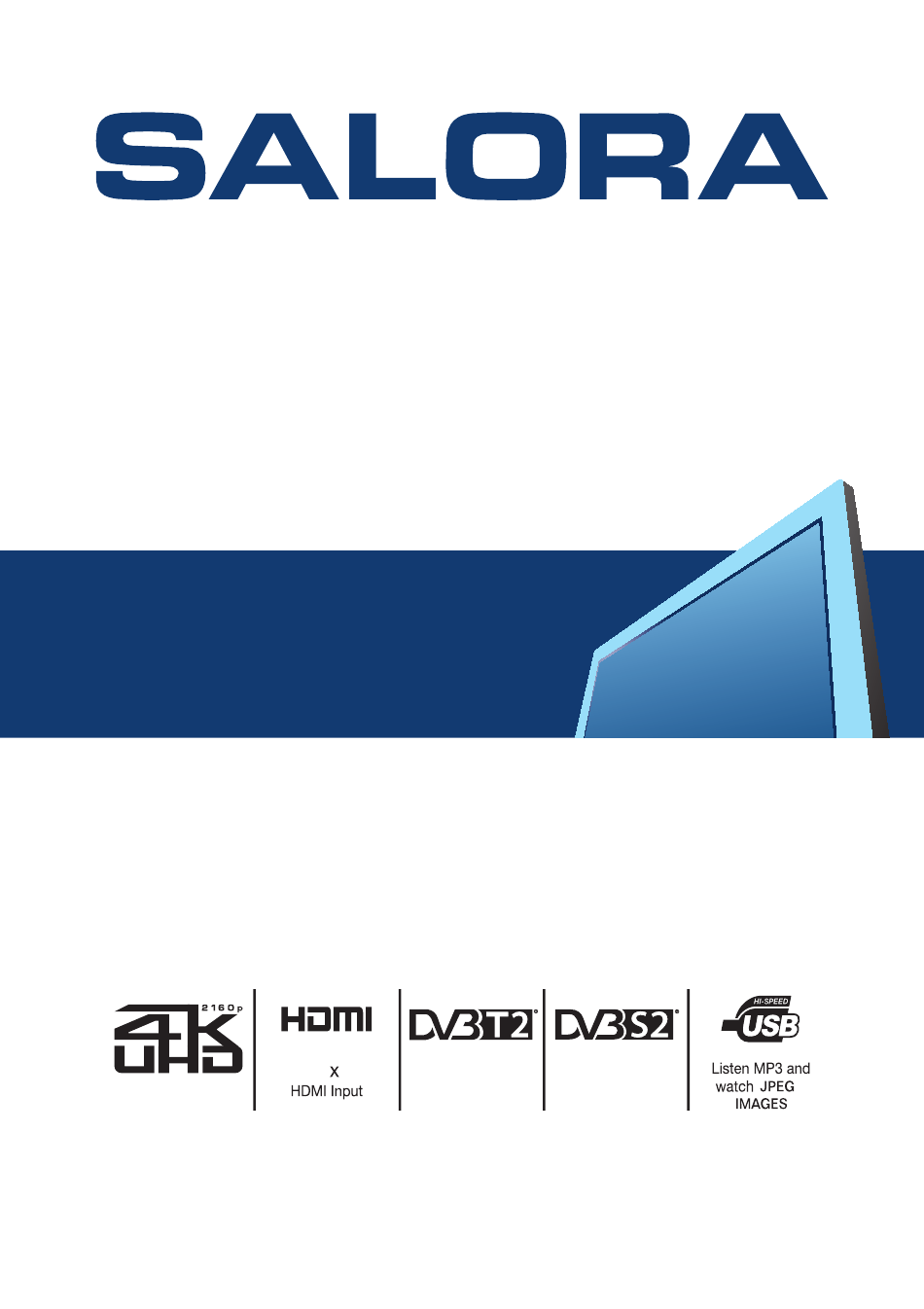

- Page 1 43UHL2600 49UHL2600 55UHL2600 USER MANUAL Receive digital Receive digital satellite TV satellite TV Full compatible with Ultra HD format standard DVB-T2 standard DVB-S2 IMPORTANT Please read this manual carefully before installing and operating the TV. Keep this manual handy for further reference...
-
Page 3: Table Of Contents
CONTENTS ......... . . Important Safety Instructions 02 03 What is included in the box... - Page 4 IMPORTANT SAFETY INSTRUCTIONS Please read these instructions All the safety and operating instructions should be read before the appliance is operated. Warnings • • the television. Dispose of this television and any components including batteries in an environmentally friendly manner. If in doubt, please contact your local authority for details of recycling.
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please read these instructions All the safety and operating instructions should be read before the appliance is operated. Important Information Regarding Use of Video Games Computers Captions or Other Fixed Image Displays panel. type of irreversible LCD LED panel deterioration can be limited by observing the following steps 1 Reduce the brightness contrast setting to a minimum acceptable viewing level 3 Turn the power off when not in actual use Examples of images that you need to watch out for are as follows this is not an exhaustive list... -
Page 6: What Is Included In The Box
WHAT IS INCLUDED IN THE BOX Accessories Included with this TV are the following accessories: 1 x TV 1 x Remote Control 1 x Instruction Manual 43 ST4x14MM Fixing Screws 49 55 M4x20MM Fixing Screws 2 x Stands Please save your packaging as you will need this in the event of warranty service repair or support We are unable to carry out warranty service if you are unable to package it correctly The safest way to package your item in the event of warranty service repair is in it s original box packaging... -
Page 7: Attaching Detaching The Stand And Wall Mounting
ATTACHING DETACHING THE STAND Attaching the Stand t and tighten the screws. 43'' 49'' 55'' Detaching the Stand To remove the screws in the circled area then the stand will come off. Wall mounting the TV WARNING: Only attempt to wall mount your TV if you are competent to do so If you are in any doubt seek professional assistance This television requires a VESA 200x200. -
Page 8: Getting Started First Time Installation
GETTING STARTED First Time Installation 1 Connect the TV to the TV Aerial wall socket 2 Connect the power cable to the wall socket Fig A Fig B 3 Insert 2 x AAA batteries not supplied into 4 Switch on the television using the red power the Remote control Take care to observe button on the remote control or on the side of correct polarity. -
Page 9: Tv Buttons And Input Source Menu
TV BUTTONS & SOURCE MENU Volume up down and menu left right Channel up down and menu up down Displays the input source menu. | Displays Menu OSD Standby Power On Off Red illuminates in standby mode green when your TV is switched on Infrared sensor for the remote control. -
Page 10: Remote Control
REMOTE CONTROL POWER Switch on TV when in standby or vice versa. MUTE Mute the sound or vice versa. NUMBER BUTTONS 0 9 to select a TV channel directly Display Favourites List. To return to the previous channel viewed. P MODE Scrolls through picture mode options S MODE Scrolls through sound mode options... -
Page 11: Remote Control Preparation
REMOTE CONTROL PREPARATION BATTERY INSTALLATION Iinstall the batteries as the following pictures. Be sure + and – terminals are positioned as indicated in the battery compartment. SERVICE LIFE OF BATTERIES The batteries normally last for one year although this depends on how often the remote control is used If the remote control fails to work even when it is operated near the player replace the batteries Use two size AAA dry batteries NOTE... -
Page 12: Connections
COAX Out Coax Audio Output CONNECTIONS SCART Input SCART Earphone Out Earphone Out HDMI HDMI Input RF Input tv antenna USB Input Connector for satellite dish Connect to the device's composite terminal YPbPr(MINI) AV(MINI) External AV signal input The card reader input CI CI Card is not included CI(CI SLOT) (commoninterface)this requires CAM... - Page 13 Option 2 Connecting a DVD Player Recorder Video Recorder or Cable,or PC Tv’s Input Source should be set to SCART ANT In DVD or VCR SCART COAX Earphone SCART COAX OUT 3.5mm jack earphone output Earphone connection : 3 5mm jack is not included in the box enables you to enjoy better audio with minimal loss of quality Use theHEADPHONES output of your TV set to listen the audio of the unit through your own stereo headphones not included When you connect headphones to the unit the main speakers will be muted Notes Hearing experts advise against exposure to continuous extended play at loud volume levels while using...
-
Page 14: Tv Menu Operation
Setting Menu 【 】 【 】 Press ◄ ► button to select Setting Press ENTER to enter setting. Quick Settings 【 】 【 】 Press ◄ ► button to select the Quick Settings Audio Track Select the program audio language. Subtitle Track Select the program subtitle language. - Page 15 Reduce screen brightness, improved contrast for energy saving. Standard The default mode, to make users experience high-quality images under normal light. User User-defined picture settings Mild Image colors more gentle to protect eyes. Dynamic This mode is more suitable for watching dynamic program Vivid This mode enhance contrast and sharpness to make picture more vivid.
-
Page 16: Sound Menu
Sound Menu Sound 1. Press button to select the option that you want to adjust in the Sound menu. ▼ ▲ 2. Press Enter button to adjust. 3. After finishing your adjustment, Press Enter button to save and return to the previous menu. Sound Mode 【... -
Page 17: Channnel Menu
Balance Adjust the left and right channel output balance. 【 】/【 】 【 】/【 】 Press button to select Balance , then press ◄ ► button to adjust. ▼ ▲ Audio Description Select ONOFF. AD Volume Set the volume of audio description. Channel Menu Channel-S2 Select the DVB-S in Source . - Page 18 Channel Type 【 】/【 】 【 】/【 】 Press button to select Channel Type , then press ◄ ► button to select. ▼ ▲ ptional : Free/Free+Scamble/Scamble Service Type 【 】/【 】 【 】/【 】 Press button to select Service Type , then press ◄...
- Page 19 Manual Press button to select Manual , then press Enter/ ► button to enter. ▼ ▲ Signal Information Press button to select Signal Information, press the Enter button to view the detail ▼ ▲ information about the signal. Only available when there is signal in DTV. Set CAM PIN Code Input the password so that you can watch the program encrypted.
-
Page 20: Time Menu
Channel List Press ENTER button to select Channel List , then press ENTER button to enter sub-menu. Press MENU to edit the program. (Available function:Lock/Fav/Move/Delete) Menu Time 1. Press button to select the option that you want to adjust in the Time menu. - Page 21 【 】/【 】/【 】 【 】 Press ◄ ► to set the time ▼ ▲ Off Time 【 】/【 】 Press button to select Off Time to turn off the TV at the time you set. ▼ ▲ 【 】/【 】/【 】 【 】...
-
Page 22: System Menu
System Menu System 1. Press button to select the option that you want to adjust in the System menu. ▼ ▲ 2. Press Enter button to adjust. 3. After finishing your adjustment, Press Enter button to save and return to the previous menu. Countr y 【... -
Page 23: About Tv Menu
Parental Guidance shield unsuitable show automatically, Some program may not be suitable for children. Parents can by setting Parental Guidance , ▼ / ▲ Press button to select Parental Guidance. ▼ / ▲ , , , ... Press button to select Off, 4 5 6 7 18.(Age of children) HDMI CEC Press to set the HDMI CEC function. - Page 24 【 】/【 】 【 】/【 】 Press button to select Lock , and p ress ◄ ► to set. ▼ ▲ (The default password:1417). Set Password 【 】/【 】 Press button to select Set Password ▼ ▲ Channel Lock 【 】/【...
-
Page 25: Programme Guide
PROGRAMME GUIDE/USB RECORD Press EPG button on the remote control to select. Info Press to view the information of the program. Record Press to set the time to record the program. Remind Press to set the time to remind you the program, and change to the program at the time you set. Press PVR button on the remoter to select Press Play button to play the record file right now. -
Page 26: Usb Mode Media Player
USB MODE/MEDIA PLAYER Note: Before operating menu,Plug in USB device, then press INPUT button to set the Input Source to USB . Press ◄ / ► button to select USB in the Source menu, then press Enter button to enter. Press ◄... - Page 27 Movie Press button to select MOVIE in the main menu, then press Enter button to enter ▼ ▲ Press ◄ / ► button to select drive disk you want to watch, then press Enter button to enter. Press button to select return option to back to the previous menu. ▼...
- Page 29 43UHL2600 49UHL2600 55UHL2600 Customer Type 3840 2160 " " " 200cd/m2 200cd/m2 230cd/m2 1200:1 6000:1 4800:1 16:9 170/150 941.184(H) × 529.416(V) 1087.7(H) × 617.8(V) 1087.7(H) × 617.8(V) Movie: Music: AVI MPEG MKV RMVB MP WAV Photo: Text: JPG JPEG 3XHDMI,1XSCART, SAT 1xANT 1 x 3.5mm jack for earphone, 1 x Coax Audio output...
