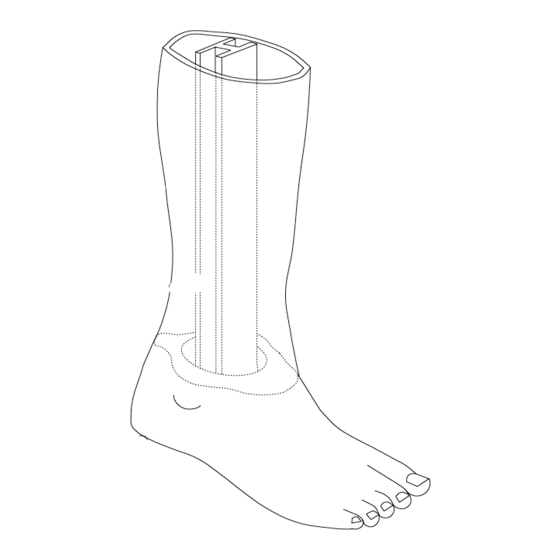

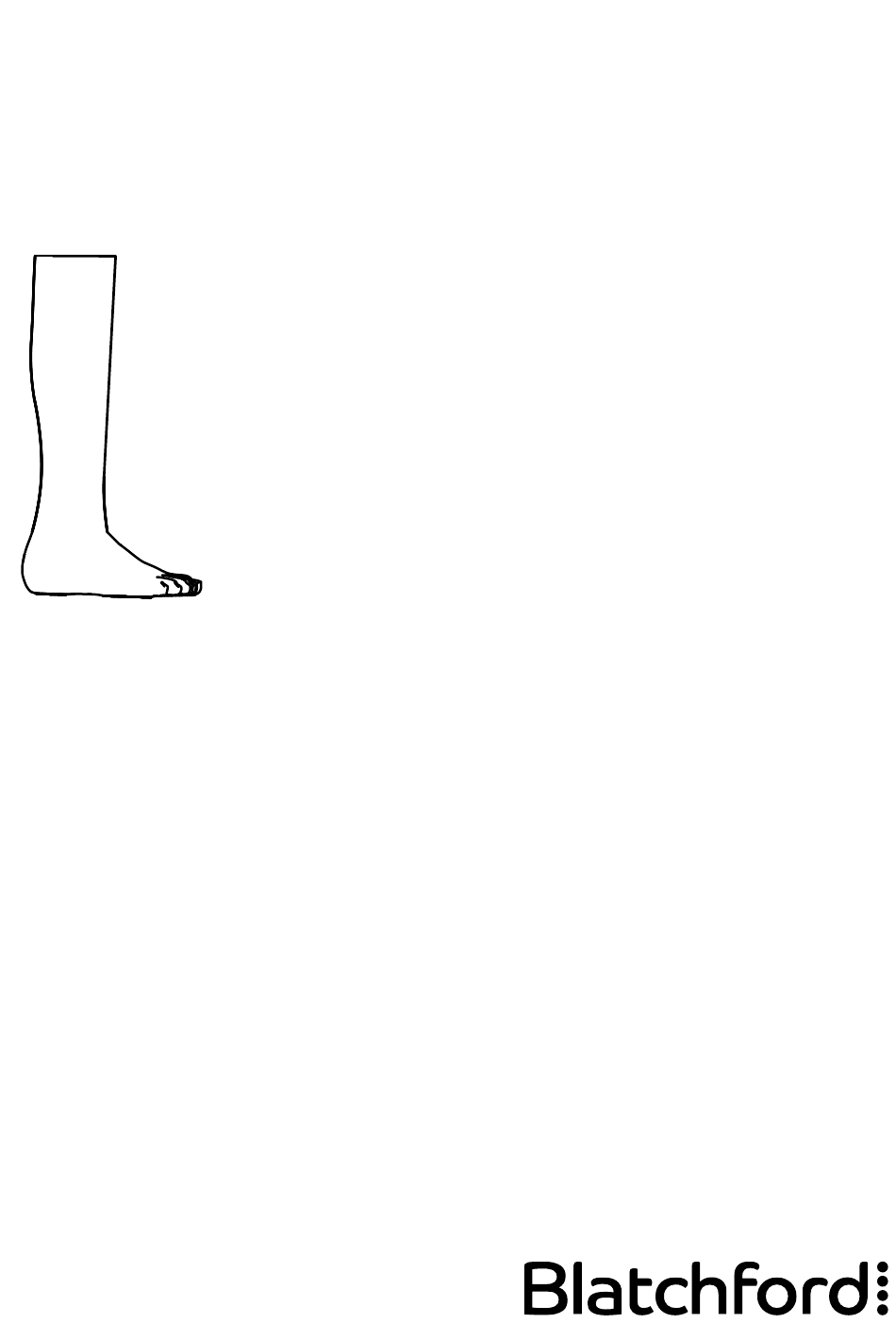

- Page 1 AqualimbTT Instructions for Use 629705L-629716L Instructions for Use...
- Page 2 938255/7-0819...
-
Page 3: Description And Purpose
1 Description and Purpose Application Activity Level These instructions are for the practitioner. This device is for Activity Level 1 and 2 users. Activity Level 3 and 4 users may only use this The term device is used throughout these device if they limit their activities to Activity instructions for use to refer to AqualimbTT. -
Page 4: Maintenance
(see section 7.1, step 8a). Take care on wet and slippery surfaces. Exclusively for use between -15 ˚C and 50 ˚C (5 ˚F and 122 ˚F). We recommend using Blatchford products with this device. 938255/7-0819... - Page 5 6 Alignment Static alignment Sagittal plane With the flexion accommodated, the load line should pass through the target shown in the image, ±10 mm A–P. The target intersects Load the point where the anterior face of the shin Line meets the keel. Make sure that when the user is standing, the heel and toe are evenly loaded and the foot is in full contact with the floor.
- Page 6 7 Assembly Ø25 mm 35 Nm To check that the shin is fully engaged in the chassis, mark the shin with the engagement 45 mm depth of the chassis. Use the mark to check that the shin is fully engaged in the chassis, then torque-tighten each screw twice.
- Page 7 7.1 Assembly If the user intends to submerge this device, remove the cosmesis with Go to Alignment a suitable cutting (see section 6), then tool. continue to step 8. Note: This action is irreversible. 50 mm If the user does not intend to submerge this device, finish it to prevent water ingress. Waterproof Tape Silicone Sealer 938255/7-0819...
-
Page 8: Technical Data
8 Technical Data Operating and Storage Temperature Range: -15 ˚C to 50 ˚C (5 ˚F to122 ˚F) Component Weight (size 26): 1.39 kg (3 lb) Activity Level: 1–2 Maximum User Weight: 100 kg (220 lb) Build Height: See the diagram below Fitting length 15 mm 30 mm... -
Page 9: Ordering Information
9 Ordering Information AqualimbTT Size (cm) Part Number — Left Part Number — Right 629705L 629706L 629707L 629708L 629709L 629710L 629711L 629712L 629713L 629714L 629715L 629716L Replacement Parts Part Part Number Alignment Kit 169106 M5x50 Socket Cap Screw 910415 938255/7-0819... - Page 10 Class I Product according to the classification criteria outlined in Appendix IX of the guidelines. The Declaration of Conformity was therefore created by Blatchford Products Limited with sole responsibility according to Appendix VII of the guidelines.
