- Page 1 LED Par 56 Short Eco ORDERCODE 42417...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec LED Par 56 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec LED Par 56 Product Guide ™ Warning.................…...……………..…………………………….………..… Safety-instructions……………………………………………………………………………………………………….. Operating Determinations.……………………………………………………………………………………………. Rigging.………………………………………………………………………………………………………………….… Return Procedure……………………………………………………………………..........Claims……………………………………………………………………..............Description................…...………………………………………….………..… Features and Overview ………………………………...….……………….………….……….……….…………….. Set Up and Operation.............................. Control Modes…………………………………………………………………………………………….…………..…. AUTO Mix Color Mode………………………………………………………………………….….……………… Sound Control Mode……………………………………………………………………………………………… Manual Mode…………………………………………………………………………………………….………… DMX Mode…………………………………………………………………………………………………………… DMX Channels.................…………………………………………………..….. -
Page 4: Warning
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
OPERATING DETERMINATIONS This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. The minimum distance between light-output and the illuminated surface must be more than 0,5 meters. The maximum ambient temperature t = 45°C must never be exceeded. -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description

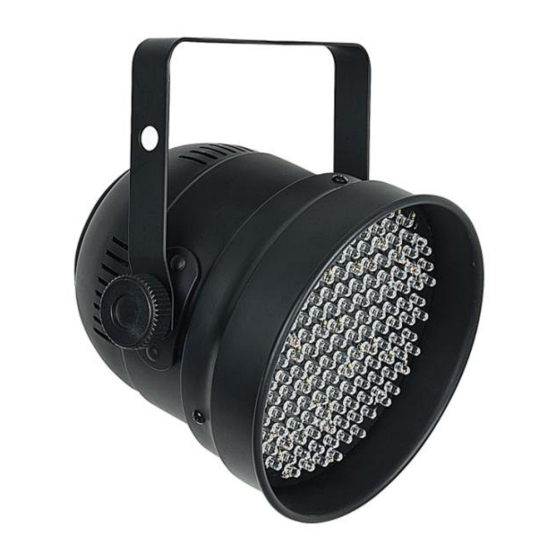

Description of the device Features The Showtec LED Par 56 is a LED parcan with high output and great effects. • Never change lamps again! • 151 LEDs (51 Red, 49 Green, 51 Blue) • 6 DMX channels • Fuse: 3,15A Overview Fig. -
Page 9: Control Modes
Control Modes 1. AUTO Mix Color Mode When dipswitch #9 and #10 are turned on, the LED Parcan is in AUTO Mix Color Mode. - Dipswitches #1 - #7 control the changing speed. 2. Sound Control Mode When dipswitch #10 is turned on, the parcan will automatically change its color to the beat of the music. With the Sensitivity control you can adjust its music-sensitivity. -
Page 10: Dmx Channels
DMX dipswitches. You need to know that DMX address settings are the sum of the dip switch values. A standard DMX address for a Showtec LED Par 36, which has 6 channels is as follow: Example... -
Page 11: Maintenance
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec LED Par 56 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. -
Page 12: Product Specifications
Product Specification Model: Showtec LED Par 56 Voltage: 240V-50Hz (CE) Fuse: 3,15A 250V Power: 15W Weight: 1,56 kg Minimum distance: Minimum distance from flammable surfaces: 0.5m Minimum distance to lighted object: 1.3m Design and product specifications are subject to change without prior notice.
