INSTALLATION AND OPERATION INSTRUCTIONS

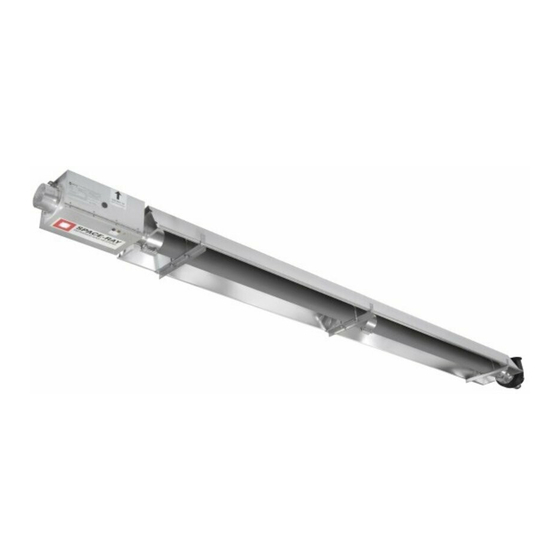

Models: LRU15, LRU25, LRU30, LRU35, LRU40, LRU45,
OWNER / INSTALLER: For your safety this manual must be carefully and thoroughly read and understood before
installing, operating or servicing this heater. This heater is intended for use with either Natural Gas or Propane
Gas. It must be installed by a qualified service person or a licensed contractor in accordance with state and local
codes.
▲WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage,
injury or death. Read the installation, operation and maintenance instructions thoroughly before installing or
servicing this equipment. For assistance or additional information, consult a qualified installer, service agency or
the gas supplier.
INSPECT all combustion air openings into the building and, if necessary, clear if they become blocked.
FOR YOUR SAFETY: If the heater is installed without a flue, exhaust fans MUST be operating on an appropriate
cycle when heaters are operating to avoid a high concentration of carbon monoxide. When used without fresh
air, this heater may give off carbon monoxide, an odorless and poisonous gas. CARBON MONOXIDE POISONING
MAY LEAD TO DEATH. Early signs of carbon monoxide poisoning resemble the flue with headaches, dizziness and
nausea. If you experience these signs, GET FRESH AIR IMMEDIATELY! Have the heaters serviced as soon as
possible and check the ventilation into the building.
!INSTALLER: This manual is the property of the owner. Please present this manual to the owner when you leave
the job site.
IF YOU SMELL GAS:
! DO NOT try to light any appliance.
! DO NOT touch any electrical switch; DO NOT use any
telephone in your building.
! IMMEDIATELY call your gas supplier from a neighbor's
telephone. Follow the gas supplier's instructions. If you
cannot reach your gas supplier, call the fire department.
!IMPORTANT: SAVE THIS MANUAL FOR FUTURE REFERENCE.
Phone 01473 830551 Fax: 01473 832055 E-mail:
OVERHEAD RADIANT TUBE HEATERS
LRL15, LRL25, LRL30, LRL35, LRL40, LRL45
Single Stage Pull Through System (Negative Pressure)
FOR YOUR SAFETY
Gas Fired Products (UK) Ltd.
Chapel Lane, Claydon, Ipswich, Suffolk IP6 0JL, England
DO NOT store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
info@spaceray.co.uk www.spaceray.com.uk
Form #44201110
May 2021
