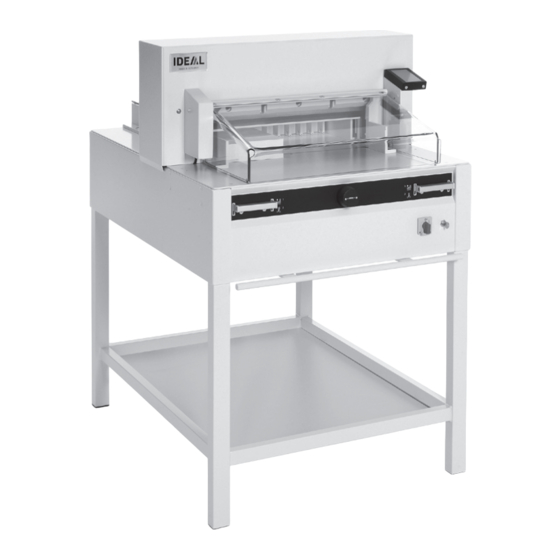

KRUG+PRIESTER IDEAL 4855 Operating Instructions Manual

Hide thumbs Also See for IDEAL 4855:
Table of Contents

Advertisement

Quick Links

Download this manual
EN
Operating Instructions
Guillotines
IDEAL 4855
IDEAL 5255
IDEAL 6655
IDEAL 4855-6655 EN 9700214 9700157
08-2022 20230620zm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDEAL 4855 and is the answer not in the manual?

Questions and answers

Related Manuals for KRUG+PRIESTER IDEAL 4855

Summary of Contents for KRUG+PRIESTER IDEAL 4855

  • Page 1 Operating Instructions Guillotines IDEAL 4855 IDEAL 5255 IDEAL 6655 IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...

  • Page 2: Table Of Contents

    Table of Contents Safety precautions Intended use Operating elements Installation Startup Operation Blade and cutting stick replacement Maintenance and cleaning Annual inspection / Safety test Possible malfunctions Accessories Technical data EC-declaration of conformity IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...

  • Page 3: Safety Precautions

    Never leave the blade unattended! Do not extract or transport the blade without protection! (See page 29 and 31). Danger! Risk of injury! Do not cut hard materials or materials which may splinter! IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...

  • Page 4: Intended Use

    Do not use any flammable cleaning agents. Intended use The machine is designed for cutting stacks of paper to a specified size. This machine is constructed for "one-man operation" only! Warning! Clips or similar damage the cutting blade. IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...

  • Page 5: Operating Elements

    Front safety guard Disconnect from the mains before starting any service work or before removing the panels! Replacement of blade and cutting stick may be performed only when the main switch is switched off! IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 6 Safety precautions All components which could endanger the operator are covered by a guard! Operating the machine without safety device is forbidden! (Front safety guard (A), rear screwed safety guard (B) and panel (C). IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 7 Before working with the machine and after every blade replacement the automatic cut-off function of safety guard (A),(correct if distance between cover and table is < 20 mm) main switch (B) and control panel (C) must be checked. IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 8 Connect the power cord to a single phase socket. 230V / 10A min 115V / 15A min Ensure free access to mains! When not in use for a longer period switch off. (Main switch to "0"). IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 9 Safety precautions Protect mains cable against heat, oil and sharp edges! Danger! Blade must always be covered by the pressing bar. Clamping Blade IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...

  • Page 10: Installation

    4 strong people are required to lift the machine from the pallet and place it on the stand. Secure with 4 screws (A). Put the shelf (B) on the stand. (Parts and tools are in the tool set (C). IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 11 Installation Tools can be kept in the holder provided. Cutting sticks (A) can be put in the tool holder. IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...

  • Page 12: Startup

    Installation / Startup Side tables (A), left and right are available as an option (No. 9000 528). Startup Plug into socket. The machine must be connected directly to the socket. IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 13 (B) • If the front cover closes by itself the gas spring (X) needs replacing. We recommend you keep a record of your test results. IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 14 Machine will automatically go to the start position. The measurement is set either with the hand- wheel (A) or by programming (B) the cutting measurements. Measurement is shown on the display in inches or cm (B). IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...

  • Page 15: Operation

    Position the paper on the backgauge (A) and side lays left or right (B). To move paper stacks, please use the paper knock-up block (C) provided. (Run backgauge to the front for turning the paper stack). IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 16 Switch position 1 Pre-clamping Press down both actuators to step 1 Clamp returns Press down completely one of the actuators Switch position 2 Cutting sequence with automatic clamping Press down both actuators to step 2 IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 17 Press both actuators of the two-handed control system (A) simultaneously and keep pressed until the paper is completely cut. To interrupt or stop cutting: To interrupt or stop cutting, release both actuators (A) of the two-handed control. IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 18 Memory 1: A2, A3, A4, A5, Memory 2: A6, A7, B3, B4 Memory 3: Memory 4: and in inch Memory 1: 4¼“, 5 ½“, 7“, 8 ½“ Memory 2: 11“, 12“, 14“, 17“ Memory 3: Memory 4: IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 19 For information on how to store see picture below left. Is shown on the screen see After 30 minutes the machine ( ) switches to energy-saving mode. The machine is reactivated by touching the keypad area IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 20 • The further the hand-wheel is turned to the right, the quicker the backgauge moves. If the hand-wheel is turned to the left the backgauge will return quicker. • Close the safety guard • Release the cut. IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 21 • Press CALC , calculate the desired measurement, e.g. 40 - 2 =  the backgauge advances immediately to 38. • With the key < can be changed to manual mode MAN. at any time. IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 22 • Escape the program mode press MAN. Cancel a program • Press EDIT • Scroll with PRG until  "Delete program no." appears • Enter Program number • Press Enter • Press Enter . IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 23 38 flashes . • Pressing the Enter-key again, the calculated measurement is saved in the corresponding step. • With the key < it can be changed to programming EDIT at any time. IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 24 • Select a program, confirm with Enter • Scroll with STEP until "Load step no." appears • Enter step position e.g. 03 • Confirm with Enter • Enter a new measurement, Store the measurement with . IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 25 • Store the measurement with Enter • Press the multiple cut symbol • Enter the number of cuts with the + button (max. 15 cuts) followed by the multiple cut size (cutting width). • Store with Enter . IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...

  • Page 26: Blade And Cutting Stick Replacement

    Krug & Priester, D-72336 Balingen. Danger! Risk of injury! The blade is extremely sharp. Do not extract or transport the blade without protection. Changing the blade may only be performed by trained staff. IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 27 (Screwdriver found in tool set (A)) or tool holder (B). Close the safety guard (1.). Lower the blade by pressing both cutting actuators (2.). Keep one actuator pressed and turn off the main switch (3.). IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 28 Only 4855 Unscrew the blade screws (C) on the right hand side. Remove the special wrench. Close the safety guard, and turn on the main switch until the blade returns to the home position. IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 29 Loosen the grips (2.) of the blade changing tool (A) lightly and allow the blade to be taken downwards out of the machine (3.). Place the blade into the blade carrier (B) and screw it into place (4). IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 30 (A) ¼ turn to the right. • If the last sheet is still not completely cut repeat this process until the last sheet is cut along the entire length. IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 31 Place the blade to be exchanged with the blade changing tool (A) mounted (1.), into the blade carrier and push it up to the top and screw it into place with the grips (2.). IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 32 Only 4855 Lightly screw in the right blade screw (A) when the blade is lowered. Remove all tools and distribute paper along the entire cutting length (1.). Turn main switch to position "I" (2.). IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 33 (The blade must remain parallel, not too deep into cutting stick). Turn main switch to position "I" (1.). Blade will return to upper position. Tighten the blade screws (2.) firmly. IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 34 Do not set too low as blade will become blunt sooner. Danger by blade replacement! Blade must always be covered by the pressing bar (see picture below at the left). Clamping Blade IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...

  • Page 35: Maintenance And Cleaning

    • Mount the machine. With more than 5 hours of use per day, the service must be performed more often. = Greasing points on the machine. No. 9000 625 No. 9800 933 No. 9001 828 IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...

  • Page 36: Annual Inspection / Safety Test

    The safety regulations are according to the regulations of the country where the cutting machine is operated. The manufacturer recommends a safety check is made every 5 years by an authorised service team. IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...

  • Page 37: Possible Malfunctions

    Possible malfunctions Machine does not function! Is the machine plugged in? Main switch to position "I"? (A) Control system activated? (B) (Turn key to the right) Release a cut see page 17. IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 38 Possible malfunctions Cut cannot be made. • If cover is open: close it. • If cover is closed: open and re-close it. (Security check). IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 39 (A). • Backgauge blocked Safety button (C) ejects. Eliminate the cause, and push the safety button (C). A,B,C Safety button for: A = Blade drive B = Clamping drive C = Backgauge drive IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 40 (B) (see page 34). Poor cutting quality or blade stays in the paper stack. • Change the blade (C) (see pages 26 - 34). IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 41 Motor runs but blade does not move downwards. • Security brake has been activated! Inform the Service Team! Did none of the specified solutions help Service you with your problem? Contact: Service  • www.krug-priester.com • service@krug-priester.com IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...

  • Page 42: Accessories

    • No. 9000 625 Grease cartridge • No. 9800 933 Brush • No. 9001 828 Paper knock-up block • No. 9000 521 Side tables left and right • No. 9000 528 Included in delivery IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...

  • Page 43: Technical Data

    (Width) 6655 1565 mm ** with side tables: (Depth) 6655 1220 mm *** with side tables: 4855 237 Kg *** with side tables: 5255 261 Kg *** with side tables: 6655 311 Kg IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 44 This machine is approved by independent safety laboratories and is in compliance with the EC-regulations 2006/42/EG and 2014/30/EG. Sound level information: Sound measurement to EN 13023 : 72,5 db (A) Subject to alteration without notice. IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 45 The company Krug + Priester has the following certifications: • Quality management system according to DIN EN ISO 9001:2015 • Environmental management system according to DIN EN ISO 14001:2015 • Energy management system according to DIN EN ISO 50001:2018 IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...

  • Page 46: Ec-Declaration Of Conformity

    BS EN ISO 13857; BS EN ISO 11204; BS EN 13023; BS EN ISO 13849-1 11.02.2022 Authorized representative for technical documentation Date Krug & Priester GmbH & Co. KG Simon-Schweitzer-Str. 34 D-72336 Balingen (Germany) - Managing Director - IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 47 Remarks: IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
  • Page 48 Made in Germany Krug & Priester GmbH & Co. KG Simon-Schweitzer-Str. 34 D-72336 Balingen (Germany) www.krug-priester.com IDEAL 4855-6655 EN 9700214 9700157 08-2022 20230620zm...
