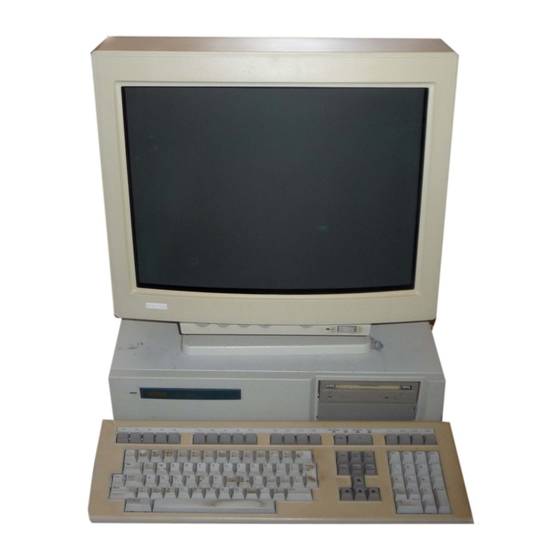

- Page 1 DEC 3000 Model 700 AXP Upgrade Information Order Number: EK–D37AX–UP. A01 Digital Equipment Corporation Maynard, Massachusetts...
- Page 2 Third Printing, July 1994 Digital Equipment Corporation makes no representations that the use of its products in the manner described in this publication will not infringe on existing or future patent rights, nor do the descriptions contained in this publication imply the granting of licenses to make, use, or sell equipment or software in accordance with the description.
-
Page 3: Table Of Contents
Contents 1 Options You Can Upgrade Overview ..........1–1 Chapter Overview . - Page 4 3 Upgrading a DECstation 5000 Model 120/125/133/150 Topics Covered in This Chapter ......3–1 Upgrade Procedure .
- Page 5 A SCSI ID Settings for Drives Setting a Unique SCSI Address ....... . A–1 Selecting SCSI ADDRESS .
-
Page 7: Options You Can Upgrade
Options You Can Upgrade Overview Chapter This chapter contains the following topics: Overview • Options You Can Upgrade • Upgrade kit contents • Using the Manual Purpose of The purpose of this guide is to tell customers and Digital Manual Services which options can be removed from the current system and used, either internally or externally, in the DEC 3000 Model 700. -
Page 8: Internal/External Options
Options You Can Upgrade Options You Can Upgrade Internal/External Options that are supported internally or externally on the DEC Options 3000 Model 700 are listed in the following tables: Fixed Disk Drives Comment RZ23L RZ24L RZ24 RZ25 RZ25L RZ26 RZ26B OpenVMS support only RZ26L RZ28... - Page 9 Options You Can Upgrade TURBOchannel Options Comment DEFTA–FA Graphics Modules Comment PMAGB–BA/BB PMAGB–BC/BD PMAGB–BE/BF PMAGB–JA/JB OSF/1 AXP support only PMAGB–DA/DB DEC Open3D required for software support PMAGB–DC/DD DEC Open3D required for software support PMAGB–EA/EB DEC Open3D required for software support PMAGB–EC/ED DEC Open3D required for software support PMAGB–FA/FB...
- Page 10 Options You Can Upgrade Memory Comment MS15–BA MS15–CA MS15–DA MS15–EA MS15–FA 1–4 Options You Can Upgrade...
-
Page 11: External Options
Options You Can Upgrade External Options that are supported externally on the DEC 3000 Model Options 700 are listed in the following tables: Expansion Boxes Comment BA350 BA353 SZ03 SZ12 SZ16 Disk/Tape Drives Comment TZ85 TZ86 TZ87 TZ857 Requires DEC NSR for OSF/1 support TZ867 Requires DEC NSR for OSF/1 support TZ875... - Page 12 Options You Can Upgrade Monitors Comment VRC21–H% VR319–CA Appropriate 66 Hz graphics option required VR319–DA VR320–CA Appropriate 66 Hz graphics option required VR320–DA VRC16–H% VRM17–A% VRM17–H% VRT16–H% VRT19–DA Appropriate 66 Hz graphics option required VRT19–H% Input Devices Comment VSXXX–AB VSXXX–FA VSXXX–AA VSXXX–JA VSXXX–GA...
-
Page 13: Upgrade Kit Contents
Options You Can Upgrade Figure 1–1 Upgrade Kit Contents System Kit: Keyboard* System Unit Screwdriver Mouse with Mousepad* Ethernet Loopback Keyboard/Mouse Connector Extension Cable Monitor* Universal Monitor Strain Relief Documentation Video Cable Strap Printer Port SCSI Terminator Monitor Terminator Power Cord Antistatic Network Wrist Strap... -
Page 14: Warning
Options You Can Upgrade Warning Attach an antistatic wrist strap before you begin this upgrade. As you remove options from your system, place them on an antistatic mat. Static discharge can cause irreparable damage to options modules. Mounting If you are upgrading a disk drive from a VAXstation 4000 Model Bracket 60/90/90A, a DECstation 5000 Model 120/125/133/150, or a DECstation 5000 Model 200/240/260 to a DEC 3000 system, you... -
Page 15: Upgrading A Vaxstation 4000 Model 60/90/90A
Upgrading a VAXstation 4000 Model 60/90/90A Topics Covered • Upgrading your system in This Chapter • Removing drives • Completing the upgrade Upgrade Procedure Step 1: If Your If your DEC 3000 system has factory-installed drives, you may need to change the SCSI IDs on the drives you are upgrading. System Has Factory-Installed To determine the SCSI ID settings on your drives:... - Page 16 Upgrade Procedure 3. Enter the command. SHOW CONFIG A screen similar to the following appears: >>> show config KN4n-A Vn.n 08-00-2B-OA-7D-CB 32 MB DEVNBR DEVNAM INFO -------------------------------------- 1 NVR OK 2 LCSPX OK 10 SCSI 0-RZ24 3-RZ25 This information shows an RZ24 drive set to SCSI ID 0 and an RZ25 drive set to SCSI ID 3.
-
Page 17: Step 2: Shut Down System
Upgrade Procedure Turn off the system unit by pressing 0 on the On/Off switch on Step 2: Shut Down System the front of the system unit. Caution: After you turn off the system, wait 15 seconds before unplugging the power cord. Disconnect all cables from the rear of the system unit. -
Page 18: Step 5: Remove H-Bracket
Upgrade Procedure To remove the H-bracket from the VAXstation system unit: Step 5: Remove 1. Push in on the cantilever catch on the bracket (as shown) H-Bracket and lift the bracket straight up with the strap handle. MLO-010582 2. Disconnect the SCSI and power cables from the drives in the bracket. -
Page 19: Step 6: Remove Drives From The H-Bracket
Upgrade Procedure To remove a drive from the H-bracket: Step 6: Remove Drives 1. Press down on the latch on the front of the bracket. from the 2. Slide the drive forward until you can pull it up and out of H-Bracket the bracket. -
Page 20: Step 7: Remove Spxgt Graphics Module
Upgrade Procedure If your system has an SPXgt graphics module, you must remove Step 7: Remove SPXgt it before you can remove the removable-media device from the system unit. If you do not have an SPXgt graphics module, go to Graphics step 8. -
Page 21: Removing The Spxgt 24-Plane Graphics Module
Upgrade Procedure Figure 2–2 Removing the SPXgt 24-Plane Graphics Module MLO-008745 Upgrading a VAXstation 4000 Model 60/90/90A 2–7... -
Page 22: Step 8: Remove Removable-Media Bracket
Upgrade Procedure To remove the bracket: Step 8: Remove 1. Disconnect the SCSI and power cables from the removable- Removable-Media media drive. Bracket 2. Push down the latch on the rear of the drive bracket and push the drive back until the front bezel clears the bezel opening in the system unit. -
Page 23: Step 9: Remove Drive From Bracket
Upgrade Procedure Follow these steps: Step 9: Remove Drive 1. Hold down the locking latch and push the drive back to from Bracket loosen it. 2. Spread apart the cantilever latches on the bracket and lift the drive out. Latch MLO-010585 3. -
Page 24: Step 10: Set Scsi Ids On Drives
Upgrade Procedure If your DEC 3000 system has a factory-installed disk drive, it is Step 10: Set SCSI IDs on set to SCSI ID 3. Drives Check the SCSI ID settings you noted earlier. If one of the drives you are upgrading is set to SCSI ID 3, then change that setting. See Appendix A for the SCSI ID drive settings. -
Page 25: Note: Other Accessory Kit Brackets
Upgrade Procedure Install the RX26 bracket extensions as shown. Note: Other Accessory Kit Brackets MLO-010719 Step 12: 1. Instructions for installing options that you have removed Complete the from your current system can be found in the DEC 3000 Upgrade Model 600/600S/700 Options Guide. - Page 27 Upgrading a DECstation 5000 Model 120/125/133/150 Topics Covered • Upgrading your system in This Chapter • Removing drives • Removing modules • Completing the upgrade Upgrade Procedure Step 1: If Your If your DEC 3000 system has factory-installed drives, you may need to change the SCSI IDs on the drives you are upgrading.
-
Page 28: 3-2 Upgrading A Decstation 5000 Model 120/125/133/150
Upgrade Procedure >>> cnfg 3 3: KNO2 Vn.n TCF0 (8 MB) (enet: 08-00-2b-30-14-df) (SCSI = 7) ----------------------------------------------------- SCSI ID ----------------------------------------------------- RZ24 (C) DEC DEC 0700 Rrd42 (C) DEC DEC 0700 CD-ROM This display shows an RZ24 drive set to SCSI ID 2 and an RRD42 drive set to SCSI ID 5. - Page 29 Upgrade Procedure Captive Screw MLO-010006 Upgrading a DECstation 5000 Model 120/125/133/150 3–3...
-
Page 30: Step 5: Remove Front Drive Panel
Upgrade Procedure Step 5: 1. Loosen the two captive screws that hold the front drive panel Remove Front in place. Drive Panel 2. Loosen the two captive screws on the back of the drive bracket. 3. If there is a drive inside the bracket, disconnect the SCSI and power cables from the drive. -
Page 31: Step 6: Remove Removable Media Drives
Upgrade Procedure Step 6: 1. Loosen the captive screws on both sides of the drive bracket. Remove Removable 2. Slide the drive out of the bracket and through the opening in Media Drives the front panel. 3. Set the drive aside on an antistatic mat. Step 7: 1. -
Page 32: Step 8: Remove Modules
Upgrade Procedure The system unit holds up to three TURBOchannel modules. Step 8: Remove Modules can occupy one, two, or three slots. Modules MLO-010663 1. Remove the option slot screws and the support post screws. 2. Release the module from the system connector and lift the module out of the option slot opening. -
Page 33: Step 9: Set The Scsi Ids On The Drives
Upgrade Procedure If your DEC 3000 system has a factory-installed disk drive, it is Step 9: Set the SCSI IDs on the set to SCSI ID 3. Check the SCSI ID settings you noted earlier. If one of the drives you are upgrading is also set to SCSI ID 3, Drives change that setting. -
Page 34: Step 12: Return Your Decstation To Digital
Upgrade Procedure Return your DECstation and any devices that are not Step 12: Return Your upgradeable to Digital. DECstation to 1. Pack the DECstation and devices securely in packing Digital material. 2. Attach the return-address label that was in your upgrade kit. 3–8 Upgrading a DECstation 5000 Model 120/125/133/150... -
Page 35: Upgrading A Decstation 5000 Model 200/240/260
Upgrading a DECstation 5000 Model 200/240/260 Topics Covered • Upgrading your system in This Chapter • Removing modules • Completing the upgrade Upgrading a DECstation 5000 Model 200/240/260 4–1... -
Page 36: Upgrade Procedure
Upgrade Procedure Upgrade Procedure If your DEC 3000 AXP system has factory-installed drives, Step 1: If Your System Has you may need to change the SCSI IDs on the drives you are Factory-Installed upgrading. Drives To display the SCSI ID settings of the drives in your expansion box: 1. -
Page 37: Step 3: Disconnect Cables
Upgrade Procedure Disconnect all the cables from the back of the system unit. Step 3: Disconnect Disconnect the power cord from the wall outlet and then from the system unit. Cables Step 4: 1. Loosen the captive screw on the back of the system unit. Remove This screw can be loosened but not removed. -
Page 38: Step 5: Remove Option Modules
Upgrade Procedure The system unit holds up to three graphics or TURBOchannel Step 5: Remove Option modules. Modules can occupy one, two, or three slots. Modules MLO-010663 1. Use a Phillips screwdriver to remove the option slot screws, then the support post screws. 2. -
Page 39: Step 6: Set The Scsi Ids On The Drives
Upgrade Procedure If your DEC 3000 AXP system has a factory-installed disk drive, Step 6: Set the SCSI IDs on the it is set to SCSI ID 3. Check the SCSI ID settings you noted earlier. If one of the drives you are upgrading is also set to SCSI Drives ID 3, change that setting. -
Page 41: Upgrading A Dec 3000 Model 400 Axp
Upgrading a DEC 3000 Model 400 AXP Topics Covered • Upgrading your system in This Chapter • Removing options • Completing the upgrade Upgrade Procedure Step 1: If you have a DEC 3000 Model 400 AXP, refer to the DEC 3000 Removing Model 600/600S/700 AXP Options Guide included with your upgrade system for information on removing fixed disk drives,... -
Page 42: Step 3: Complete The Upgrade
Upgrade Procedure Step 3: 1. Follow the instructions in the DEC 3000 Complete the Model 600/600S/700 AXP Options Guide to install the Upgrade options in your new system. 2. Follow the instructions in the DEC 3000 Model 600/600S/700 AXP Owner’s Guide to complete the upgrade. -
Page 43: Setting A Unique Scsi Address
SCSI ID Settings for Drives Setting a Unique SCSI Address Each internal drive has a SCSI address that must be unique. If more than one drive is set to the same SCSI address, the system cannot communicate with the drives. When your drive arrives from the factory, all SCSI jumpers may be attached so that they are not lost during shipment. -
Page 44: Changing The Setting
Follow these steps to change a SCSI ID setting: Changing the Setting Jumpers: Jumpers are removable electrical connectors. Carefully remove or replace jumpers using tweezers or another small tool. Save any SCSI jumpers you remove; you may need them later. Switches: Carefully set the switches using a small pointed instrument, such as the tip of a ball-point pen. -
Page 45: Tzk10/11 Tape Drive Scsi Id Settings
Figure A–1 TZK10/11 Tape Drive SCSI ID Settings DRIVE DADS SELECT 2 1 0 Jumper Jumpers Parity SCSI Address Parity Settings: MLO-010276 The DADS Jumper Before using the TZK10 drive, configure the drive, that is, check the DADS jumper to make sure it is set for the desired operating system. -
Page 46: Rrd42 Compact Disk Drive Scsi Id Settings
Figure A–2 RRD42 Compact Disk Drive SCSI ID Settings Mode 12 V+ 10 GN D 5V +5 % D C IN P 0 1 2 GN D ID SE LE O U T A U D IO M O DE F. -
Page 47: Rrd43 Compact Disk Drive Scsi Id Settings
Figure A–3 RRD43 Compact Disk Drive SCSI ID Settings 2 4 Parity SCSI Address Parity Parity Settings: Parity Parity Parity Parity Parity MLO-012126 Mode (Parity) Jumper The mode (parity) jumper allows the drive to work with your operating system. The jumper must be in place for both Open VMS AXP and DEC OSF/1 AXP operating systems. -
Page 48: Rx26 Diskette Drive Scsi Id Settings
Figure A–4 RX26 Diskette Drive SCSI ID Settings SCSI Address Settings: MLO-010463 A–6 SCSI ID Settings for Drives... -
Page 49: Rx26 Unit Select Switch
Make sure that the unit select switch is set to 2, as shown in Setting the Unit Select Switch Figure A–5. Figure A–5 RX26 Unit Select Switch MLO-007561 SCSI ID Settings for Drives A–7... -
Page 50: Tz30 Scsi Switches
Figure A–6 TZ30 SCSI Switches SCSI Address Settings: MLO-010658 A–8 SCSI ID Settings for Drives... -
Page 51: Tlz06 Tape Drive Scsi Id Settings
Figure A–7 TLZ06 Tape Drive SCSI ID Settings SCSI Mode Address Switch Switches SCSI Address Settings: MLO-010277 Mode Switch Switch 5 (Mode) allows the drive to work with your operating system, and must be down for both OpenVMS AXP and DEC OSF/1 AXP operating systems. SCSI ID Settings for Drives A–9... -
Page 52: Rz23L Fixed Disk Drive Scsi Settings
Figure A–8 RZ23L Fixed Disk Drive SCSI Settings E2 E1 SCSI Settings: MLO-010587 A–10 SCSI ID Settings for Drives... -
Page 53: Rz24L/24 Fixed Disk Drive Scsi Settings
Figure A–9 RZ24L/24 Fixed Disk Drive SCSI Settings RZ24L Drive: A0 A1 RZ24 Drive: E2 E3 SCSI Settings: MLO-010589 SCSI ID Settings for Drives A–11... -
Page 54: Rz25 Fixed Disk Drive Scsi Settings
Figure A–10 RZ25 Fixed Disk Drive SCSI Settings P1 P2 SCSI Address P1 P2 P1 P2 Settings: P1 P2 P1 P2 P1 P2 P1 P2 P1 P2 MLO-010462 A–12 SCSI ID Settings for Drives... -
Page 55: Remote Scsi Address Jumpers
The SCSI address for the RZ25 drive is designed to be set Remote SCSI Address either manually or automatically. The automatic setting is not applicable to the DEC 3000 Model 700 AXP system, therefore, Jumpers you need to make sure that the first three jumpers on the left of this secondary port are removed, as shown in Figure A–11. -
Page 56: Rz25L Fixed Disk Drive Scsi Settings
Figure A–12 RZ25L Fixed Disk Drive SCSI Settings SCSI Address Settings: MLO-010904 A–14 SCSI ID Settings for Drives... -
Page 57: Rz26 Fixed Disk Drive Scsi Settings
Figure A–13 RZ26 Fixed Disk Drive SCSI Settings SCSI Address Settings: MLO-010464 SCSI ID Settings for Drives A–15... -
Page 58: Rz26B Fixed Disk Drive Scsi Settings
Figure A–14 RZ26B Fixed Disk Drive SCSI Settings SCSI Settings: MLO-010590 A–16 SCSI ID Settings for Drives... -
Page 59: Rz26L Fixed Disk Drive Scsi Settings
Figure A–15 RZ26L Fixed Disk Drive SCSI Settings SCSI Address Settings: MLO-011277 SCSI ID Settings for Drives A–17... -
Page 60: Rz28 Fixed Disk Drive Scsi Settings
Figure A–16 RZ28 Fixed Disk Drive SCSI Settings SCSI Address Settings: MLO-011180 A–18 SCSI ID Settings for Drives... -
Page 61: Rz28B Fixed Disk Drive Scsi Settings
Figure A–17 RZ28B Fixed Disk Drive SCSI Settings SCSI Address Settings: MLO-010904 SCSI ID Settings for Drives A–19... - Page 63 Fax: (809) 749-8377 3 Digital Plaza, 1st Street Suite 200 Metro Office Park San Juan, Puerto Rico 00920 Canada Phone: 800-267-6215 Digital Equipment of Canada Ltd. Fax: (613) 592-1946 100 Herzberg Road Kanata, Ontario, Canada K2K 2A6 Attn: DECdirect Sales International —————...
- Page 65 Reader’s Comments DEC 3000 Model 700 AXP Upgrade Information EK–D37AX–UP. A01 Your comments and suggestions help us improve the quality of our publications. Thank you for your assistance. I rate this manual’s: Excellent Good Fair Poor Accuracy (product works as manual says) Completeness (enough information) Clarity (easy to understand) Organization (structure of subject matter)
- Page 66 United States BUSINESS REPLY MAIL FIRST CLASS PERMIT NO. 33 MAYNARD MASS. POSTAGE WILL BE PAID BY ADDRESSEE DIGITAL EQUIPMENT CORPORATION Information Design and Consulting MRO1–3/K10 200 FOREST STREET MARLBORO, MA 01752-3011 Do Not Tear – Fold Here...
