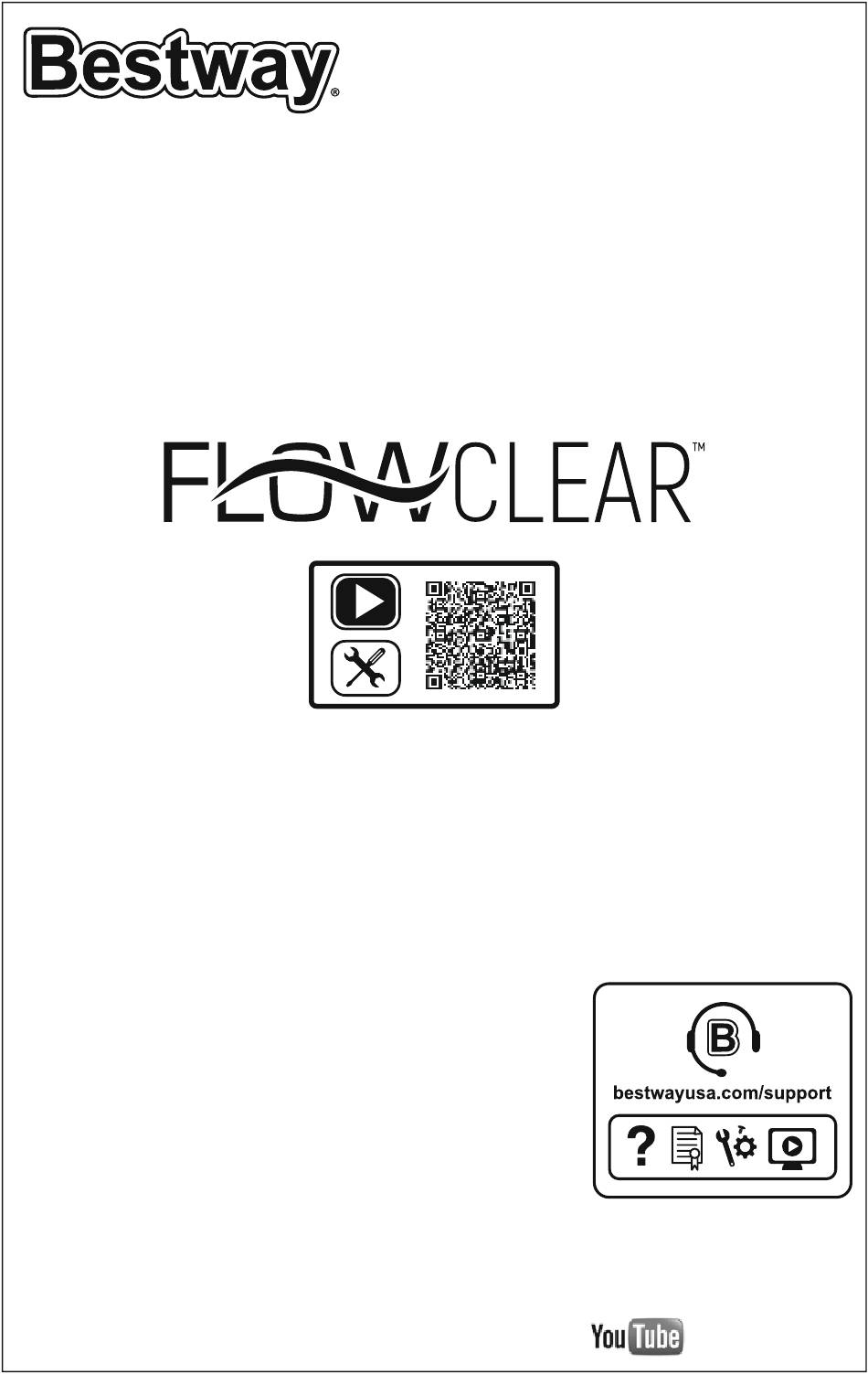

- Page 1 58498E OWNER’S MANUAL bestwayusa.com/support Visit the Bestway YouTube channel...
-
Page 2: Read And Follow All Instructions

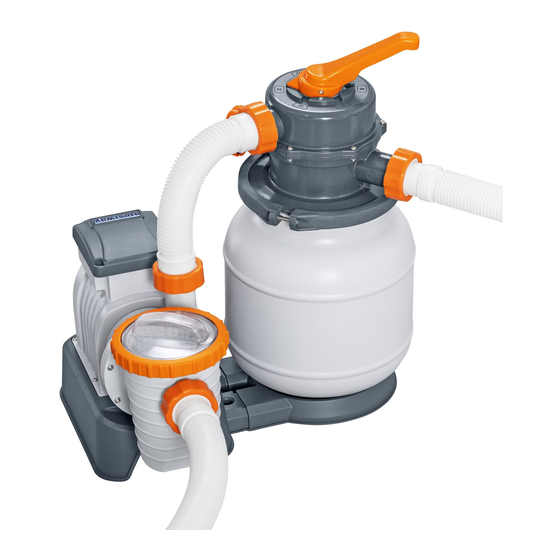

OWNER’S MANUAL 58498E Sand Filter WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? Visit the Bestway YouTube channel MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwayusa.com/support SAFETY INSTRUCTIONS WARNING IMPORTANT SAFETY INSTRUCTIONS... - Page 3 Please examine and verify all sand filter components are present before use. Notify Bestway at the customer service address listed on this manual for any damaged or missing parts at the time of purchase.
- Page 4 following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ TV technician for help. GFCI WARNING WARNING: Risk of electric shock.
- Page 5 completely, and store the product in a dry room at a storage temperature of 15 ℃ ~ 40 ℃. 6. Use the screwdriver (not included) to disassemble the suction fitting to clean or service. - Cover/grate, including fasteners, shall be observed for damage or tampering each operational day.
-
Page 6: Specifications
SPECIFICATIONS Filter Diameter: 254 mm Effective Filter Area: 0.05 m (0.54 ft Max. Operating Pressure: 0.83 Bar(12 PSI) Working sand filter pressure: <0.45 Bar(6.5 PSI) Max. Water Temperature: 35°C 254mm Sand: Not included Sand Size: #20 silica sand,0.45-0.85 mm 476mm Sand Capacity: Approximately 9 kg PARTS REFERENCE OVERVIEW... - Page 7 ASSEMBLY (You will need a screwdriver.) 1. Carefully remove all components from the package and check to ensure nothing is damaged. If equipment is damaged, immediately notify the retailer from where the equipment was purchased. 86mm 2. The sand filter should be placed on solid, level ground, preferably a concrete slab. Φ8 Position the sand filter so the Ports and Control Valve are accessible for operation, servicing and winterizing.
- Page 8 CONNECT TO THE POOL V1.1 V1.2 Garden hose (not included) For Drain, Backwash, Rinse function...
-
Page 9: Operation
FOR POOL WITH 1.25 IN. (32 MM) VALVE 26-1 STOP Before switching on, please read the manual carefully. GFCI TEST RESET RESET RESET TEST TEST TEST OPERATION CONTROL VALVE OVERVIEW WARNING: To prevent equipment damage and possible injury, always switch off sand filter before changing the Control Valve function. Changing valve positions while the pump is running can damage the Control Valve, which may cause personal injury or property damage. - Page 10 Backwash: Rinse: This function is used to clean the This function for initial startup, cleaning, sand bed; water is pumped down through the and sand bed leveling after Backwash; water is Collector Hub, upwards through the sand bed, pumped downwards through the sand bed, up and deposited out of Port D.
- Page 11 1. Now the sand filter is ready for use. Set the Control Valve to the Filter function. NOTE: To prevent the risk of electrical shock dry any excess water from yourself and the sand filter. 2. Switch on the sand filter to run it. NOTE: The sand filter has now started its filtering cycle.
-
Page 12: Troubleshooting
Exported by Bestway (Hong Kong) International Ltd./Bestway Enterprise Company Limited Suite 713, 7/Floor, East Wing, Tsim Sha Tsui Centre, 66 Mody Road, Kowloon, Hong Kong Distributed in North America by Bestway (USA) Inc., 3435 S. McQueen Road, Chandler, AZ 85286, United States of America Tel: +86 21 69135588 www.bestwayusa.com...
