ICON IP FREEMOTION 850 INTERACTIVE User Manual page 12

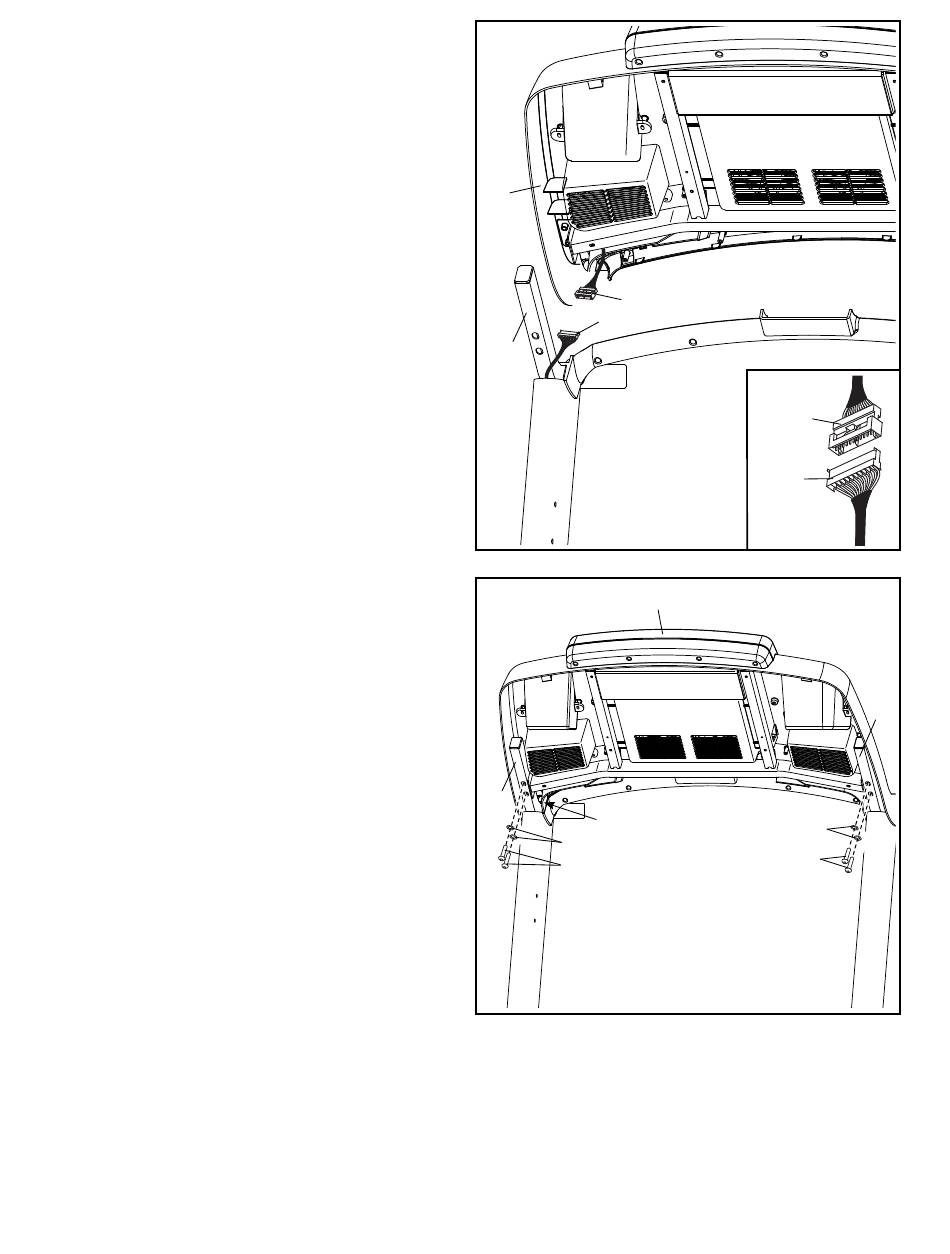

7. With the help of a second person, hold the con-
sole assembly (B) near the Handrails (74).
See the inset drawing. Connect the Upright
Wire (83) to the console wire (E). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF YOU DO NOT CONNECT THE
CONNECTORS PROPERLY, THE CONSOLE
MAY BECOME DAMAGED WHEN YOU TURN
ON THE POWER. Then, remove any wire ties
from the Upright Wire.
8. Attach the console assembly (B) to the Handrails
(74) with four 5/16" x 2" Screws (2) and four
5/16" Star Washers (8). Start all four Screws,
and then tighten them. Be careful not to
pinch the wires.
Insert the wires upward into the console assem-
bly (B).
7
B
E
83
74
8
74
Wires
8
2
12
E
83
B
8
2
74
