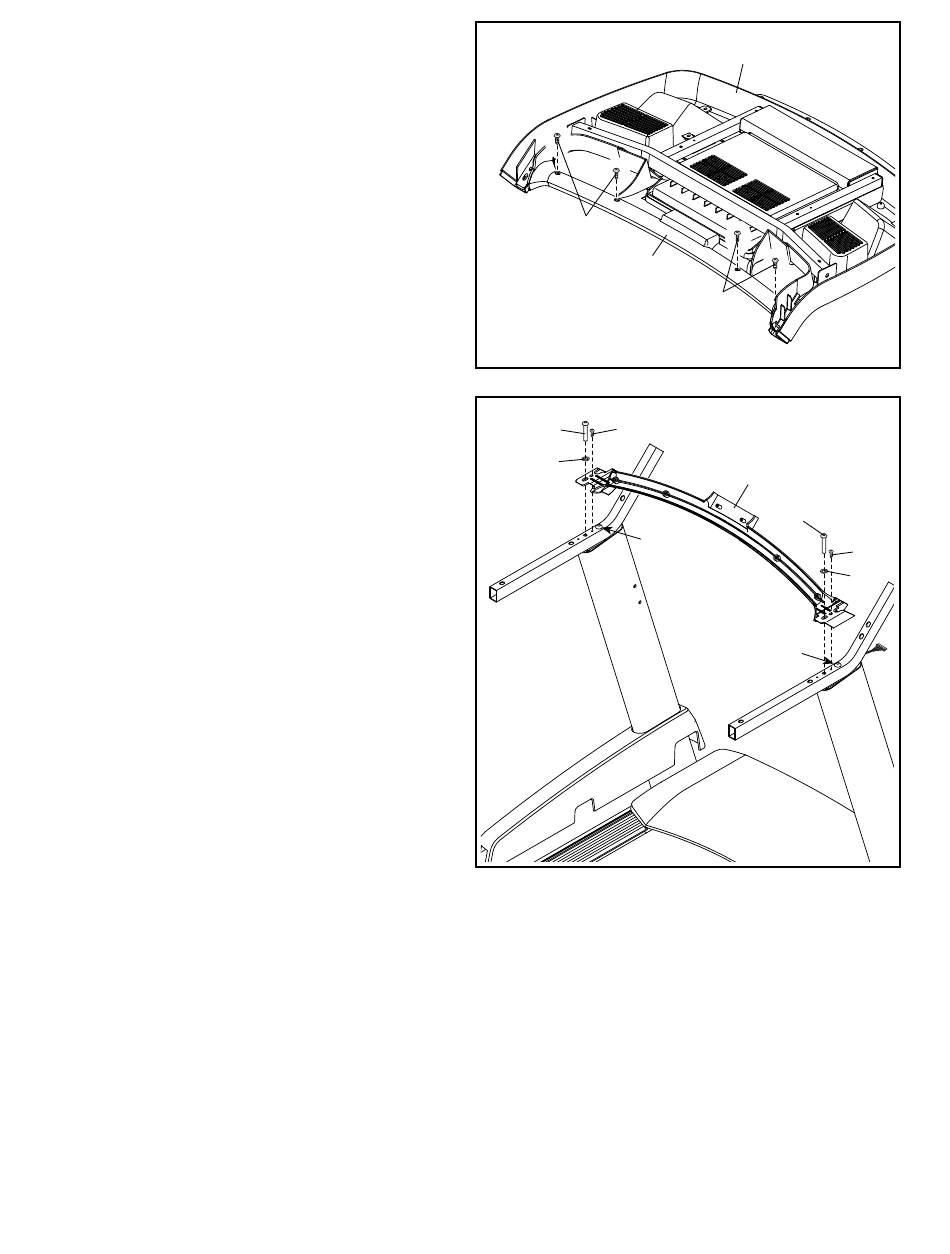

5. Set the console assembly (B) face down on
a soft surface to avoid scratching the console
assembly.
Remove and discard the four indicated screws
(C). Then, remove the Pulse Crossbar (80).
6. IMPORTANT: To avoid damaging the Pulse
Crossbar (80), do not use power tools, and
do not overtighten the #10 x 3/4" Screws (6)
or the 5/16" x 2" Screws (2).
Orient the Pulse Crossbar (80) as shown. Attach
the Pulse Crossbar with two of the 5/16" x 2"
Screws (2) that you removed in step 3, two 5/16"
Star Washers (8), and two #10 x 3/4" Screws (6).
Start all four Screws, and then tighten them.
Then, tighten the other two 5/16" x 2"
Screws (2).
