- Page 1 AS-603WL Operation Manual AS-61WL / RC-603WL Set 6x3 Automatic Wireless Antenna Switch Commands over RF Cable Operation from 1.8 MHz to 54 MHz Operation Manual V. 1.9.1 http://www.hamplus.com - 1 - AS-603WL Operation Manual...

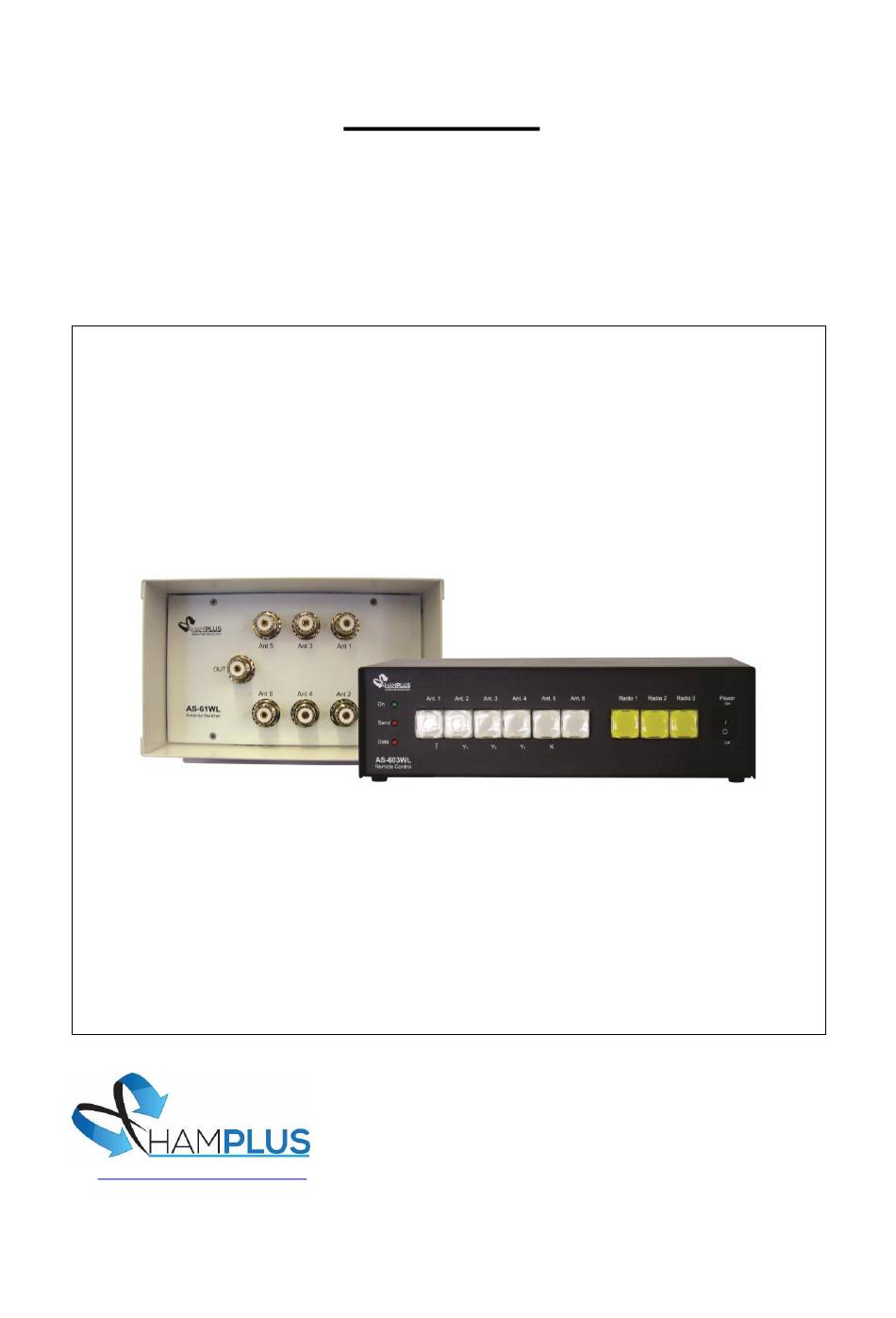

- Page 2 AS-61WL / RC-603WL Set 6x3 Automatic Wireless Antenna Switch The AS-603WL is an automatic antenna switch for three radios and six antennas. There are two independent boxes, one for the antenna switch that is near the antennas, AS-61WL, and another box with the Push Buttons for the selection of the antennas and the Radios, RC-603WL that is next to the Radio.
- Page 3 RC-603WL with a cable, such as Hamplus ERC-6, IRC-6, KRC-6, YRC-6, FRC-6 or YRC-61, and the radio set to the correct baud rate (19,200 baud CI-V or 4800 baud CAT and COM) and set up as described in the previous section.
- Page 4 Correct any wrong Ant # on any band by manual selection. Remote Operation: The AS-603WL can be operationally controlled through its RS-232 serial port. The selection of antennas and radios follow the Hamplus HP603 protocol. HP603 Protocol: RS-232, 9600 baud, 8 data bits, 1 stop bit, no parity Letter "K"...
- Page 5 "ST=" + STATUS byte-1 + STATUS byte-2 + 0x0D + 0x0A Note: In commands only the letter "K" (first byte) can be upper or lower case, the other bytes of the commands are just numbers or uppercase letters. -----------------------x---------------------- - 5 - AS-603WL Operation Manual...
- Page 6 13- RF from Radio 2 6- RS-232 Serial Port 14- RF from Radio 2 7- RF from Radio 2 15- RF In from Linear Amp. Out 8- RF Out to Linear Amp. In 16- GND - 6 - AS-603WL Operation Manual...
- Page 7 - 7 - AS-603WL Operation Manual...
- Page 8 - 8 - AS-603WL Operation Manual...
- Page 9 - 9 - AS-603WL Operation Manual...
- Page 10 - 10 - AS-603WL Operation Manual...
- Page 11 - 11 - AS-603WL Operation Manual...
- Page 12 - 12 - AS-603WL Operation Manual...
- Page 13 - 13 - AS-603WL Operation Manual...
- Page 14 - 14 - AS-603WL Operation Manual...
- Page 15 - 15 - AS-603WL Operation Manual...
- Page 16 - 16 - AS-603WL Operation Manual...
- Page 17 - 17 - AS-603WL Operation Manual...
- Page 18 - 18 - AS-603WL Operation Manual...
- Page 19 - 19 - AS-603WL Operation Manual...
- Page 20 - 20 - AS-603WL Operation Manual...
- Page 21 - 21 - AS-603WL Operation Manual...
- Page 22 - 22 - AS-603WL Operation Manual...
- Page 23 - 23 - AS-603WL Operation Manual...
- Page 24 - 24 - AS-603WL Operation Manual...
- Page 25 - 25 - AS-603WL Operation Manual...
- Page 26 - 26 - AS-603WL Operation Manual...
- Page 27 Diagram for sharing the radio's RS-232 Comm port with the Hamplus antenna switch and the personal computer using the SW-02 Serial RS-232 Expander. - 27 - AS-603WL Operation Manual...
