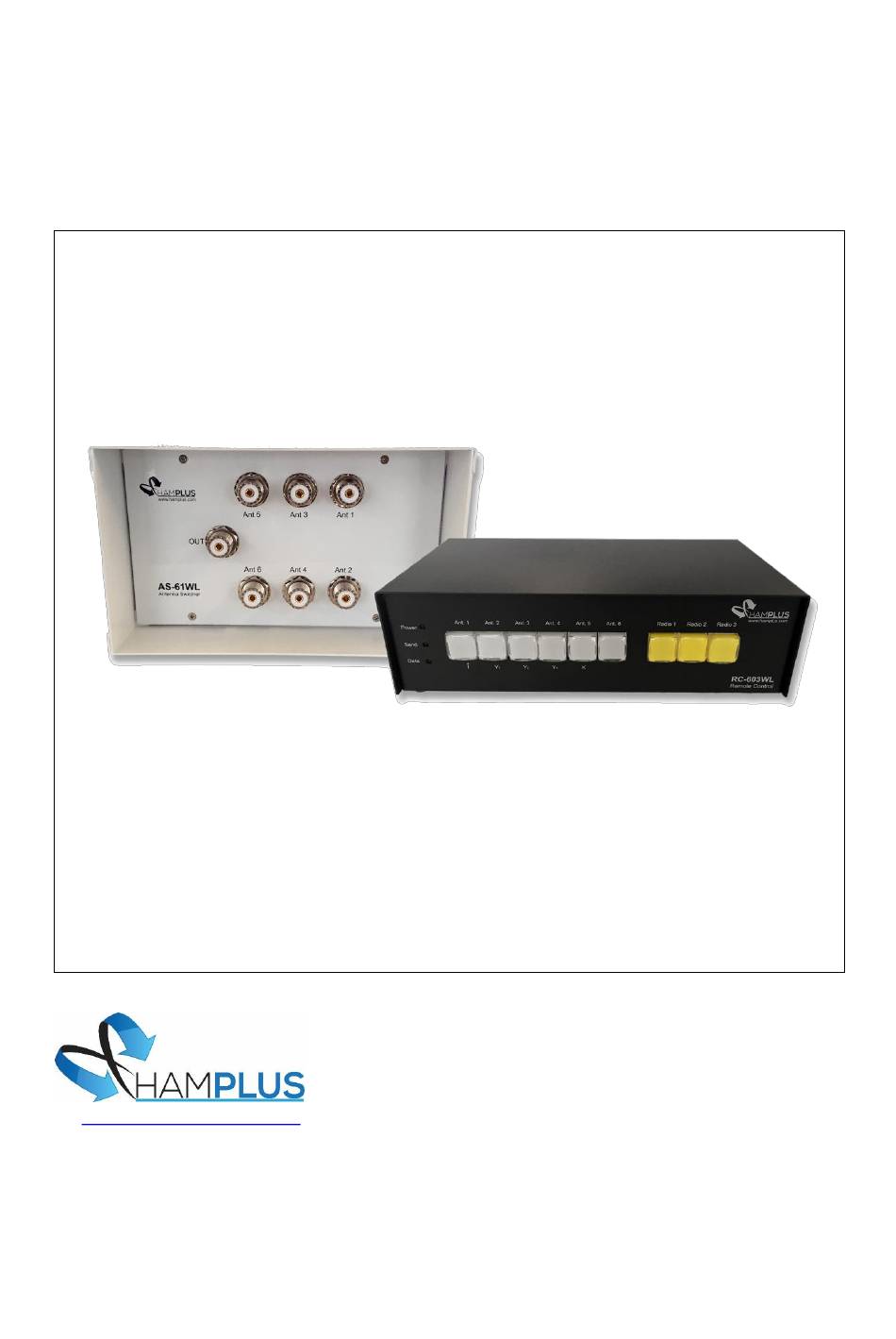

- Page 1 AS-61WL / RC-603WL ANTENNA SWITCH Operation Manual V. 1.8 http://www.hamplus.com...
- Page 2 There are two independent boxes, one for the antenna switch that is near the antennas, AS-61WL, and another box with the Push Buttons for the selection of the antennas and the Radios, RC-603WL that is next to the Radio. The connection between the two boxes is only made with the RF cable (RG-58 or RG-213).
- Page 3 RC-603WL with a cable, such as Hamplus ERC-6, IRC-6, KRC-6, YRC-6, FRC-6 or YRC-61, and the radio set to the correct baud rate (19,200 baud CI-V or 4800 baud CAT and COM) and set up as described in the previous section.
- Page 4 For example, let’s say that you now want to move your 40 meter antenna to the Ant 5 port on the AS-61WL. Simply select 40 meters on the connected radio and press Ant 5 on the RC-603WL, and it memorizes this change. Each time you change this radio to a 40 meter frequency, Ant 5 will now be automatically selected.
