Summary of Contents for Hamplus AS-603AL

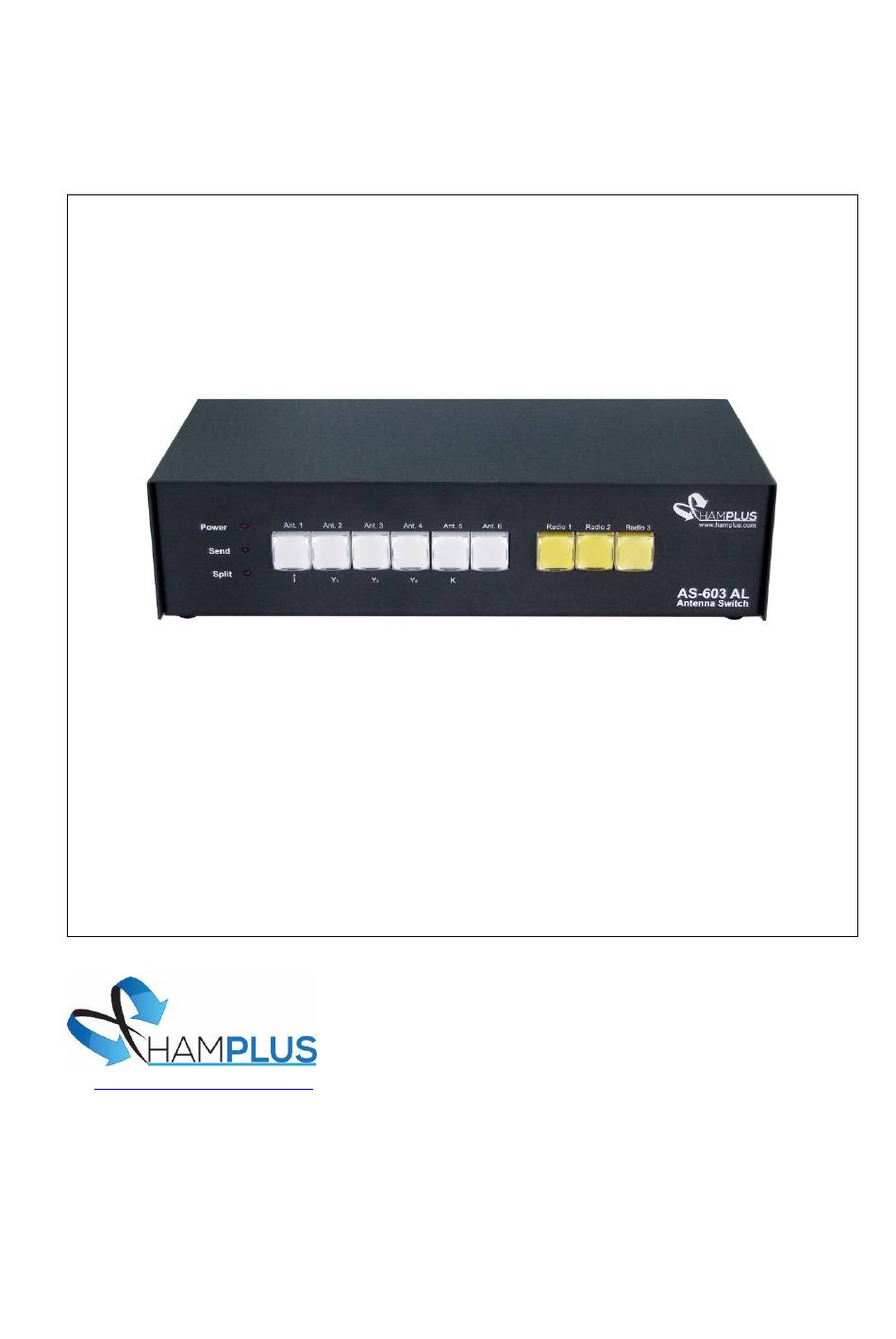

- Page 1 AS-603AL ANTENNA SWITCH Operation Manual V. 1.8 http://www.hamplus.com...
- Page 2 Procedure for connecting the AS-603AL to the radio: 1- On the AS-603AL press and hold the yellow radio select Push button and turn on the AS-603AL. 2- Then press the Antenna Push Button corresponds to the model of the radio that you will connect, according to the list below;...
- Page 3 Radio 1 on the AS-603AL: 1. Select 40 meters on Radio 1 and press Ant 2 on the AS-603AL (as if your 40 meter antenna is connected to the Ant 2 port on the AS-603AL) 2.
- Page 4 Now, test the tri-bander automation by selecting any of those bands, 20, 15 and 10 meters, on your radio. The AS-603AL will now automatically stay on Ant 3, or go back to Ant 3 after selecting a band with a different band memorized.
