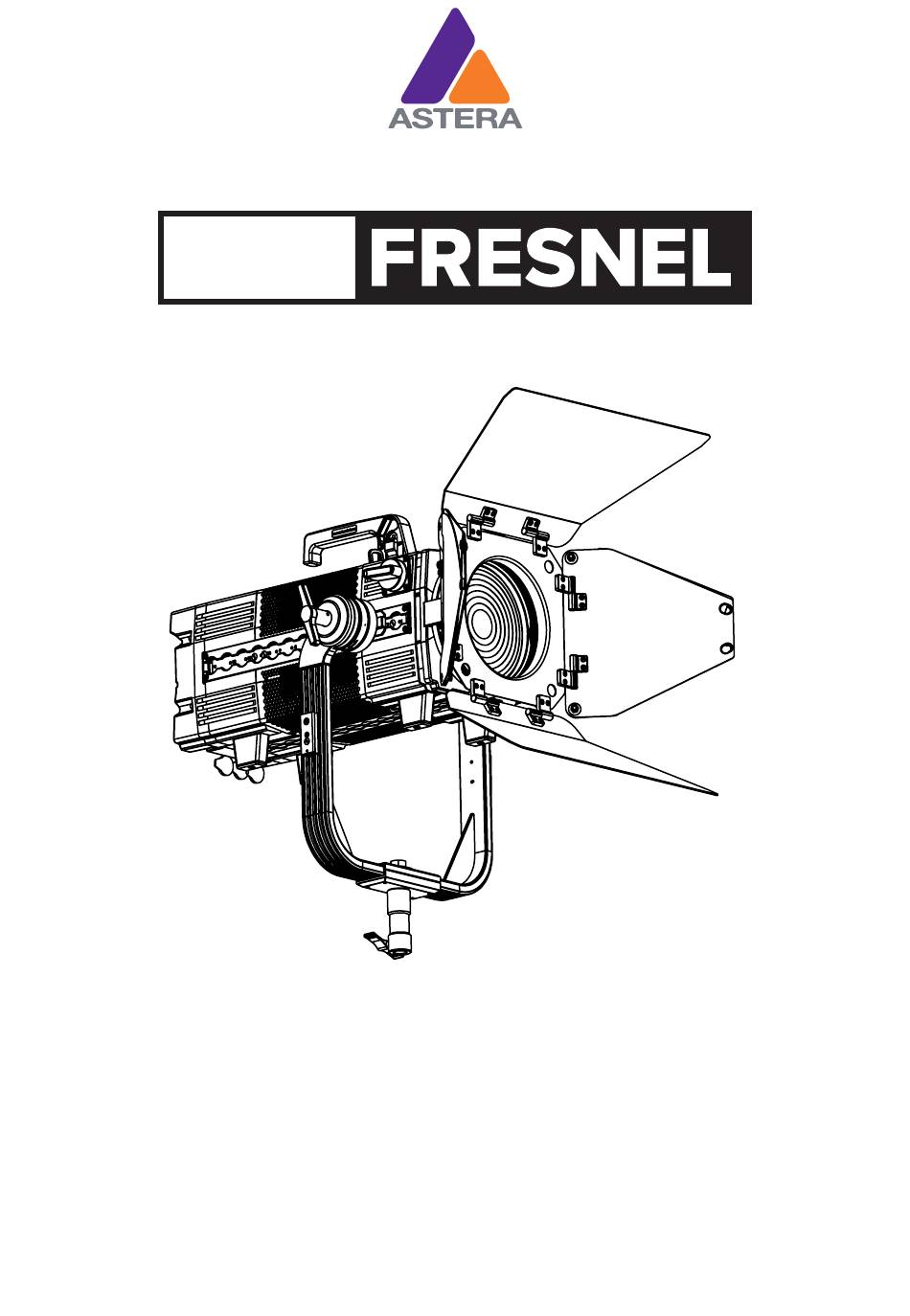

- Page 1 PRELIMINARY User Manual Order Code: AF250 Manual Version: 1.0 Date of Issue: 11.05.2023...
- Page 2 Astera LED Technology GmbH Schatzbogen 60 81829 Munich Germany www.astera-led.com TABLE OF CONTENTS / INHALTSVERZEICHNIS / INDICE DEI CONTENUTI ÍNDICE / TABLE DES MATIÈRES / 目录 EN ........................3 DE ........................... IT ..........................ES..........................FR..........................CN 中文 ......................
-
Page 3: Scope Of Delivery
1 x User Manual INTRODUCTION / INTENDED USE The LeoFresnel from ASTERA is a LED Fresnel for professional use in the event and film industry. The LeoFresnel is designed for direct or indirect illumination of objects and people. Due to its built-in battery it can be quickly set up at places where traditional lights cannot be mounted easily. -
Page 4: Safety Information
• Fully recharge every 6 months if not used. • The battery may only be replaced with an original spare part from Astera. • Follow applicable laws and regulations for transport, shipping, and disposal of batteries. For details on recycling lithium, lithium- phosphate, and lithium-ion batteries, please contact a government recycling agency or your waste-disposal service. -
Page 5: Cleaning And Maintaining
• Do not look at the LEDs with a magnifying glass or any other optical instrument that may concentrate the light output. • Use only Astera approved accessories to diffuse or modify the light beam. • Do not open the product housing. -
Page 6: Product Overview
PRODUCT OVERVIEW Isometric view Barndoor TrackHandle Zoom Knob Tilt Lock Fresnel Lens AirlineTrack YokeBase with BaseLock BrickMount Yoke TVMP Adapter Back view Barndoor Lock Safety Eyelets Zoom Knob Control Panel with TouchSlider DC Input PowerCON TRUE1 DMX IN/OUT IN/OUT Feet USAGE 1. - Page 7 Top navigation Inside main menu On / Off Main menu Back to previous menu MENU Reset settings Scroll down Change input select Scroll up Set DMX adress Choose / Confirm ENTER Color adjustment Brightness and runtime control TouchSlider The LeoFresnel has a touch slider. It is only active in certain menus and can also be operated by tapping.
- Page 8 3. Fan control The LeoFresnel has a built-in fan that can be controlled as follows. Navigate to Fan Control menu. There you can choose between the following settings: OFF: The fan always remains switched off. If the light becomes too hot, the brightness is gradually reduced.
- Page 9 Connect light as BTB Please note: This ONLY works for Astera lights with built-in Bluetooth. Please power on the light. Hold down the power button for 3 seconds until the light flashes blue. In the AsteraApp press „Manage Bluetooth Bridges“, then “+” and follow instructions on screen to connect.
- Page 10 2. LeoFresnel 1. LeoFresnel 3. LeoFresnel ENTER 4. AsteraBox 5. LeoFresnel 10 sec WAIT TILL LINK Linking via linking key Alternatively, LeoFresnel can also be connected to a CRMX transmitter using a linking key, provided that the transmitter supports this linking option. To set a linking key, navigate in the main menu to „DMX SETTINGS“.
- Page 11 Pin 1 Ground, Pin 2 DC+. Pin 3 is not used. It is not possible to charge the internal battery via the DC input. 10. Rigging The LeoFresnel is equipped with AirlineTracks on all four sides attach various Astera mounting accessories. When installing accessories AirlineTracks, they must audibly click into place! With the included yoke, LeoFresnel can be easily hung.
- Page 12 1/2" or M12 bolt. On both sides of the Yoke there is a BrickMount (PB15-BMO), to which suitable Astera accessories, such as a RuntimeExtender (REX1) can be attached. TVMP Adapter The TVMP adapter has a 1/2" thread on top and comes with a 1/2"...
- Page 13 TrackHandle The included TrackHandle easily converts the LeoFresnel into a handheld light. To do this, simply attach the TrackHandle with its robust double stud fitting to one of the LeoFresnel's AirlineTracks. 107.5 The TrackHandle is also a useful accessory for general handling of the light. 11.
-
Page 14: Troubleshooting
Zoom The built-in zoom allows adjustment of the beam between 15° and 60°. There is a scale on the side of the lens tube for reference. Rabbit-Rounder Adapter The LeoFresnel is supplied with a Rabbit-Rounder adapter. This allows the attachment of corresponding DOPchoice accessories. -
Page 15: Specifications - Technical Data
SPECIFICATIONS - TECHNICAL DATA Order Code AF250 LED Engine Titan LED Engine Colors RGBMintAmber Total LED Power 350W LED Power Draw 250W CRI (Ra)/ TLCI 3200- 6500 K* ≥96 Beam Angle 15° - 60° Strobe 0 - 25 Hertz Pixels Battery Runtime up to 20 hours Battery Runtime max. -
Page 16: Manufacturer's Declaration
• The packaging is recyclable and can be disposed. MANUFACTURERS DECLARATION Hereby, Astera LED Technology GmbH declares that the type of radio equipment LeoFresnel complies with Directive 2014/53 / EU. The full text of the EU Declaration of Conformity is available at the following Internet address: https://astera-led.com/ leofresnel. - Page 17 RF CHARACTERISTICS Channel Wireless Modules Modulation (Transmitter) Count EU: UHF***(863-870 MHz) FHSS <25 mW USA: UHF (917-922.20 MHz) FHSS <25 mW AUS: UHF (922.30-927.50 MHz) FHSS <25 mW SGP: UHF (920.50-924.50 MHz) FHSS <25 mW KOR: UHF (917.9-921.5 MHz) FHSS <25 mW RUS: UHF (868.75-869.12 MHz) FHSS <25 mW JPN: UHF (922.80-926.40 MHz)
- Page 20 Contact Astera LED Technology GmbH Schatzbogen 60 81829 Munich Germany E-mail: info@astera-led.com Website: www.astera-led.com...
