LIGHTDROP
AX3
Users Manual/Gebrauchsanleitung
Model No: AX3-CRMX-U / AX3-CRMX-WT --- Manual Version: 3.0 --- Date of Issue: 01/17/20

Advertisement

loading
Need help?

Need help?

Do you have a question about the LIGHTDROP AX3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Astera LIGHTDROP AX3

Summary of Contents for Astera LIGHTDROP AX3

  • Page 1 LIGHTDROP Users Manual/Gebrauchsanleitung Model No: AX3-CRMX-U / AX3-CRMX-WT --- Manual Version: 3.0 --- Date of Issue: 01/17/20...
  • Page 2 • Make sure to fully charge all units before storing them. • Partially charged batteries will lose capacity. • Fully recharge every 6 months if not used. • The battery may only be replaced with an original spare part from Astera.
  • Page 3 • Do not look at the LEDs with a magnifying glass or any other optical instrument that may concentrate the light output. • Use only Astera approved accessories to diffuse or modify the light beam. Sehen Sie nicht direkt in den Lichtstrahl.
  • Page 4 Always charge with the flight case open. • lt is recommended to charge at a temperature between 15°C and 35°C Laden Sie die Lampen nur bei geöffnetem Ladekoffer. • Empfohlen ist eine Ladung der Akkus bei einer Umgebungstemperatur zwischen 15°C und 35°C. The AX3 Lightdrop and its power supply shall be installed near the socket- outlet which shall be easily accessible.
  • Page 5 #4 Ladegerät #5 Befestigungshaken mit Gewinde M4 (3) #6 Gummifuß (4) #7 Bügel #8 Verschlusskappe Ladebuchse #9 Handbuch - The power supply is intended for use with LED lights (Astera AX3). Any other use is not permitted. Always disconnect from mains when not in use - Adhere to the specifications on the nameplate.

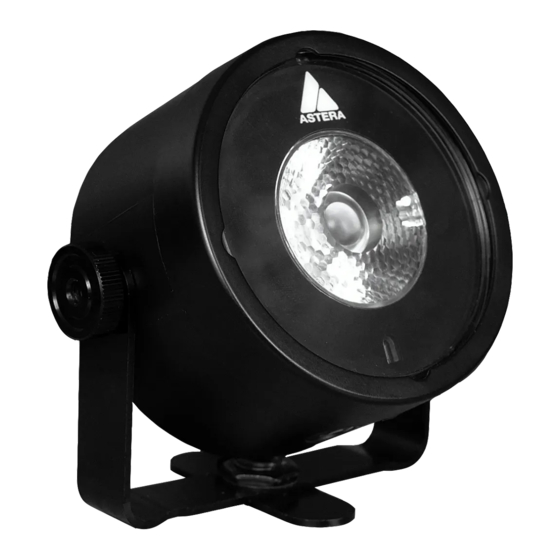

  • Page 6 Product Overview / Produktübersicht 6: Bracket adjustor with 1/4“-20 for attaching clamp / 1: Charging socket and IP65 socket cover / Bügeleinstellung mit 1/4“ -20 (Zoll) Gewinde für Befesti- Anschlussbuchse für Ladegerät und IP65 Schutz- gungsklammer kappe 7: M4 screw thread for hooks / M4 Gewinde für Be- 2: Underside ON/OFF button / festigungshaken Unterer AN/AUS Knopf...
  • Page 7 Using the AX3 Lightdrop / Verwendung der AX3 Lightdrop 1. Control options / Steuerungsmöglichkeiten On/Off, set a static color via “blue mode” (see manual) / ON/OFF An/Aus, Statische Farbe via “blue mode” einstellen (s.Bediendungsanleitung) On/Off, Static Colors, Preprogrammed Effects / An/Aus, Statische Farben, vorprogrammierte Farben Settings, Complex effects, Talkback / Einstellungen, komplexe Effekte, Talkback...
  • Page 8 4. Linking to a CRMX transmitter / Mit CRMX Transmitter verbinden STEP 3: ART7 STEP 1: AX3 (TURN ON) STEP 2: AX3 STEP 4: ART7 PANEL 10 sec WAIT 5. Charging / Laden LED flashing green - charging at full current / LED blinkt grün - Ladung mit maximaler Stromstärke LED flashing yellow –...
  • Page 9 6. Hanging / Aufhängen The lighting can be hung via a bolt or clamp. When hanging, secure with safety wire and carabiner that hold at least 10kg. Make sure the light cannot drop more that 20cm if primary mounting fails. Der AX3 kann mit Hilfe von Schrauben und Schellen aufgehängt werden.

  • Page 10: Troubleshooting / Fehlerbehebung

    Cleaning and maintaining / Reinigung und Wartung Caution: Liquids entering the housing of the device can cause a short circuit and damage the electronics. Do not use any cleaning agents or solvents. Achtung: In das Gehäuse des Geräts eindringende Flüssigkeiten können einen Kurzschluss verursachen und die Elektronik beschädigen.
  • Page 11 Specifications / Spezifikationen Tecnical Data / Technische Daten LED Power / Leistung: Illuminants / Leuchtmittel: 1 x 15W RGBW CREE LEDs Luminous Flux / Lichtstrom*: 430lm (at/bei 4000K White/Weiß) Emittance / Beleuchtungsstärke*: 1300lx (at/bei 2m - 4000K) Beam Angle / Abstrahlwinkel: 13°...

  • Page 12: Manufacturer Declaration

    AX3.pdf Astera LED Technology GmbH declares that this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This manual is also suitable for:

Ax3-crmx-uAx3-crmx-wt
