ASTERA NYX BULB FP5-E27 / FP5-E26 / FP5-B22 Manual

CONTENTS

1. NYX Bulb
2. USB DC Cable
3. Users Manual

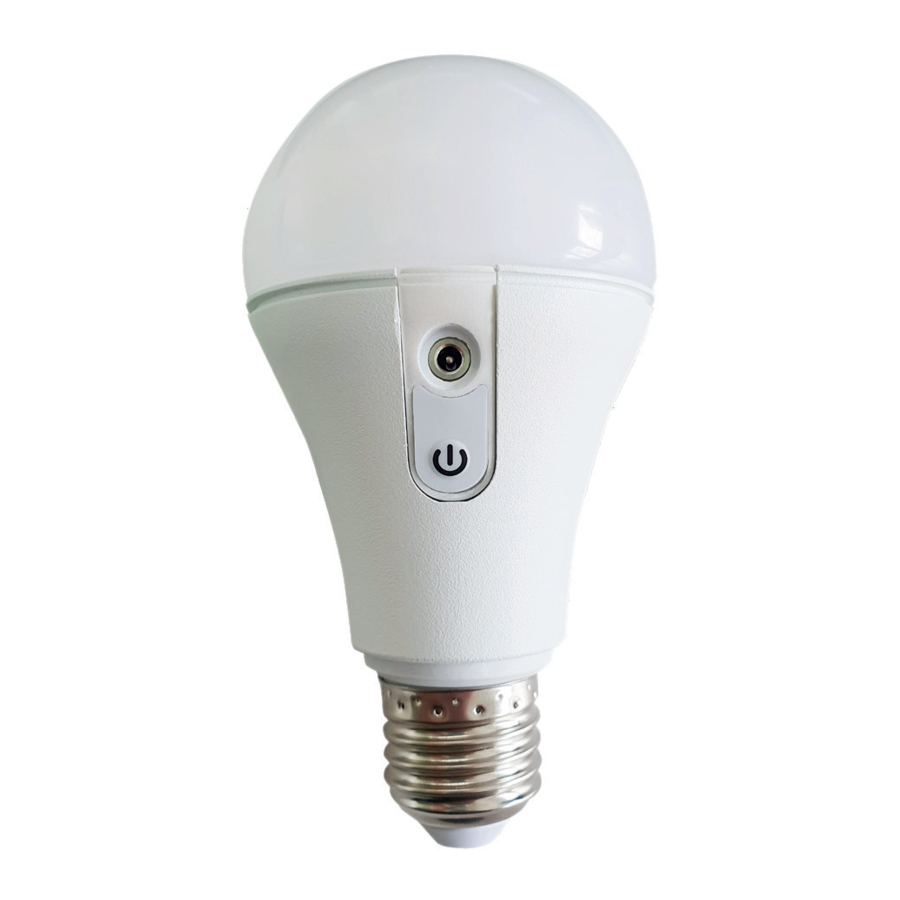

PRODUCT OVERVIEW

THE NYX BULB: USING

Control options

ON/OFF
On/Off, static color via "blue mode", Reset settings

On/Off, Static Colors, Preprogrammed Effects

All settings, Complex effects, Talkback+, Updates

Сontrol from DMX consoles via CRMX or W-DMX

Switching On/Off

Pairing -> AsteraApp

Turn the NYX Bulb into „blue mode" by holding down the power button for 3 seconds

Static Colors

Turn NYX Bulb into „blue mode" by holding down the power button for 3 seconds. Press the button shortly to cycle between 13 predefined colors and white tones. To latch chosen color, hold the button until blinking stops.

Reset and Linking to a CRMX transmitter

STEP 1: NYX BULB

STEP 2: NYX BULB

STEP 3: ART7

STEP 4: ART7 PANEL

RESET to unpair and set Control Input to auto detection mode

INTRODUCTION / INTENDED USE

The Astera NYX Bulb FP5 is a professional 1 pixel RGB+Amber+Mint LED illuminant with ultra high TLCI/ CRI and calibrated color rendering as well as Astera's flicker free PWM technology.
Built-in CRMX, Bluetooth and RF-Modules provide the same connectivity known from other Astera fixtures. Numerous professional features and mounting options make the NYX Bulb a versatile lightsource for the Film, Broadcast, Event industries and decorative purposes.
It can be powered by AC from a E26/ E27/B22 socket as well as by wide range DC from e.g. a USB Powerbank or the optionally available battery powered Astera PowerStation.

This device was designed for indoor and outdoor use - outdoor only with plugged in rubber on DC socket.
Do not shake the device. Avoid brute force when installing or operating the device.
When choosing the installation-spot, please make sure that the device is not exposed to extreme heat or dust.
There should not be any cables lying around. You endanger your own and the safety of others!
The ambient temperature must be set. Keep away from direct insulation (particularly in cars) and heaters.
Never use the device during thunderstorms connected to a power socket. Over voltage could destroy the device. Always disconnect the device during thunderstorms.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.
Always fix the fixture with an appropriate safety bond.
The specified ambient temperature must be maintained
Operate the device only after having become familiarized with its functions.
Device is not dimmable. Use Astera PowerStation or AsteraApp for dimming.

Please use the transportation cases or original packaging if the device is to be transported.
Please consider that unauthorized modifications on the device are forbidden due to safety reasons!
If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like shortcircuit, burns, electric shock, crash etc.

SAFETY INFORMATION

Before you operate this unit read the manual carefully. Always make sure to include the manual if you pass/ rent/ sell the unit to another user. Keep in mind that this manual cannot address all possible dangers and environments. Please use your own caution when operating. This product is for professional use only. It is not for household use.

• Do not operate the unit in areas of high temperature conditions or under direct sunlight.
• It will cause abnormal function or damage the product.
• Make sure the unit is mounted properly and safely.
• Always follow local safety requirements.
• Please note that the mechanical stability of certain lamps and lampholders may be altered and contact and hold may be impaired if the newly inserted lamp is heavier than the original lamp.
• Suitable for damp locations
• Do not use with standard dimmers

• Do not open the product housing.
• Do not apply power if the light is damaged.
• Do not submerge the light into any liquid.
• Do not replace the LED light source.
•
  risk of electric shock.

The NYX Bulb and its power supply shall be installed near the socket-outlet which shall be easily accessible.

Electric shock: risk of - Do not open power unit, for indoor use only.

The exterior surfaces of the light can become hot, up to 70°C (158°F) during normal operation.

• Ensure that accidental physical contact with the device is impossible.
• Install only in ventilated locations.
• Do not cover the light.
• Allow all lights to cool before touching.
• Keep 0.3m (12in) from objects to be illuminated.

CLEANING AND MAINTAINING

Liquids entering the housing of the device can cause a short circuit and damage the electronics. Do not use any cleaning agents or solvents.

TROUBLESHOOTING
