Summary of Contents for Nibe Contura C 710

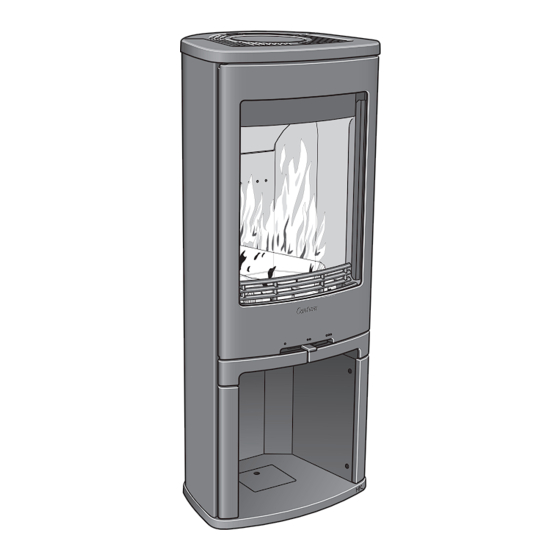

- Page 1 Installation Instructions C 710 www.contura.eu...
- Page 2 Emissions of hazardous substances Pass Nominal output 5 kW Efficiency Flue gas temperature in connector at nominal 315°C output The undersigned is responsible for the manufacture and conformity with the declared performance. Niklas Gunnarsson, Business area manager NIBE STOVES Markaryd, March 29, 2016...
- Page 3 CONTENTS A warm welcome to Contura. A warm welcome to the Contura family. We hope you will get a great deal of pleasure from your new stove. As a new owner of a Contura stove you have secured a product with timeless design and long service life.
- Page 4 FACTS Technical details Important to remember! Installation by authorised Structural support Output 3-7kW Nominal output 5 kW technician Check that the wood joists are strong Efficiency up to 80% enough to bear the weight of the stove and This manual contains instructions about chimney.
- Page 5 CHIMNEY Connection to chimney • The stove meets the requirements for connecting to chimneys • A flue with sharp bends and horizontal routing reduces the dimensioned for 350°C flue gas temperature. draught in the chimney. Maximum horizontal flue is 1 m, on the condition that the vertical flue length is at least 5 m.
- Page 6 SUPPLY AIR Supply of combustion air When a stove is installed in a room, the demand for air supply to the room increases. Air can be provided indirectly via a vent in the outer wall or via a duct from the outside that is connected to the connector on the underneath of the stove.
- Page 7 INSTALLATION DISTANCES Installation distances C 710 The minimum distance in front of the stove opening to combustible Combustible roof parts of the building or interior decoration must be at least 1 m. The dimension diagrams only show the minimum permitted installation distances for the stove.
- Page 8 ASSEMBLY Assembly Final inspection of the installation It is extremely important that the installation is inspected by an authorised chimney sweep before the stove is used. Also read the ”Lighting instructions”, before lighting for the first time.
- Page 9 ASSEMBLY...
- Page 10 REMOVAL How to remove the heat deflector How to remove the hearth surround Handle the vermiculite with care. Lift the smoke baffle with one hand whilst removing the sides. The side posts need not be removed when sweeping. Reinstall in reverse order...
- Page 12 NIBE AB · Box 134 · 285 23 Markaryd · Sweden www.contura.eu Contura reserves the right to change dimensions and procedures described in these instructions at any time without 811278 IAV SE-EX C710-2 special notice. The current edition can be downloaded from 2016-06-23 www.contura.eu...
