Summary of Contents for Nibe Contura C210

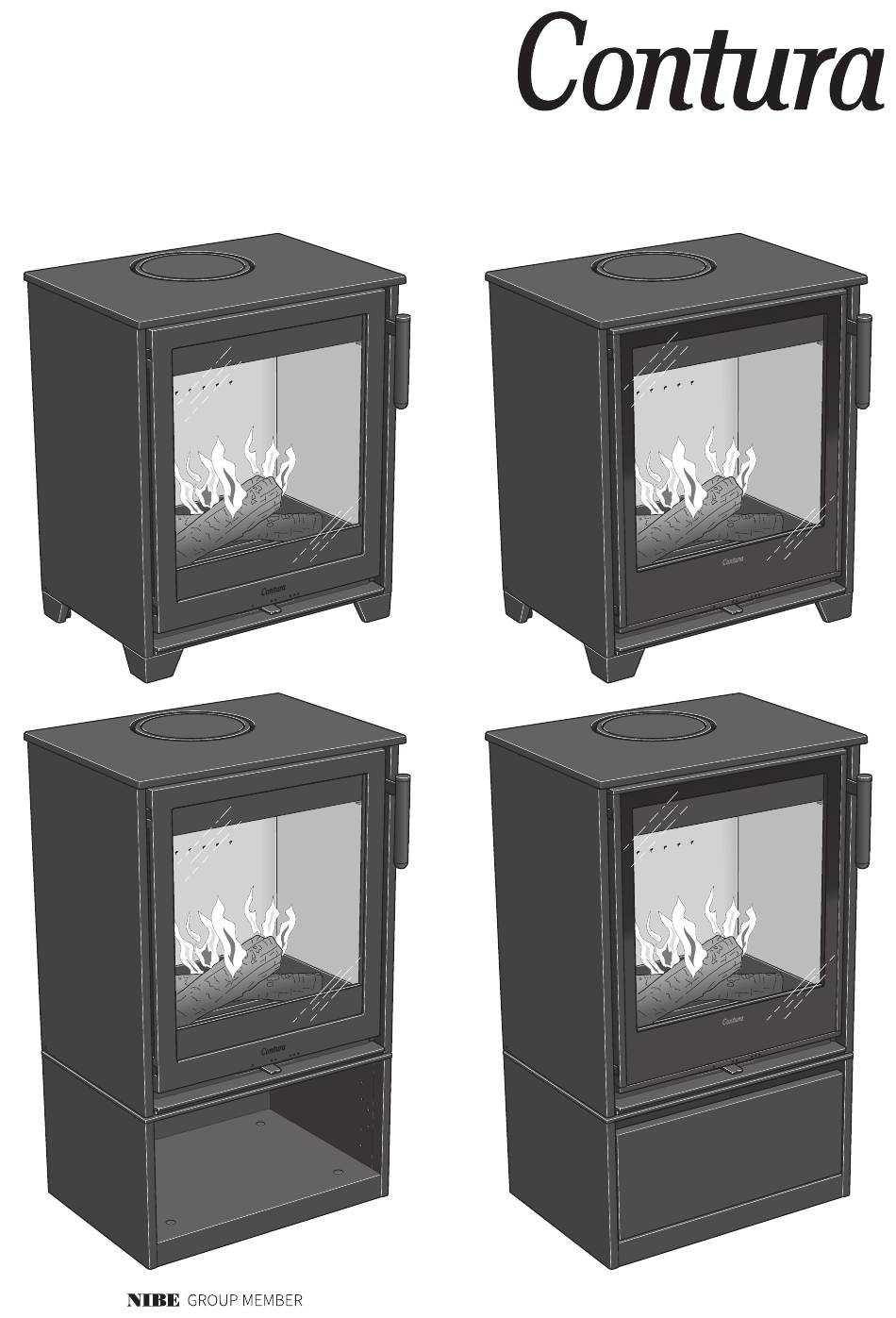

- Page 1 C210 C210G contura.eu...
-
Page 2: Table Of Contents
Facts Installation distances Declaration of performance EU Declaration of Conformity Assembly Fakta Installationsavstånd Prestandadeklaration EU-försäkran om överrenskommelse Montering Fakta Installasjonsavstand Ytelseserklæring EU-samsvarserklæring Montering... -
Page 3: Facts
Facts 5 kW 615 mm 500 mm 355 mm 85 kg Installation by authorised Structural support Nominal effect 5 kW Efficiency 80,3% technician Check that the wood joists are strong enough to bear the weight of the stove and chimney. The This manual contains instructions about how Meets requirements of: stove and chimney can usually be placed on a... -
Page 4: Installation Distances
Installation distances C210 The minimum distance in front of the stove opening to combustible parts of the building or interior decoration must be at least 1,4 m. The dimension diagrams only show the minimum permitted installation distances for the Combustible roof stove. -
Page 5: Declaration Of Performance
5,0 kW Efficiency 80,3% Flue gas temperature at nominal output 269°C Flue gas temperature in flue spigot The undersigned is responsible for the manufacture and conformity with the declared performance. Niklas Gunnarsson, Business area manager NIBE STOVES Markaryd, April 2, 2022... -
Page 6: Eu Declaration Of Conformity
A sufficient supply of combustion air must always be guaranteed. Air suction systems can interfere with the combustion installation, or maintenance. air supply. The undersigned is responsible for the manufacture and conformity with the declared performance. Niklas Gunnarsson, Business area manager NIBE STOVES Markaryd, April 1, 2022... -
Page 7: Montering
Prior to installation Montering Om kaminen behöver läggas ned för att If the stove needs to be laid down for it förflyttas bör lösa delar demonteras. to be moved, loose components should be Demontering av eldstadsbeklädnad beskrivs i removed. A description of how to remove slutet av denna anvisning. - Page 9 Rear connection to a masonry chimney Bakåtanslutning till murad skorsten Bakmontering til murt skorstein Ø c a 1 8 0 m m...
- Page 10 Supply (Accessory) Tilluft (Tillbehör) Tilluft (Tilbehør)
- Page 12 How to remove the hearth surround (Vermiculite) Demontera eldstadsbeklädnaden (Vermiculit) Slik demonterer du ildstedsbekledningen (Vermikulitt) Handle with care!
- Page 14 For installation in the UK and in smoke control areas Mandatory for smoke control areas Contura 210, 210G, 5 kW woodburning stoves has been recom- The permanent stop must be installed if the appliance is to be mended as suitable for use in smoke control areas. This when bur- used in a smoke control area, this stop must not be removed in ning wood logs and operated in accordance with these instructions smoke control areas, otherwise an offence will be committed if...
- Page 15 Positioning the log box (Accessory) Placering på vedfack (Tillbehör) Plassering av vedrom (Tilbehør)
-
Page 18: Montering
Installing the bottom door (Accessory) Montering av nedre lucka (Tillbehör) Montering av dør til nedre del (Tilbehør) - Page 20 811482 IAV SE-EX C210-2 NIBE AB · Box 134 · 285 23 Markaryd · Sweden contura.eu 2022-08-31...
