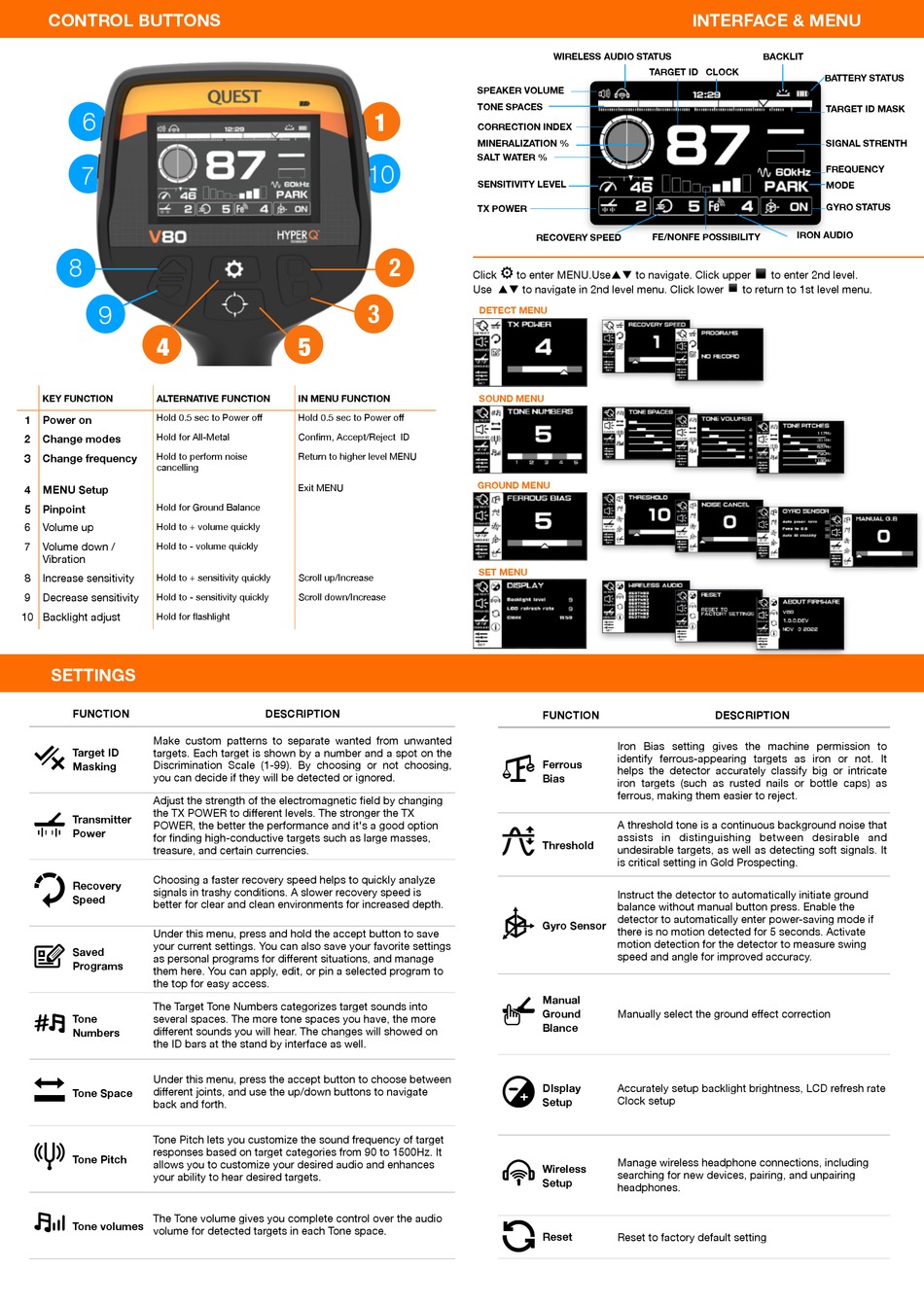

Quest Engineering V80 Quick Start page 2

CONTROL BUTTONS
6
7
8
9
4
KEY FUNCTION ALTERNATIVE FUNCTION
Hold 0.5 sec to Power off
1 Power on
Hold for All-Metal
2 Change modes
Hold to perform noise
3 Change frequency
cancelling
4 MENU Setup
Hold for Ground Balance
5 Pinpoint
6 Volume up Hold to + volume quickly
7 Volume down / Hold to - volume quickly
Vibration
8 Increase sensitivity Hold to + sensitivity quickly
9 Decrease sensitivity Hold to - sensitivity quickly
10 Backlight adjust Hold for flashlight
SETTINGS
FUNCTION
Make custom patterns to separate wanted from unwanted
Target ID
targets. Each target is shown by a number and a spot on the
Discrimination Scale (1-99). By choosing or not choosing,
Masking
you can decide if they will be detected or ignored.
Adjust the strength of the electromagnetic field by changing
the TX POWER to different levels. The stronger the TX
Transmitter
POWER, the better the performance and it's a good option
Power
for finding high-conductive targets such as large masses,
treasure, and certain currencies.
Choosing a faster recovery speed helps to quickly analyze
Recovery
signals in trashy conditions. A slower recovery speed is
Speed
better for clear and clean environments for increased depth.
Under this menu, press and hold the accept button to save
your current settings. You can also save your favorite settings
Saved
as personal programs for different situations, and manage
Programs
them here. You can apply, edit, or pin a selected program to
the top for easy access.
The Target Tone Numbers categorizes target sounds into
Tone several spaces. The more tone spaces you have, the more
different sounds you will hear. The changes will showed on
Numbers
the ID bars at the stand by interface as well.
Under this menu, press the accept button to choose between
different joints, and use the up/down buttons to navigate
Tone Space
back and forth.
Tone Pitch lets you customize the sound frequency of target
responses based on target categories from 90 to 1500Hz. It
Tone Pitch
allows you to customize your desired audio and enhances
your ability to hear desired targets.
The Tone volume gives you complete control over the audio
Tone volumes
volume for detected targets in each Tone space.
1
10
2
3
5
IN MENU FUNCTION
Hold 0.5 sec to Power off
Confirm, Accept/Reject ID
Return to higher level MENU
Exit MENU
Scroll up/Increase
Scroll down/Increase
DESCRIPTION
WIRELESS AUDIO STATUS
SPEAKER VOLUME
TONE SPACES
CORRECTION INDEX
MINERALIZATION %
SALT WATER %
SENSITIVITY LEVEL
TX POWER
RECOVERY SPEED
⚙
Click to enter MENU.Use▲▼ to navigate. Click upper
Use ▲▼ to navigate in 2nd level menu. Click lower
DETECT MENU
SOUND MENU
GROUND MENU
SET MENU
FUNCTION
Iron Bias setting gives the machine permission to
identify ferrous-appearing targets as iron or not. It
Ferrous
helps the detector accurately classify big or intricate
Bias
iron targets (such as rusted nails or bottle caps) as
ferrous, making them easier to reject.
A threshold tone is a continuous background noise that
assists in distinguishing between desirable and
Threshold
undesirable targets, as well as detecting soft signals. It
is critical setting in Gold Prospecting.
Instruct the detector to automatically initiate ground
balance without manual button press. Enable the
detector to automatically enter power-saving mode if
Gyro Sensor
there is no motion detected for 5 seconds. Activate
motion detection for the detector to measure swing
speed and angle for improved accuracy.
Manual
Ground Manually select the ground effect correction
Blance
DIsplay
Accurately setup backlight brightness, LCD refresh rate
Clock setup
Setup
Manage wireless headphone connections, including
Wireless
searching for new devices, pairing, and unpairing
Setup
headphones.
Reset
Reset to factory default setting
INTERFACE & MENU
BACKLIT
TARGET ID CLOCK
IRON AUDIO
FE/NONFE POSSIBILITY
▪
to enter 2nd level.
▪
to return to 1st level menu.
DESCRIPTION
BATTERY STATUS
TARGET ID MASK
SIGNAL STRENTH
FREQUENCY
MODE
GYRO STATUS
