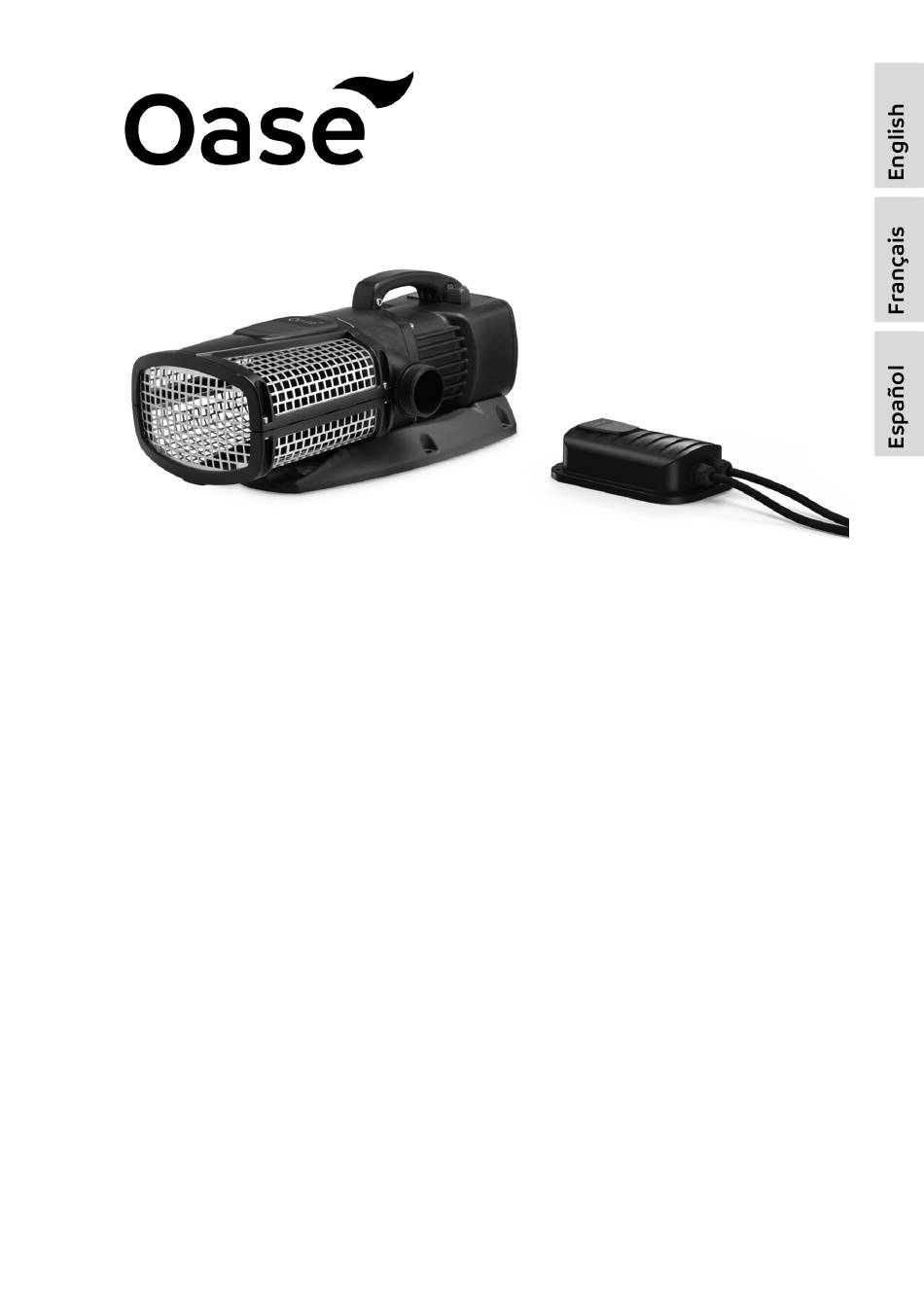

- Page 1 AquaMax Eco Expert 5300 / 12 V, 7100 / 12 V Operating instructions Notice d'emploi Instrucciones de uso...
- Page 2 Original operating manual. This operating manual belongs with the unit and must always be handed over together with the unit. WARNING WARNING Disconnect all electrical units in the water from the power supply be- fore reaching into the water. Otherwise there is a risk of injuries or death by electrocution.
-
Page 3: Table Of Contents
Table of Contents Questions, problems, missing parts? ......................4 IMPORTANT SAFETY INFORMATION ......................4 Electrical connection ..........................4 Safe operation ............................4 Intended use ..............................5 Product description ............................6 Overview ..............................6 Symbols on the unit ..........................7 Installation variants ..........................7 Seasonal Flow Control (SFC) ........................ -
Page 4: Questions, Problems, Missing Parts
• Only carry out work on the unit that is described in this manual. • Only use original spare parts and accessories. • Should problems occur, please contact the authorized customer service or OASE. WARNING Serious injury or death due to dangerous electrical voltage is possible with an electrical device in water operated with a voltage U >... -
Page 5: Intended Use
WARNING In the event of improper connection of the unit grounding, there is a risk of electric shock. The unit must be grounded in order for the electrical current to be dissipated via the grounding and to reduce the risk of electric shock in the event of a malfunction or failure. Instructions for grounding: ... -
Page 6: Product Description

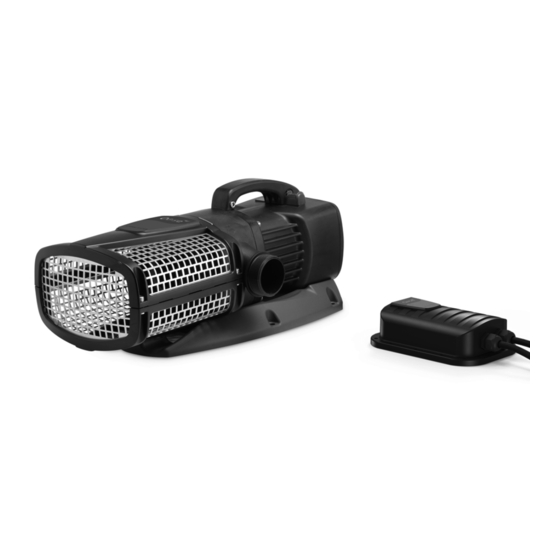

Product description Overview AMX0075 Inlet (suction side) • With filter cage (3) for submerged installation. • With sleeve for connecting a hose or pipe for dry installation. Outlet (pressure side) • Connection of the return flow to the pond (e.g. via a water course). •... -
Page 7: Symbols On The Unit
Control system connection • The control unit OASE Eco Control (accessories) is required to operate the pump. • Alternatively, the pump can be integrated in an OASE Control network. Hose sleeve ∅ 2 in (50 mm) • For information on OASE Control, visit www.atlantic-oase.com. -
Page 8: Seasonal Flow Control (Sfc)
(winter mode, transition mode and summer mode). The SFC function does not work with dry pump installation. If a skimmer, satellite filter or OASE InScenio control unit is used, it may be advisable to deactivate the SFC function, de- pending on the system. AMX0024 Installation and connection The pump can be installed submerged (in water) or dry (outside the water). -
Page 9: Turning The Pump Casing
NOTE If the pump is used for conveying excessively muddy water, the impeller unit will be subject to increased wear and will require earlier replacement. Thoroughly clean the pond or pool before installing the pump. Install the pump at a raised level above the bottom of the pond. This reduces intake of muddy water. -
Page 10: Connecting The Control System
Connecting the control system The control unit OASE Eco Control (accessories) is required to operate the pump. AMX0158 Alternatively, the pump can be integrated in an OASE Control network. For information on this topic, visit www.atlantic-oase.com. EGC0009 For further information refer to the manual for the accessories. -
Page 11: Submerged Installation Of The Unit
Submerged installation of the unit Connection AMX0021 Do not plug the power plug into the outlet yet! Installation AMX0074 • Position the pump horizontally on a firm, mud-free surface. • Ensure that the pump is securely positioned. • Only operate the pump when it is fully submerged. ... -
Page 12: Dry Installation Of The Unit
Dry installation of the unit Connection Hoses or pipes can be connected at the inlet and outlet. Recommendation: • Up to 16.5 ft length: Use hoses • From 16.5 ft length: Use pipes. AMX0025 Do not plug the power plug into the outlet yet! - Page 13 Installation AMX0079 • Position the pump horizontally on a firm, mud-free surface. • Ensure that the pump is securely positioned. To ensure stability, it is possible to screw the unit to a suitable base. AMX0169...
-
Page 14: Connecting The Switching Power Pack To The Pump
Connecting the switching power pack to the pump NOTE If water penetrates the plug connectors, this will destroy the pump. Never undo the union nuts on the plug connectors. AMX0077 • The stud on the plug connector of the pump must engage with the plug connector of the switching power pack. -
Page 15: Commissioning/Start-Up
Commissioning/start-up NOTE The unit will be destroyed if it is operated with a dimmer. It contains sensitive electrical compo- nents. Do not connect the unit to a dimmable power supply. NOTE Never allow the pump to run dry. Otherwise the pump will be destroyed. ... -
Page 16: Maintenance And Cleaning
Maintenance and cleaning CAUTION Risk of injury due to unforeseeable start-up. Internal monitoring functions can shut down the unit and reactivate it automatically. Disconnect the power plug before carrying out any work on the unit. NOTE Do not use aggressive cleaning agents or chemical solutions. These agents can damage the housing, impair the function of the device and harm animals, plants and the environment. -
Page 17: Cleaning/Replacing The Impeller Unit
Changing the bearing requires specialist knowledge and tools. Have the bearing changed by the OASE specialist dealer or send the pump to OASE. NOTE The impeller unit contains strong magnets that attract magnetic particles (e.g. iron filings). Any remaining particles can cause irreparable damage to the impeller unit and motor block. -
Page 18: Storage/Overwintering
Storage/overwintering The unit is frost-proof down to temperatures of -4 °F (-20 °C). If you wish to store the unit out- side of the pond, clean it thoroughly with a soft brush and water, check it for damage, then store it submerged or filled with water. -
Page 19: Technical Data
Technical data AquaMax Eco Expert 5300 / 12 V 7100 / 12 V Associated power pack 250 VA / 12 V DC Connection voltage V DC Max. current consumption Power consumption 30 ... 260 30 ... 260 Max. delivery rate 5100 7100 19300... -
Page 20: Permissible Water Values
Permissible water values Type Fresh water Pool water Salt water pH value 6.8 … 8.5 7.2 … 8.3 7.5 … 8.5 Hardness 0.45 … 0.84 0.45 … 0.84 1.12 … 1.68 8 … 15 8 … 15 20 … 30 Free chlorine moz/gal <0.04...
