AR-2000 AluRack Crossbar Module, 53" Kit
Page 2

Packaging Contents

Page 3

Strip Nuts and Roller Bracket

Page 4–5
Page 5–6
Page 6–7
Page 7–8
PRIME DESIGN, A SAFE FLEET BRAND
Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK
Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRIME DESIGN AR-2000-BLK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Safe Fleet PRIME DESIGN AR-2000-BLK

  • Page 1 Page 4–5 Crossbar Configurations Page 5–6 Crossbar Installation Page 6–7 Roller Installation Page 7–8 Final Instructions PRIME DESIGN, A SAFE FLEET BRAND Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...

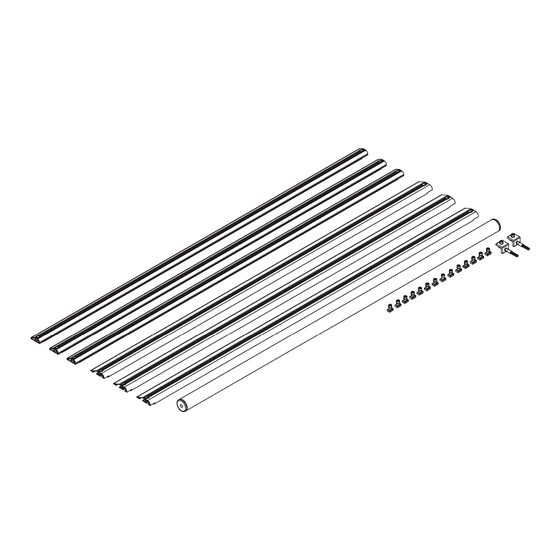

  • Page 2 CONTENTS OVERVIEW AluRack Heavy Duty Crossbar ......(Qty 3) With hardware, 53.00” Clear or Black (BLK), Anodized AluRack Standard Crossbar ......... (Qty 3) With hardware, 53.00” Clear or Black (BLK), Anodized AluRack Roller Assembly ........(Qty 1) 49.75”, with Caps Clear or Black (BLK), Anodized Crossbar and Roller Hardware ......
  • Page 3 STRIP NUT INSTALLATION ROLLER BRACKETS Install Roller Brackets into the rear most Strip Nuts, and align flush against the rear end of the Side Rail as shown. Torque Roller Bracket Bolts to 90 in-lbs. Cap Head Bolt Lock Washer Roller Bracket Prime Design Limited Warranty.
  • Page 4 CROSSBAR CONFIGURATIONS Measurements are specified according to distances from the Side Rail rear ends. It is recommended to determine your Crossbar pattern before installing them into your Strip Nuts to ensure proper order of use. *The AluRack shown in Fig.1 is for Illustrative Purposes only, and your Configuration will vary. Refer to the table in Fig. 2–3 for your product-specific Configuration.
  • Page 5 CROSSBAR CONFIGURATIONS Fig. 3–PICKUP RACKS | STD=STANDARD CROSSBAR | HD=HEAVY DUTY CROSSBAR FRONT PICKUP TRUCK Crossbar Crossbar Crossbar Crossbar Crossbar Crossbar SIDERAIL PRODUCT Crossbars spaced evenly Flush to AR1211 & AR1212 3.50” (min.) *84.00 Front Side 5’-6’ Cap (suggested) Rail End Crossbars spaced evenly Flush to AR1205-S &...
  • Page 6 LEFT SIDE RAILS AND CROSSBARS Install the Crossbars according to your configuration in the Strip Nuts as shown and torque to 90 in-lbs. NOTE: Rack shown is for Illustrative Purposes only. The order and placement of Standard Crossbars, Heavy Duty Crossbars, and Roller will vary as shown in Step 1, Fig.
  • Page 7 ROLLER INSTALLATION Insert the Roller Tube Pin and Roller Tube Spring into the Roller ends. ROLLER ASSEMBLY Insert the Roller Tube Pin on each side of the Roller Tube into the Brackets as shown. Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
  • Page 8 FINAL INSTRUCTIONS FOR WORK VANS Do not mount the AluRack to an FBM system at this time. Refer to the respective FBM Assembly Manual(s) included with your chosen rack configuration features. WARNING: Failure to position the AluRack as shown in your FBM Assembly Manual may result in damage to the ladder rack.
