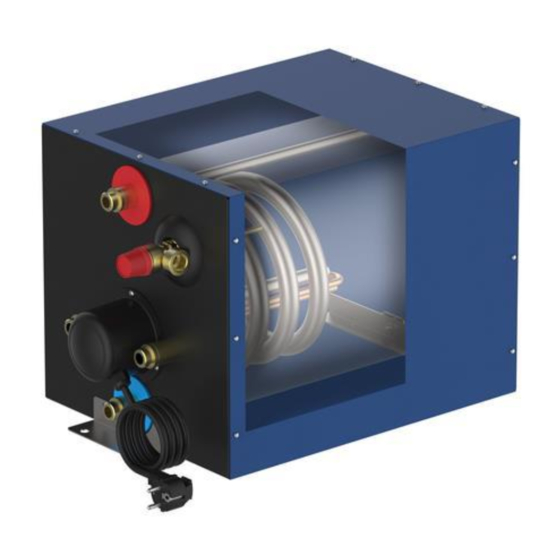

- Page 1 BQ2205 BQ2205E BQ2208 BQ2208E BQ2212 BQ2212E MARINE WATER HEATER WITH DUAL HEATING: ELECTRICAL HEATING AND INDIRECT HEATING INSTRUCTION MANUAL 210-0346 – edizione 2018-12...
- Page 2 FIG_04-1 FIG_05-1 FIG_05-2 FIG_05-3 FIG_07-1 FIG_07-2 FIG_08-1 210-0346 – edizione 2018-01...
- Page 3 (gal) kPa (psi) Kg (lb) Kg (lb) BQ2205 BOAT BOILER BQ 22 lt - 550 W - 22 (5,8) 700 (102) 14 (31) 36 (79) 230 V BQ2208 BOAT BOILER BQ 22 lt - 850 W -...
- Page 4 INSTALLATION ENGLISH Main parts (see FIG_5-3): 1. Storage tank: it is entirely made of steel submitted internally to a double enamelling treatment that is a vitreous coating cooked at over 850 °C; 2. External coating in aluminum: it is highly resistant to shocks and external solicitations, having at the same time a very pleasant design;...
- Page 5 INSTALLATION ENGLISH G. point of hot / cold water use (shower, sink, etc ..) MAX TEMPERATURE OF RETURN WATER FROM THE ENGINE COOLING CIRCUIT : 65 °C It is recommended to insulate the hot water pipes in order to avoid unnecessary waste of energy. The device is equipped with combined temperature and pressure relief valve (calibration: 700 kpa / 99°C) : it protects the tank from possible excessive pressures caused by the expansion of water during heating.
- Page 6 1/2" BSP extension fitting 130-0059 T&P valve 140-0001 cable gland 280-0014 heating element 230 V - 550 W (mod. BQ2205) 280-0015 heating element 230 V - 850 W (mod. BQ2208) 280-0016 heating element 230 V - 1250 W (mod. BQ2212) 280-0042...
- Page 7 INSTRUCTIONS FOR THE USER ENGLISH p. 7/8 FIG_08-2 FIG_09-1 FIG_14-1 FIG_11-1 210-0346 – edizione 2018-12...
- Page 8 ATI DI MARIANI SRL Via E. Mattei 461 Zona Ind. Torre del Moro n°4 47522 Cesena (FC) - ITALIA Tel. +int-39-0547 609711 Fax +int-39-0547 609724 www.nautica.atimariani.it nautica@atimariani.it 210-0338 – edizione 2018-11...
