Graco 245924 Operation And Parts

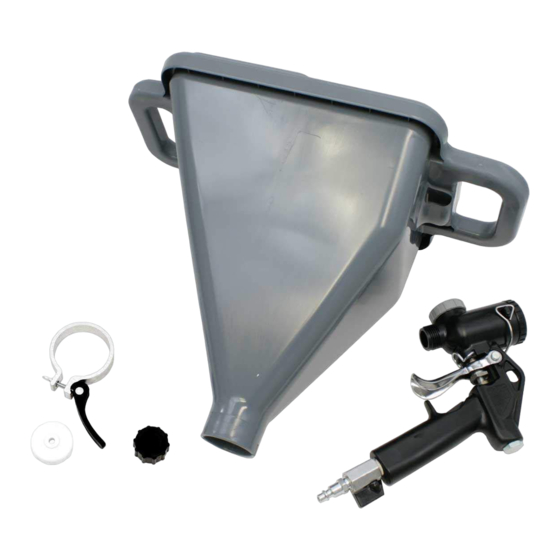

Texture gun & hopper
Hide thumbs Also See for 245924:
Table of Contents

Advertisement

Quick Links

Download this manual
Operation and Parts
Texture Gun & Hopper
For Water-Based Materials Only
Model 245924
100 psi (7 bar, 0.7 MPa) Maximum Working Air Pressure
60 psi (4.1 bar, 0.41 MPa) Maximum Working Fluid Pressure
Read warnings and instructions.
Related Manuals
309585
309586
Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
www.graco.com
Copyright 2003
TI2445a
309584A
ti2620a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 245924 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Graco 245924

Summary of Contents for Graco 245924

  • Page 1 100 psi (7 bar, 0.7 MPa) Maximum Working Air Pressure 60 psi (4.1 bar, 0.41 MPa) Maximum Working Fluid Pressure Read warnings and instructions. Related Manuals 309585 309586 TI2445a ti2620a Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441 www.graco.com Copyright 2003...
  • Page 2 • Route hoses away from traffic areas, sharp edges, moving parts and hot surfaces. Do not expose Graco hoses to temperatures above 130 F (55 C) or below -35 F (-37 C). • Store hazardous fluid in an approved container. Dispose of hazardous fluid according to all local, state and national guidelines.
  • Page 3 WARNINGS Pressurized Equipment Hazard Fluid from gun, leaks or ruptured components can splash in the eyes or on skin and cause serious injury. • Follow Pressure Relief Procedure, page 3 when you stop spraying and before cleaning, checking or servicing. •...

  • Page 4: Component Identification

    Selection chart, page 6. Hose Plug Must be installed when hopper is used. This feature is not utilized in this application. See Graco TexSpray manual for installation and operating instructions for this feature. Air Fitting Quick Disconnect used to attach air hose to gun.

  • Page 5: Basic Operation

    Basic Operation Basic Operation Hopper Installation 4. Fasten clamp. 1. The Hose Plug must be • When using hopper, the hose port plug must securely fastened to bot- be securely installed on bottom of gun. tom of gun when using the Hopper.

  • Page 6: Adjusting Spray Pattern

    Adjusting Spray Pattern Adjusting Spray Pattern Recommended Nozzle Selection Chart 1. Open air valve. Application Nozzle Size Air Volume Simulated 6 mm, white medium to Acoustic high (fine to medium) ti2448a 2. Test spray pattern on 8 mm, gray cardboard. Spray 18-30 (coarse) in.
  • Page 7 Cleanup Cleanup When you have finished spraying 6. Connect air line to gun. Turn on compressor. Open gun air valve, forcing air through tip to clear out any 1. Shut off compressor. Disconnect air line from gun. remaining material. 2. Drain remaining material into a bucket until most of 7.

  • Page 8: Troubleshooting

    Troubleshooting Troubleshooting Problem Cause Solution Material will not flow from hopper • Material too thick. • Thin material • Not enough air • Open gun air valve more • Gun adjustment set too low • Increase trigger travel • Nozzle too small •...
  • Page 9 Parts Parts Part No. Description 276871 Body, gun 234162 KIT, plugs, includes 2a, 2b and 2c PLUG, hose port PLUG, hopper port O-RING 234159 KIT, needle repair, includes 3a, 3b, 3c, 3d, 3e, and 3f NEEDLE includes o-ring GUIDE, spring, includes o-ring SPRING NUT, flow adjustment O-RING...

  • Page 10: Graco Standard Warranty

    Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
