Controls and displays

Chapter 1
Controls and displays

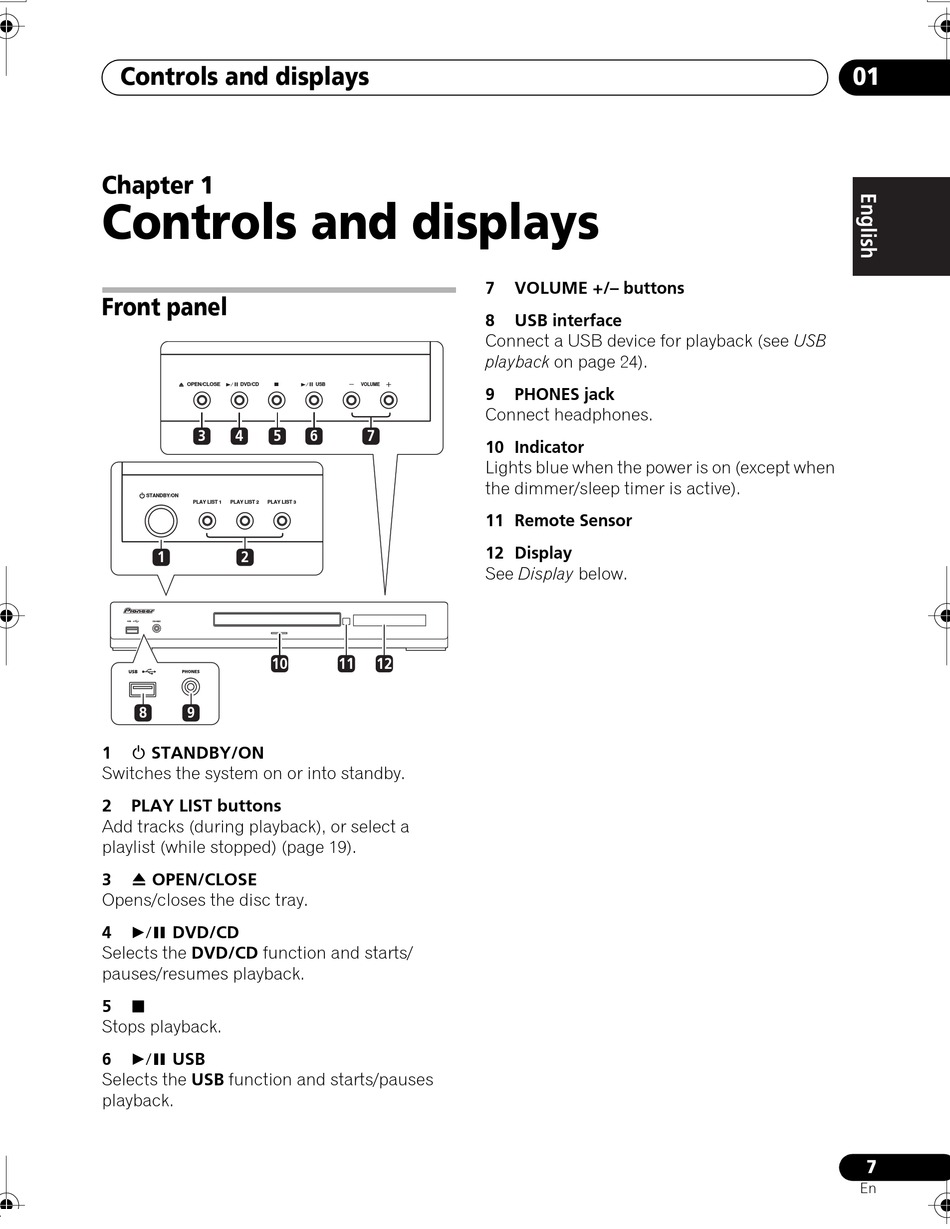

Front panel

OPEN/CLOSE DVD/CD
3 4
STANDBY/ON
PLAY LIST 1 PLAY LIST 2
1 2
8 9
 STANDBY/ON
1
Switches the system on or into standby.
2 PLAY LIST buttons
Add tracks (during playback), or select a
playlist (while stopped) (page 19).
 OPEN/CLOSE
3
Opens/closes the disc tray.
 DVD/CD
4
Selects the DVD/CD function and starts/
pauses/resumes playback.

5
Stops playback.
 USB
6
Selects the USB function and starts/pauses
playback.
USB VOLUME
5 6 7
PLAY LIST 3
10 11 12
7 VOLUME +/– buttons
8 USB interface
Connect a USB device for playback (see USB
playback on page 24).
9 PHONES jack
Connect headphones.
10 Indicator
Lights blue when the power is on (except when
the dimmer/sleep timer is active).
11 Remote Sensor
12 Display
See Display below.
