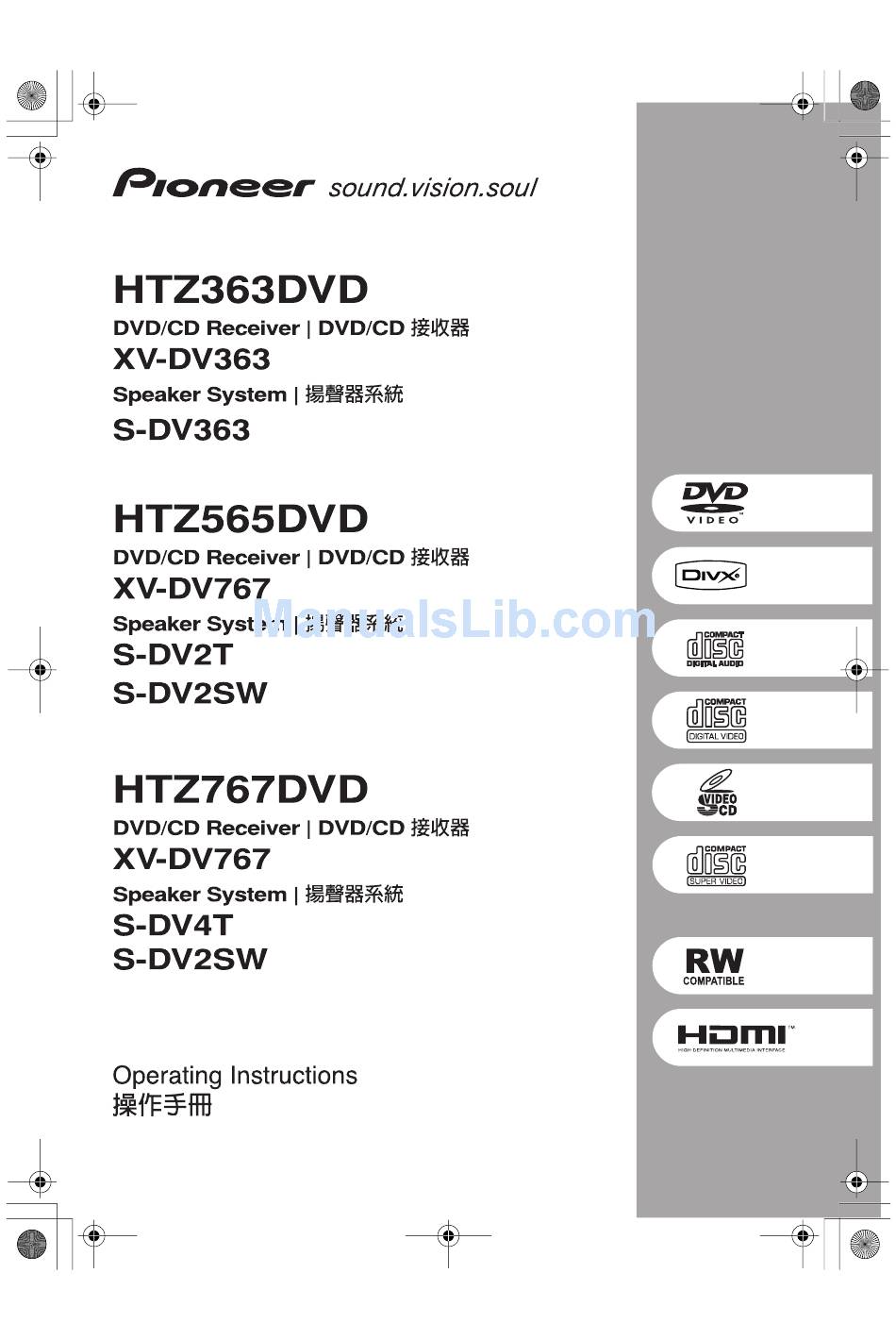

- Page 1 cover & anki.fm 1 ページ ２００７年２月３日 土曜日 午後３時１８分...
- Page 2 & anki.fm 2 ページ ２００７年２月３日 土曜日 午後３時１８分 Thank you for buying this Pioneer product. Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference.
- Page 3 Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement. This product is for general household purposes. Any...
-
Page 4: Table Of Contents
HTZ363DVD_WL 4 ページ ２００７年２月３日 土曜日 午後３時２７分 Contents 01 Controls and displays Front panel ......6 Remote control ..... .7 Display. - Page 5 About HDMI ..... . . 35 Using this unit with a Pioneer plasma television ......36 SR+ Setup for Pioneer plasma televisions .
-
Page 6: Controls And Displays
HTZ363DVD_EN_WL.book 6 ページ ２００７年２月３日 土曜日 午後３時１３分 Controls and displays Chapter 1 Controls and displays Front panel OPEN/CLOSE DVD/CD STANDBY/ON PLAY LIST 1 PLAY LIST 2 PLAY LIST 3 STANDBY/ON Switches the system on or into standby. PLAY LIST buttons Add tracks (during playback), or select a playlist (while stopped) (page 20). -
Page 7: Remote Control
SURROUND – Selects a Surround mode (page 15) or switches to stereo playback (page 16). ADVANCED – Selects a Pioneer original surround mode (page 16) . SOUND – Accesses the sound menu to adjust the tone, bass and treble, etc. - Page 8 18 and USB playback on page 25 for an explanation of these controls. TV CONTROL buttons These control Pioneer plasma televisions. 10 SHIFT Press to access the controls highlighted in green. 11 SOUND RETRIEVER – Press to restore CD quality sound to compressed audio sources (page 17).
-
Page 9: Display
HTZ363DVD_EN_WL.book 9 ページ ２００７年２月３日 土曜日 午後３時１３分 Controls and displays Display PRGSVE SOUND F.SURR. Lights during playback of a DTS source (page 15). PRGSVE Lights when progressive scan video output is selected (page 29). SOUND Lights when the Sound Retriever is active (page 17). SURR. -
Page 10: Getting Started
HTZ363DVD_EN_WL.book 10 ページ ２００７年２月３日 土曜日 午後３時１３分 Getting started Chapter 2 Getting started Home theater sound setup Place your speakers as shown below for optimal surround sound (see the Speaker Setup Guide for more placement tips). • Standard surround setup – This is a standard multichannel surround sound speaker setup for optimal 5.1 channel home theater sound. -
Page 11: Using The On-Screen Displays
HTZ363DVD_EN_WL.book 11 ページ ２００７年２月３日 土曜日 午後３時１３分 Getting started • Make sure the mic and speakers are not moved during the MCACC setup. CLEAR DISPLAY TOP MENU TUNE MENU INPUT STANDBY TUNER SOUND SETUP DVD/CD (FM/AM) RETRIEVER SHIFT ENTER HOME OPEN/CLOSE LINE MENU RETURN PLAYLIST MCACC... -
Page 12: Playing Discs
HTZ363DVD_EN_WL.book 12 ページ ２００７年２月３日 土曜日 午後３時１３分 Getting started Button What it does RETURN Returns to the main menu without saving changes • The button guide at the bottom of every OSD screen shows you which buttons you’ll need to use for that screen. Playing discs The basic playback controls for playing DVD, CD, Video CD/Super VCD, DivX video and... -
Page 13: Resume And Last Memory
HTZ363DVD_EN_WL.book 13 ページ ２００７年２月３日 土曜日 午後３時１３分 Getting started Resume and Last Memory When you stop playback of a disc, RESUME shows in the display indicating that you can resume playback from that point. With DVDs and Video CD/Super VCDs, even if ejected, the play position is stored in memory. The next time you load the disc, the display shows LAST MEM and you can resume playback. -
Page 14: Improving Poor Fm Reception
HTZ363DVD_EN_WL.book 14 ページ ２００７年２月３日 土曜日 午後３時１３分 Getting started Improving poor FM reception If you’re listening to an FM station in stereo but the reception is weak, you can improve the sound quality by switching to mono. Tune to an FM radio station then press SHIFT+SETUP. -
Page 15: Listening To Your System
HTZ363DVD_EN_WL.book 15 ページ ２００７年２月３日 土曜日 午後３時１３分 Listening to your system Chapter 3 Listening to your system Auto listening mode The Auto listening mode is the simplest way to listen to any source as it was mastered: the output from the speakers mirrors the channels in the source material. -
Page 16: Using Front Stage Surround Advance
HTZ363DVD_EN_WL.book 16 ページ ２００７年２月３日 土曜日 午後３時１３分 Listening to your system Using Front Stage Surround Advance The Front Stage Surround Advance modes are effective when you are using the Front surround speaker setup as described on page 10. TOP MENU TUNE MENU SETUP ENTER HOME MENU... -
Page 17: Using The Sound Retriever
HTZ363DVD_EN_WL.book 17 ページ ２００７年２月３日 土曜日 午後３時１３分 Listening to your system Use / to select EQ ON or EQ OFF then press ENTER to confirm. • If you select EQ OFF, equalization is set to off but speaker settings (channel delay and channel level) remain in effect. •... -
Page 18: Disc Playback Features
playing audio_video discs.fm 18 ページ ２００７年２月５日 月曜日 午後４時８分 Disc playback features Chapter 4 Disc playback features Important • Many of the functions covered in this chapter apply to DVD discs, Video CDs/ Super VCDs, CDs, DivX video and WMA/ MP3/MPEG-4 AAC/JPEG discs, although the exact operation of some varies slightly with the kind of disc loaded. -
Page 19: Browsing Dvd Or Video Cd/Super Vcd Discs With The Disc Navigator
HTZ363DVD_EN_WL.book 19 ページ ２００７年２月３日 土曜日 午後３時１３分 Disc playback features While the slideshow is running: Button What it does Pauses the slideshow (or audio); press again to restart. Jumps to the previous picture (or audio file with audio playback). Jumps to the next picture (or audio file with audio playback). -
Page 20: Navigator
HTZ363DVD_EN_WL.book 20 ページ ２００７年２月３日 土曜日 午後３時１３分 Disc playback features Browsing WMA, MP3, MPEG-4 AAC, DivX video and JPEG files with the Disc Navigator Use the Disc Navigator to find a particular file or folder by filename. Press HOME MENU and select ‘Disc Navigator’... -
Page 21: Listening To Playlists
HTZ363DVD_EN_WL.book 21 ページ ２００７年２月３日 土曜日 午後３時１３分 Disc playback features • To add files without the on-screen display, simply press PLAY LIST 1, 2 or 3 during normal playback of the file you want (except when a JPEG slideshow is playing at the same time as audio). Listening to playlists •... -
Page 22: Creating A Program List
HTZ363DVD_EN_WL.book 22 ページ ２００７年２月３日 土曜日 午後３時１３分 Disc playback features Select ‘Random’ then select an option. • For DVD discs, select Random Title or Random Chapter. • For CDs and Video CD/Super VCDs, select On or Off to switch random play on or off. •... -
Page 23: Searching A Disc
HTZ363DVD_EN_WL.book 23 ページ ２００７年２月３日 土曜日 午後３時１３分 Disc playback features Searching a disc You can search DVD discs by title or chapter number, or by time; CDs and Video CD/Super VCDs by track number or time; DivX video discs by time. Press HOME MENU and select ‘Play Mode’. -
Page 24: Switching Camera Angles
HTZ363DVD_EN_WL.book 24 ページ ２００７年２月３日 土曜日 午後３時１３分 Disc playback features Switching camera angles Some DVD discs feature scenes shot from two or more angles — check the disc box for details. When a multi-angle scene is playing, a icon appears on screen (this can be switched off if you prefer —... -
Page 25: Usb Playback
(MP3 players) of format FAT16/32. It is not possible to connect this unit to a personal computer for USB playback. • Pioneer cannot guarantee compatibility (operation and/or bus power) with all USB mass storage devices and assumes no responsibility for any loss of data that may occur when connected to this unit. -
Page 26: Scanning Files
HTZ363DVD_EN_WL.book 26 ページ ２００７年２月３日 土曜日 午後３時１３分 USB playback Scanning files You can fast-scan forward or backward at various different speeds. • During playback, press or . Press repeatedly to increase the scanning speed (shown on-screen). • To resume playback, press (play). Playing a JPEG slideshow Press ... -
Page 27: Surround Sound Settings
HTZ363DVD_EN_WL.book 27 ページ ２００７年２月３日 土曜日 午後３時１３分 Surround sound settings Chapter 6 Surround sound settings Using the Setup menu From the Setup menu you can access all the surround sound settings of the system including channel levels, speaker distances and dynamic range adjustment. The Auto MCACC feature (page 10) should give you the best surround sound setup. -
Page 28: Video Adjust Menu
HTZ363DVD_EN_WL.book 28 ページ ２００７年２月３日 土曜日 午後３時１３分 Video Adjust menu Chapter 7 Video Adjust menu Video Adjust menu From the Video Adjust screen you can adjust settings that affect picture presentation. Press HOME MENU and select ‘Video Adjust’ from the on-screen display. Video Adjust Make settings using ///... -
Page 29: Initial Settings Menu
HTZ363DVD_EN_WL.book 29 ページ ２００７年２月３日 土曜日 午後３時１３分 Initial Settings menu Chapter 8 Initial Settings menu Using the Initial Settings menu The Initial Settings menu provides audio and video output settings, parental lock settings, and display settings, among others. If an option is grayed out it means that it cannot be changed at the current time. -
Page 30: Language Settings
HTZ363DVD_EN_WL.book 30 ページ ２００７年２月３日 土曜日 午後３時１３分 Initial Settings menu Setting Option HDMI Color Full range RGB (See Connecting using HDMI on page 35.) * Default changes depending on device connected. Component Component Out Interlace (See also Connecting Progressive using the component video output on page 34.) Language settings Setting... -
Page 31: Options Settings
HTZ363DVD_EN_WL.book 31 ページ ２００７年２月３日 土曜日 午後３時１３分 Initial Settings menu Setting Option Angle Indicator Options settings Setting Option Parental Lock – DivX(R) VOD Display Parental Lock • Default level: Off; Default password: none; Default Country/Area code: us (2119) To give you some control over what your children watch on your DVD player, some DVD- Video discs feature a Parental Lock level. -
Page 32: About Divx® Vod Content
Initial settings menu.fm 32 ページ ２００７年２月３日 土曜日 午後３時３３分 Initial Settings menu Setting/changing the Country/Area code You can find the Country/Area code list on page 49. Select ‘Country Code’, input your password, then press ENTER. Select a Country/Area code then press ENTER. There are two ways you can do this: •... -
Page 33: Other Connections
Other connections.fm 33 ページ ２００７年２月５日 月曜日 午後３時５３分 Other connections Chapter 9 Other connections Connecting external antennas For an external AM antenna, use 5 m to 6 m of vinyl-insulated wire and set up either indoors or outdoors. Leave the loop antenna connected. Only use the included AM loop antenna. -
Page 34: Connecting The S-Video Output
HTZ363DVD_EN_WL.book 34 ページ ２００７年２月３日 土曜日 午後３時１３分 Other connections Connecting the S-video output If your TV has an S-video input, you can use this instead of the standard video output for a better quality picture. • Use an S-video cable to connect the S- VIDEO OUT to an S-video input on your TV. -
Page 35: Connecting Using Hdmi
HTZ363DVD_EN_WL.book 35 ページ ２００７年２月３日 土曜日 午後３時１３分 Other connections Connecting using HDMI If you have a HDMI or DVI (with HDCP) equipped monitor or display, you can connect it to this player using a commercially available HDMI cable for high quality digital video. See About HDMI below for more about the HDMI connection. -
Page 36: Using This Unit With A Pioneer Plasma Television
1 This system is compatible with all Pioneer plasma televisions from 2003 onward. 2 The 3-ringed SR+ cable from Pioneer is commercially available under the part number ADE7095. Contact the Pioneer Customer Support division for more information on obtaining an SR+ cable. -
Page 37: Switching On The Sr+ Mode
• Using a cable with mono mini-plugs on either side (sold separately), connect the CONTROL IN jack on another Pioneer component to the CONTROL OUT jack on this unit. This will allow you to control the other component by pointing its remote at this unit. -
Page 38: Additional Information
HTZ363DVD_EN_WL.book 38 ページ ２００７年２月３日 土曜日 午後３時１３分 Additional information Chapter 10 Additional information Optional system settings All the available settings in the standby setup menu are listed below. See the notes in each section for more information about the settings. The first setting in each section is the default. -
Page 39: Setting The Sleep Timer
HTZ363DVD_EN_WL.book 39 ページ ２００７年２月３日 土曜日 午後３時１３分 Additional information • NORMAL – Regular CD playback; some DTS-encoded CDs output a noisy signal. • DTS-CD – Proper decoding of DTS- encoded CDs; the beginning of regular CD tracks my be skipped. Key lock setting •... -
Page 40: Disc Compatibility Table
HTZ363DVD_EN_WL.book 40 ページ ２００７年２月３日 土曜日 午後３時１３分 Additional information About DualDisc playback A DualDisc is a new two -sided disc, one side of which contains DVD content video, audio, etc. while the other side contains non-DVD content such as digital audio material. The non-DVD, audio side of the disc is not compliant with the CD Audio specification and therefore may not play. -
Page 41: About Divx
HTZ363DVD_EN_WL.book 41 ページ ２００７年２月３日 土曜日 午後３時１３分 Additional information About DivX DivX is a compressed digital video format ® created by the DivX video codec from DivX, Inc. This player can play DivX video files burned on CD-R/ RW and DVD-R/ ROM discs. Keeping the same terminology as DVD-Video, individual DivX video files are called ‘Titles’. -
Page 42: Using And Taking Care Of Discs
This unit is designed for use with conventional, fully circular discs only. Pioneer disclaims all liability arising in connection with the use of shaped discs. -
Page 43: Cleaning The Pickup Lens
The DVD player’s lens should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest Pioneer authorized service center. Although lens cleaners are commercially available, we do not recommend using them since some may damage the lens. -
Page 44: Troubleshooting
Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work. -
Page 45: Dvd/Cd/Video Cd Player
HTZ363DVD_EN_WL.book 45 ページ ２００７年２月３日 土曜日 午後３時１３分 Additional information Problem Remedy • Press and hold (stop) on the front panel for about five seconds. The disc tray SND. DEMO shows in the display and the unit ejects automatically to indicate the Sound Demo mode is disabled. can’t be controlled. -
Page 46: Tuner
HTZ363DVD_EN_WL.book 46 ページ ２００７年２月３日 土曜日 午後３時１３分 Additional information Problem Remedy CD-ROM disc is not • Make sure that the CD-ROM was recorded using the ISO 9660 disc format. See recognized. Disc compatibility table on page 40 for more on disc compatibility. DVD-ROM disc is not •... -
Page 47: Error Messages
HTZ363DVD_EN_WL.book 47 ページ ２００７年２月３日 土曜日 午後３時１３分 Additional information Problem Remedy No HDMI video output. • Make sure that you’ve selected this player as the HDMI input in the settings for the component you’re using (refer to the component’s instruction manual). • Check that the HDMI cable is connected properly and isn’t damaged. •... -
Page 48: Resetting The System
Additional information Message Description EEP ERR • Contact your Pioneer authorized service center or your dealer for servicing. EXIT • Appears when a menu is automatically exited after a set period of inactivity. Resetting the system Use the front panel controls to reset all system settings to the factory default. -
Page 49: Language Code List
HTZ363DVD_EN_WL.book 49 ページ ２００７年２月３日 土曜日 午後３時１３分 Additional information Language code list Language (Language code letter), Language code Japanese (ja), 1001 Estonian (et), 0520 English (en), 0514 Basque (eu), 0521 French (fr), 0618 Persian (fa), 0601 German (de), 0405 Finnish (fi), 0609 Italian (it), 0920 Fiji (fj), 0610 Spanish (es), 0519 Faroese (fo), 0615... -
Page 50: Specifications
Additional_information.fm 50 ページ ２００７年２月３日 土曜日 午後５時３４分 Additional information Specifications • Amplifier section RMS Power Output: Front, Center, Surround . . . 100 W per channel (1 kHz, 10 % T.H.D., 4 Ω) Subwoofer. . . 100 W (100 Hz, 10 % T.H.D., 4 Ω) •... - Page 51 Manufactured under license from Dolby Laboratories.“Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. “DTS” and “DTS Digital Surround” are registered trademarks of DTS, Inc. Published by Pioneer Corporation. Copyright © 2007 Pioneer Corporation. All rights reserved.
- Page 52 253 Alexandra Road, #04-01, Singapore 159936 TEL: 65-6472-7555 PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: (03) 9586-6300 PIONEER ELECTRONICS DE MEXICO S.A. DE C.V. Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico,D.F. 11000 TEL: 55-9178-4270 K002_B_En Printed in <XRE3161-A>...
