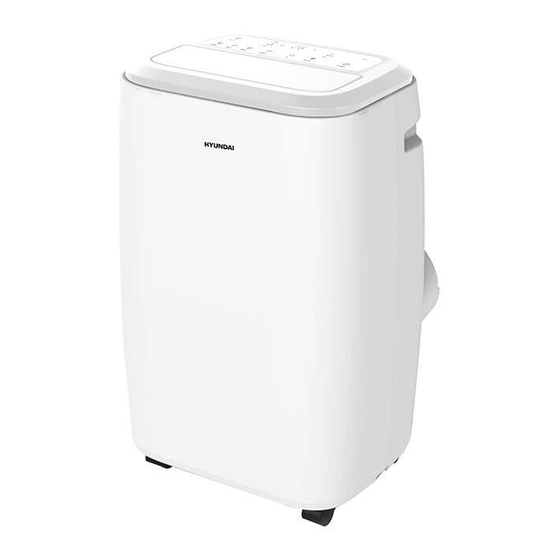

- Page 1 PORTABLE AIRCON HYD14KPACWA...
-
Page 3: Table Of Contents
Content 1. Safety Awareness .................................. 1 2. Components ..................................13 3. Appearance and Function of Control Panel........................15 4. Appearance and Function of Remote Control ......................... 16 5. Operation Introduction ................................ 17 6. Operation ....................................18 7. Installation Explanations ..............................20 8. -
Page 4: Safety Awareness
1. Safety Awareness VERY IMPORTANT! Please do not install or use your portable air conditioner before you have carefully read this manual. Please keep this instruction manual for an eventual product warranty and for future reference. Warning Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. - Page 5 Specific information regarding appliances with R290 refrigerant gas. • Thoroughly read all the warnings. • When defrosting and cleaning the appliance, do not use any tools other than those recommended by the manufacturing company. • The appliance must be placed in an area without any continuously sources of ignition (for example: open flames, gas, or electrical appliances in operation).
- Page 6 General Safety Instruction 1. The appliance is for indoor use only. 2. Do not use the unit on a socket under repairs or not installed properly 3. Do not use the unit, follow these precautions: A: Near to source of fire. B: An area where oil is likely to splash.
- Page 7 throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.
- Page 8 — If any parts damage, please contact the dealer or a designated repair shop; — In case of any damage, please turn off the air switch, disconnect the power supply, and contact the dealer or a designated repair shop; — In any case, the power cord shall be firmly grounded. —...
- Page 9 system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere. 1.8 Checks to the refrigeration equipment Where electrical components are being changed, they shall be fit for the purpose and to the correct specification.
- Page 10 this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specified by the manufacturer.
- Page 11 8 CHARGING PROCEDURES In addition to conventional charging procedures, the following requirements shall be followed. - Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them.
- Page 12 11 RECOVERIES When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge are available.
- Page 13 on the safety. Care should be taken to ensure a sufficient ventilation before. Ventilated room – (see Clause GG.5) Safety of the appliance depends on the ventilation of the room. Switching off the appliance or opening of the housing has no significant effect on the safety.
- Page 14 • Ensure sufficient ventilation at the equipment location. • Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible. • Discharge capacitors in a way that won’t cause any spark. • Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside.
- Page 15 The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.
-
Page 16: Components
2. Components Fig.1 Louver Drainage outlet Control panel Air outlet Front panel Power cord Castor Drainage outlet Air inlet... - Page 17 Accessories Part Description Quantity Exhaust hose Housing adaptor Window Connector Remote Controller Window Kit 1 (optional) Dowel 2 (optional) Water pipe 1 (optional) Batteries 2 (optional) After unpacking, please check whether the above-mentioned accessories are included, and check their purposes in the installation introduction in this manual.
-
Page 18: Appearance And Function Of Control Panel
3. Appearance and Function of Control Panel Cooling + WIFI Cooling Power on/off Fan speed Dehumidifying Temperature up WIFI Temperature down High fan speed Operation mode Timer on/off Medium fan speed Swing on/off Low fan speed Water full Sleep mode... -
Page 19: Appearance And Function Of Remote Control
4. Appearance and Function of Remote Control Remote Control POWER Power on/off TIMER Timer on/off MODE Operation MODE TEMP- Temperature down TEMP+ Temperature up SPEED Fan speed Sleep Sleep mode SWING Auto swing Notes: - Do not drop the remote controller. - Do not place the remote controller in a location exposed to direct sunlight. -
Page 20: Operation Introduction
5. Operation Introduction Before starting operations in this section: 1) Find a place where there is power supply nearby. 2) As shown in Fig.5 and Fig.5a, install the exhaust hose, and adjust the window position well. Fig.5 Fig.5a 3) Connect drain hose well (only for using heating model)； 4) Insert the power cord into a grounded AC220~240V/50Hz socket;... -
Page 21: Operation
6. Operation 6.1. Before using Notice: Operation temperature range: Maximum cooling Minimum cooling DB/WB(℃) 35/24 18/12 Checkup whether the exhaust hose has been mounted properly. Cautions for cooling and dehumidifying operations: When using functions on cooling and dehumidifying, keep an interval of at least 3 minutes between each ON/OFF. - Page 22 To deactivate the timer function, press “Timer” button until timer indicator turns off. 6.7 Auto SWING After machine turns on, press this key, the louver will swing continuously up and down; by pressing this button again the movement will stop and the louver remain in that position. 6.8 SLEEP mode - While in cooling mode, press the SLEEP key to set the temperature.
-
Page 23: Installation Explanations
7. Installation Explanations 7.1 Installation Explanations: A removal air-conditioner shall be installed in the flat and empty place all around. Don’t block the air outlet, and the required distance around should be at least 30cm. (See Fig.8) Should not be installed in wet location, such as the laundry room. Socket wiring should be in accordance with the local electric safety requirements. - Page 24 Temporary installation Twist the housing adaptor and the window Connector to the ends of the exhaust hose. Insert the fixing clip of the housing adaptor into the openings at back of the air conditioner. Put the other end of the exhaust hose to the near windowsill (see Fig.9). Window Slider Kit Installation The installation manner of window slider kit is mostly in “horizontal”...
- Page 25 Universal caulking kit accessory for mobile air conditioner Suitable for windows and doors Included in this kit: 1 piece of fabric 1 roll of tape gripping adhesive 1. Open the window and clean the 2. Cut large strips of adhesive gripping doors and frame before gluing the tape to the dimensions of the window.
- Page 26 6. Your caulking kit is now installed, 5. Open the window gently and open you can now turn on and enjoy the the zipper of the fabric piece (at level coolness of your mobile air of the bottom or middle of the window) conditioner! then insert the exhaust duct into the If you no longer want to use your...
- Page 27 7.3 Water Full alarm The inner water tray inside the air-conditioner has one water level safety switches, it controls water level. When water level reaches an anticipated height, the water full indicator lights up. (If water splash motor is damaged, when the water is full, please remove the rubber blockage at the bottom of unit, and all water will be drained outside.)
-
Page 28: Maintenance Explanations
8. Maintenance Explanations Declaration: 1) Before cleaning, be sure to disconnect the unit from any electric supply outlet; 2) Do not use gasoline or other chemicals to clean the unit; 3) Do not wash the unit directly; 4) If the conditioner is damaged, please contact the dealer or repair shop. 8.1 Air Filter If the air filter becomes clogged with dust/dirt, the air filter should be cleaned once every two weeks. -
Page 29: Troubleshooting
9. Troubleshooting Troubles Possible Causes Suggested Remedies - Water full indicator lamp blinks, Dump the water out of the and water tray is full. water tray. - Room temperature is higher than 1.Unit does not start the setting temperature. (Electric Reset the temperature when pressing on/off heating mode) - Page 31 Kogan Australia Pty Ltd 139 GLADSTONE STREET SOUTH MELBOURNE, VIC 3205 AUSTRALIA https://help.kogan.com/ Imported/Distributed by Kogan Australia Pty Ltd Licensed by HYUNDAI Corporation Holdings, Korea...
