Cyclops Lighting CL200B-E User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
Moving-Head
KEEP THIS MANUAL FOR FUTURE NEEDS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL200B-E and is the answer not in the manual?

Questions and answers

Related Manuals for Cyclops Lighting CL200B-E

Summary of Contents for Cyclops Lighting CL200B-E

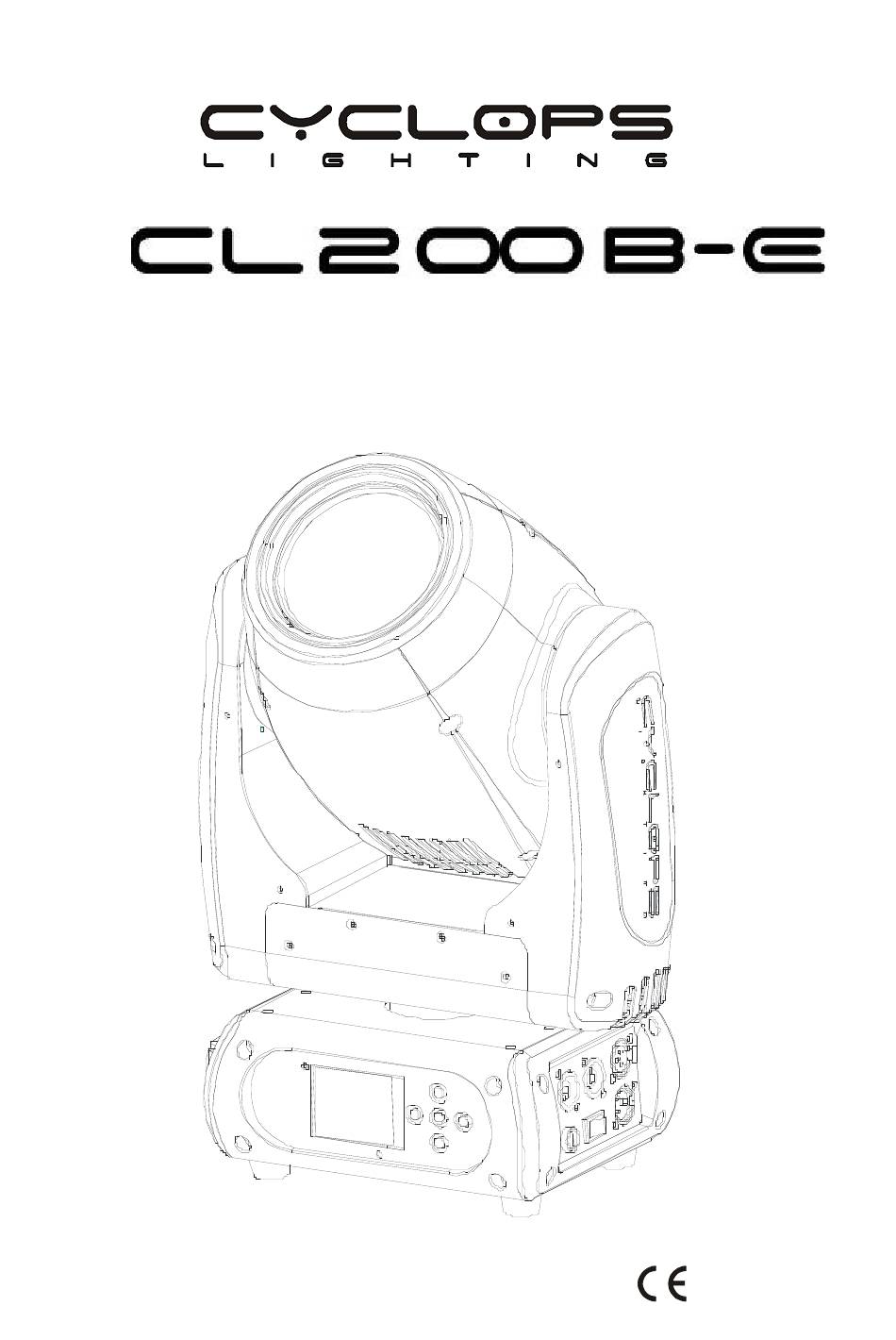

  • Page 1 USER MANUAL Moving-Head KEEP THIS MANUAL FOR FUTURE NEEDS...

  • Page 2: Safety Instructions

    Every person involved with the installation, operation and maintenance of this device has to - be qualified - follow the instructions of this manual - consider this manual to be part of the total product - keep this manual for the entire service life of the product pass this manual on to every further owner or user of the product download the latest version of the user manual from the Internet CAUTION!

  • Page 3: Health Hazard

    If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. Please make sure that there are no obvious transport damages. Should you notice any damages on the A/C connection cable or on the casing, do not take the device into operation and immediately consult your local dealer.

  • Page 4: Operating Determinations

    OPERATING DETERMINATIONS This device is a moving-head lighting effect for creating decorative effects. This product is only allowed to be operated with an alternating voltage of 100-240 V, 50/60 Hz and was designed for indoor use only. This device is designed for professional use, e.g. on stages, in clubs, bars, theatres etc. Lighting effects are not designed for permanent operation.

  • Page 5: Description Of The Device

    DESCRIPTION OF THE DEVICE Features Source Light source: Osram Sirius HRI 132W discharge lamp   Lamp life: 10.000 hours  Luminous Flux: 6200lumen, 354200lux@5m  Control: Remote on/off via DMX  Ballast: switching mode power supply Optical System  Beam angle: 2°...
  • Page 6   Overview Objective lens Base     Handle Wireless indicator Display Microphone Left button Down buttom (10) Enter button (11) Up button (12) Right button 7 8 9 10 11 12 (13) 3-PIN DMX input socket (14) 3-PIN DMX output socket (15) Power input (16) Power output (17) Fuseholder...

  • Page 7: Installation

    INSTALLATION Installing/Replacing the lamp       DANGER TO LIFE! Only install the lamp with the device switched off! Unplug from mains before!     For the installation, you need one Osram Sirius HRI 132 W discharge lamp.   The lamp must only be changed when wearing appropriate protective clothing (protection glasses, protection gloves, helmet with sight, leather apron).

  • Page 8: Inserting/Exchanging Gobos

    Attention: Please note, the Osram Sirius HRI 132 W lamp is not a hot-restrike type. You must wait approximately 10 minutes before you can attempt to strike the lamp once it has been turned off!     Do not operate this device with opened cover! Inserting/Exchanging gobos DANGER! Install the gobos with the device switched off only.

  • Page 9: Danger Of Fire

    The projector has to be installed out of the reach of people. If the projector shall be lowered from the ceiling or high joists, professional trussing systems have to be used. The projector must never be fixed swinging freely in the room. Caution: Projectors may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do NOT install the projector! Before rigging make sure that the installation area can hold a minimum point load of 10 times the projector's...
  • Page 10 The manufacturer cannot be made liable for damages caused by incorrect installations or insufficient safety precautions! Install the safety bond by inserting the quick link in the hole on the bottom of the base. Pull the safety bond over the trussing system etc. Insert the end in the quick link and tighten the fixation screw. The maximum drop distance must never exceed 20 cm.

  • Page 11: Dmx-512 Connection / Connection Between Fixtures

    DMX-512 connection / connection between fixtures Projector 1 Projector 2 Projector 3 Starting address 1 Starting address 20 Starting address 39 120 Ohms DMX-512 Controller The wires must not come contact with each other, otherwise the fixtures will not work at all, or will not work properly. Please note, the starting address depends upon which controller is being used.

  • Page 12: Connection With The Mains

    Connection with the mains Connect the device to the mains with the enclosed power supply cable. The occupation of the connection-cables is as follows: Cable International Brown Live Blue Neutral Yellow/Green Earth   The earth has to be connected! If the device will be directly connected with the local power supply network, a disconnection switch with a minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.

  • Page 13: Dmx-Protocol

    Note: After switching on, the device will automatically detect whether DMX 512 data is received or not. If there is no data received at the DMX-input, the display will flash. This situation can occur if: - the XLR plug (cable with DMX signal from controller) is not connected with the input of the device. - the controller is switched off or defective, if the cable or connector is defective or the signal wires are swap in the input connector.
  • Page 14   Strobe effect slow to fast No function (shutter open) Pulse-effect in sequences No function (shutter open) Random strobe effect slow to fast No function (shutter open) Dimmer Dimmer(Close to Open) Indexed Indexed With BackOut Forward Spin Color Function Reverse Spin Continuous Color Bounce Indexed &...

  • Page 15: Control Board

      Stop to fastest Continuous Positioning from 0-360 degrees Indexed Position 1 (Open) Position 2 ~ Position 18 Indexed With Backout Position 1 (Open) Position 2 ~ Position 18 Gobo Indexed With Shake Position 2 Position 3 ~ Position 18 Forward Wheel Spin Stop to fastest Reverse Wheel Spin...
  • Page 16   DMX Address① DMX address setting ON/OFF Lamp On/Off Lamp On Automatic ON/OFF Lamp On/off when power on DMX Control ON/OFF DMX control or not 80~139℃, 120℃ /176~282℉, 248℉ Lamp off if Temperature① temperature continuously over for 5 minutes Lamp Adjust① PAN……...
  • Page 17   UI Set Mic Sens. ③ 0~99%,60% Sensitivity of Mic No Signal① Close/Hold/Auto/Music Mode when no Temperature. C/F① Fahrenheit/Celsius signal Fans Mode① Auto Speed /High Speed Temperature at Hibernation① OFF, 01M~99M，15M ℃/℉ 02~60m 02m Backlight① Fans mode ON/OFF Flip Display① Sleeping mode 00~31 10 Display Bright③...
  • Page 18   Scenes Record ScXX=>ScXX Auto Input scenes Connect DMX address setting With this function, you can adjust the desired DMX-address via the Control Board. Select “DMX Address“ by pressing Up or Down. Press the Enter-button, adjust the DMX address by pressing Up or Down. Press the Enter-button to confirm.
  • Page 19   by pressing Up or Down. Movement PAN Reverse With this function you can reverse the PAN-movement. TILT Reverse With this function you can reverse the TILT-movement. PAN degree With this function you can select the PAN-degree. • Select “PAN degree” by pressing Up or Down. •...
  • Page 20   activated, the keys will be automatically locked as soon as exit the menu. In order to deactivate or temporarily deactivate the keylock function, press the button UP-DOWN-LEFT-RIGHT-ENTER regain access to the menu commands. Users User mode With this function, you can create user defined channel orders. Edit User With this function, you can adjust the Preset user defined channel order.
  • Page 21   Category _Configuration PAN_INVERT 0x0600 TILT_INVERT 0x0601 Category _Control IDENTIFY_DEVICE 0x1000 RESET_DEVICE 0x1001 Reload Default With this function you can restore the factory settings of the device. The different settings (marked in the table) will be set back to the default values (shaded). Program Play Slave Revice With this function, you can define the device as slave.
  • Page 22   • Select “Sequence” by pressing Up or Down. • Press the Enter-button to confirm. • Press Up or Down to select “Master” or “Alone”. The selection "Alone" means Stand Alone-mode and "Master" that the device is defined as master. •...

  • Page 23: Error Messages

      Error Messages When you turn on the fixture, it will make a reset first. The display may show an error message while there are problems with one or more channels. The error message stands for the channels equipped with a testing sensor. For example, when the display shows “Err channel PAN”, it means there is some error in the horizontal movement (PAN), control-channel 1.

  • Page 24: Replacing The Fuse

      CAUTION! The lens has to be replaced when it is obviously damaged, so that its function is impaired, e. g. due to cracks or deep scratches! The objective lens will require weekly cleaning as smoke-fluid tends to building up residues, reducing the light-output very quickly.
