Summary of Contents for Cyclops Lighting CL280B-E

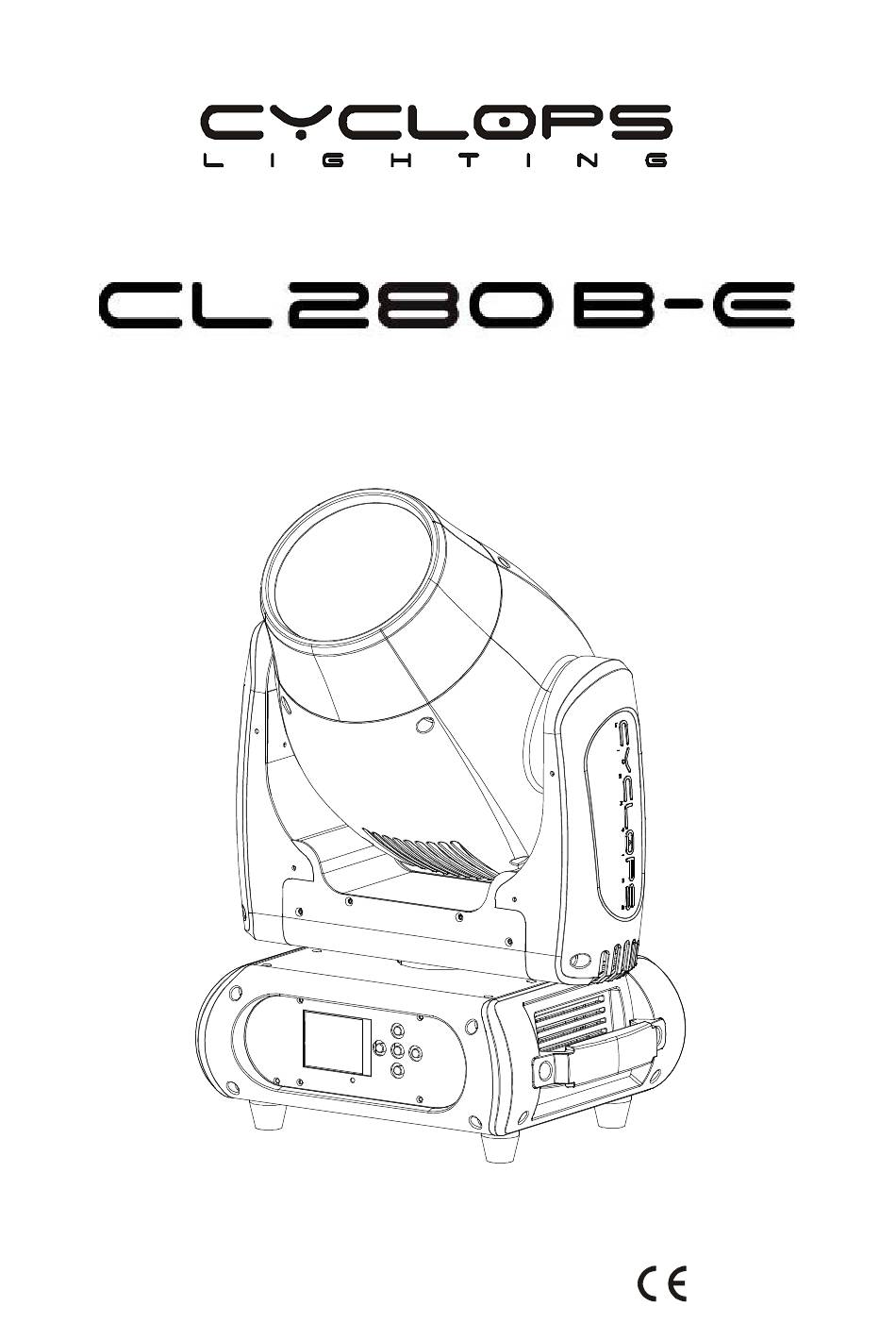

- Page 1 USER MANUAL Moving-Head KEEP THIS MANUAL FOR FUTURE NEEDS...
-
Page 2: Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to - be qualified - follow the instructions of this manual - consider this manual to be part of the total product - keep this manual for the entire service life of the product pass this manual on to every further owner or user of the product download the latest version of the user manual from the Internet CAUTION! -
Page 3: Health Hazard
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. Please make sure that there are no obvious transport damages. Should you notice any damages on the A/C connection cable or on the casing, do not take the device into operation and immediately consult your local dealer. -
Page 4: Operating Determinations
OPERATING DETERMINATIONS This device is a moving-head lighting effect for creating decorative effects. This product is only allowed to be operated with an alternating voltage of 100-240 V, 50/60 Hz and was designed for indoor use only. This device is designed for professional use, e.g. on stages, in clubs, bars, theatres etc. Lighting effects are not designed for permanent operation. -
Page 5: Description Of The Device
DESCRIPTION OF THE DEVICE Features Source Light source: Osram Sirius HRI 230W discharge lamp Led life: 3.000 hours Luminous Flux: 10150lumen, 61200lux@20m Control: Remote on/off via DMX Ballast: switching mode power supply Optical System Beam angle: 2.5° Pan: 360° (4.0 sec) or 540°(3.58 sec), Tilt: 265° (2.8 sec) 16-bit resolution Auto repositioning Colors... - Page 6 Overview Objective lens Base Handle Wireless indicator Display Microphone Left button Down buttom (10) Enter button (11) Up button (12) Right button (13) 3-PIN DMX input socket (14) 3-PIN DMX output socket (15) Power input (16) Power output (17) Fuseholder (18) Power switch...
-
Page 7: Installation
INSTALLATION Installing/Replacing the lamp DANGER TO LIFE! Only install the lamp with the device switched off! Unplug from mains before! For the installation, you need one Osram Sirius HRI 230 W discharge lamp. The lamp must only be changed when wearing appropriate protective clothing (protection glasses, protection gloves, helmet with sight, leather apron). -
Page 8: Inserting/Exchanging Gobos
Attention: Please note, the Osram Sirius HRI 230 W lamp is not a hot-restrike type. You must wait approximately 10 minutes before you can attempt to strike the lamp once it has been turned off! Do not operate this device with opened cover! ... -
Page 9: Danger Of Fire
When rigging, derigging or servicing the fixture staying in the area below the installation place, on bridges, under high working places and other endangered areas is forbidden. The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time. -
Page 10: Dmx-512 Connection / Connection Between Fixtures
The manufacturer cannot be made liable for damages caused by incorrect installations or insufficient safety precautions! Install the safety bond by inserting the quick link in the hole on the bottom of the base. Pull the safety bond over the trussing system etc. -
Page 11: Connection With The Mains
Projector 1 Projector 2 Projector 3 Starting address 1 Starting address 20 Starting address 39 120 Ohms DMX-512 Controller The wires must not come contact with each other, otherwise the fixtures will not work at all, or will not work properly. Please note, the starting address depends upon which controller is being used. -
Page 12: Stand Alone Operation
The earth has to be connected! If the device will be directly connected with the local power supply network, a disconnection switch with a minimum opening of 3 mm at every pole has to be included in the permanent electrical installation. The device must only be connected with an electric installation carried out in compliance with the IEC- standards. - Page 13 Channel name function 8bit 16bit Pan Coarse Pan fine Pan Fine Tilt Tilt Coarse Tilt fine Tilt Fine Movment fastest to Slowest Speed Normal Movment Movement With Backout Function Normal Shutter Functions Pulse-effect Forward Shutter Pulse-effect Reverse Function Random Strobe Normal Shutter Functions Close Strobe Rate (slow to fast)
- Page 14 Indexed & Indexed With BackOut&Color Bounce Position 1 (Open) Position 2 ~ Position 15 Forward Spin Color Stop to fastest Reverse Spin Stop to fastest Continuous Positioning from 0-360 degrees Indexed Position 1 (Open) Position 2 ~ Position 15 Indexed With Backout Position 1 (Open) Position 2 ~ Position 15...
- Page 15 Forward Wheel Spin Stop to fastest Reverse Wheel Spin Stop to fastest Continuous Forward Spin Reverse Spin Gobo Forward Animate Rotate 11 14 Forward Animate Rotate With Backout Function Reverse Animate Rotate Reverse Animate Rotate With Backout Continuous Positioning from 0-360 degrees Forward Spin Stop to fastest Reverse Spin...
-
Page 16: Control Board
Shutter Reset Other Reset Display Off Display On Lamp Off Lamp On Hibernation Control Board The Control Board offers several features: you can simply set the starting address, run the pre-programmed program or make a reset. The main menu is accessed by pressing Enter until the display is lit. Browse through the menu by pressing the arrow buttons (up, down, left, right). - Page 17 Others Reset Others Movment Pan Reverse① ON/OFF Pan Reverse Tilt Reverse① ON/OFF Tilt Reverse Pan Degree① 630/540 Choose Pan Degree Encoders① ON/OFF Encoder wheel on/off Pan/Tilt Mode① Stand/Smooth Choose pan/tilt mode UI Set Mic Sens. ③ 0~99%,60% Sensitivity of Mic No Signal①...
- Page 18 Edit Chase② Chase 1 Chase Test Test =SCxxx Step 01 Beginning scene =SCxxx Chase 8 Step 64 Ending scene =xxx Edit Scenes② Edit Scene 001 Pan,Tilt,…… Input manual scene =xxx ~ Edit Scene --Fade Time-- Modify manually =xxx --Secne fading time Time-- Modify manually...
- Page 19 Software version With this function you can display the software version of each IC. • Select “Software ver.” by pressing Up or Down. • Press the Enter-button, the display shows e.g. “1U01 VX.X.XX”, “X.X.XX“ stands for the version number. Reset With this function you can reset the device via the Control Board.
- Page 20 With this function you can flip the display by 180° for a better view when the fixture is hung from the truss or a ceiling. Short-cut: Press “up” and “down” for three seconds to flip the display directly. Brand Show With this function you can show or hide the brand name 'Cyclops-lighting' on the display during menu operation, but still show it after reset.
- Page 21 SLOT_INFO 0x0120 SLOT_DESCRIPTION 0x0121 Category _Sensors SENSOR_DEFINITION 0x0200 SENSOR_VALUE 0x0201 Category _Power/Lamp Settings 0x04xx DEVICE_HOURS 0x0400 Category -Display Settings DISPLAY_INVERT 0x0500 Category _Configuration PAN_INVERT 0x0600 TILT_INVERT 0x0601 Category _Control IDENTIFY_DEVICE 0x1000 RESET_DEVICE 0x1001 Reload Default With this function you can restore the factory settings of the device. The different settings (marked in the table) will be set back to the default values (shaded).
-
Page 22: Error Messages
"Master" that the device is defined as master. • Press the Enter-button to confirm. 3. Program for Select Chase • Select “Edit Chase” by pressing Up or Down. • Press the Enter-button to confirm. • Select “Select Chase” by pressing Up or Down. •... -
Page 23: Cleaning And Maintenance
For example, when the display shows “Err channel PAN”, it means there is some error in the horizontal movement (PAN), control-channel 1. If there are some errors on several channels at the same time, you may see the error messages flash repeatly for 2 times, and then the fixture will generate a reset signal, all the stepper motors will reset. -
Page 24: Technical Specifications
Before replacing the fuse, unplug mains lead. Procedure: Step 1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from the housing (anti- clockwise). Step 2: Remove the old fuse from the fuse holder. Step 3: Install the new fuse in the fuse holder. Step 4: Replace the fuse holder in the housing and fix it.
