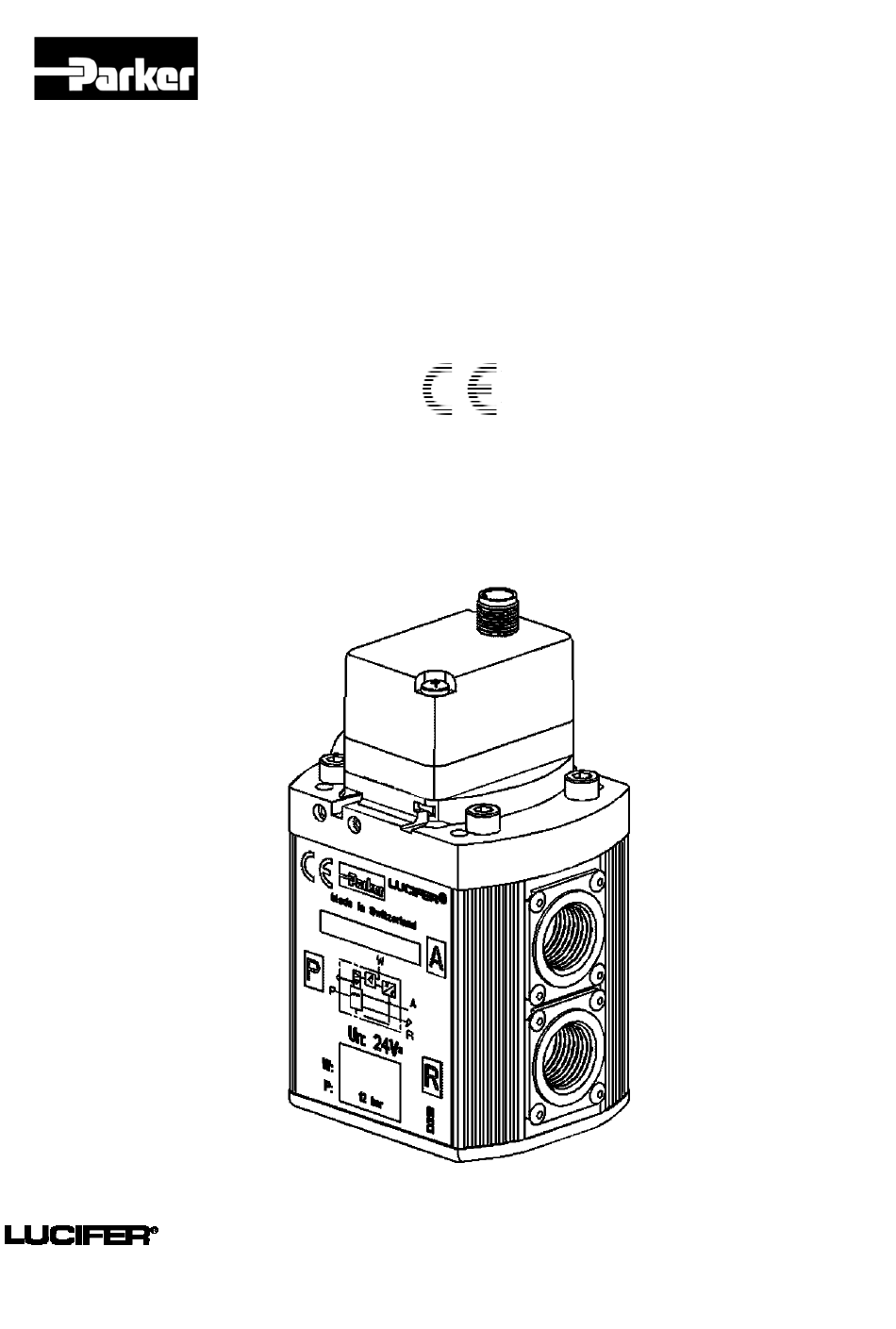

Lucifer EPP4 Pressure Regulator
Installation and Setting Instructions
Lucifer EPP4 Druckregler
Einbau- und Einstellanleitung
Régulateur de pression Lucifer EPP4
Instructions d'installation et de réglage
Regolatore di pressione Lucifer EPP4
Istruzioni di installazione e regolazione
P4BG4.......
Ref. Nb
P4BN4.......
P4BR4.......
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

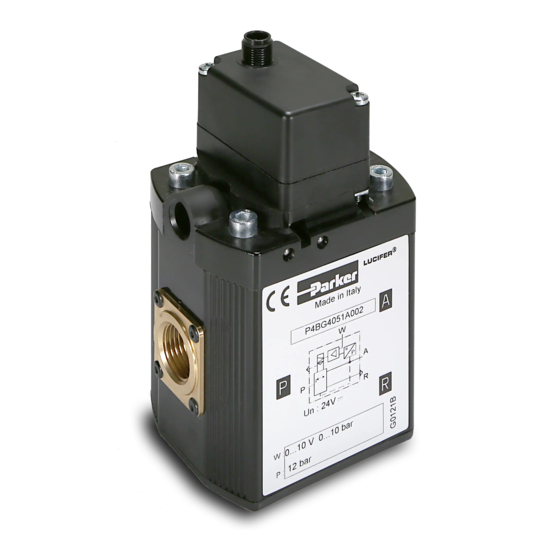

Related Manuals for Parker Lucifer EPP4 P4BG4 Series
