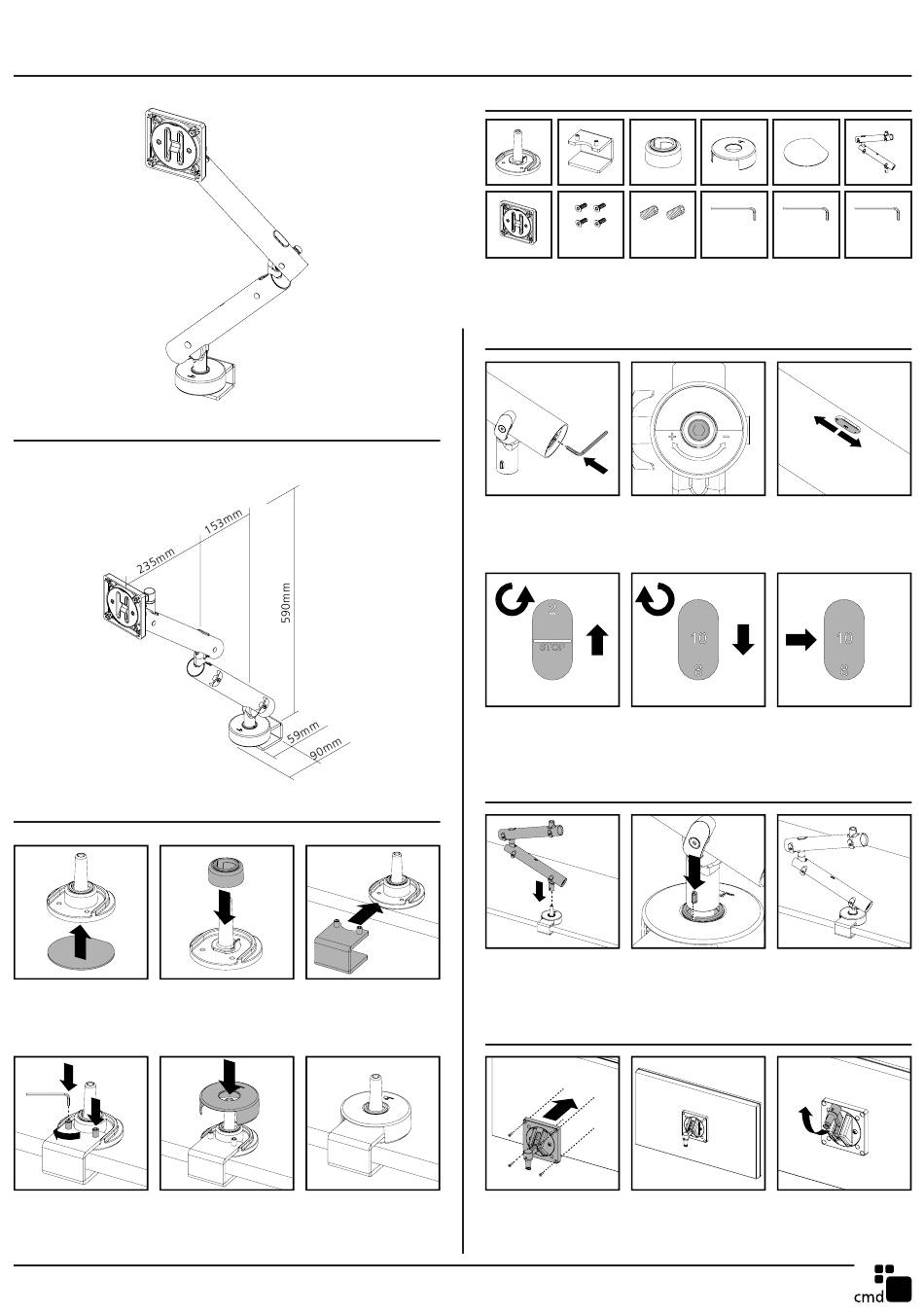

CMD Miro Quick Start Manual

Miro

Dimensions

Designed to fit onto desks with 16-27mm
thickness with the included clamp.

Mounting the base to the desk

Use the supplied M8x20mm grub screws in the clamp if more thread is required
The supplied EVA pad If not already in place, fit
can be applied to the the 180° lockout bush
bottom of the base to over the stem of the
protect the desk surface. base as shown.
Use 4mm Allen key to Place the clamp cover
tighten the 2x grub over the base with the
screws in the clamp into recess facing the desk
the base. edge. No fixing required.
Part No: 134330 Issue No: 001
Place the base on the
desk edge and offer up
the C-clamp as shown.
The base is now secured
in place and ready for
the arm to be installed.
Installation, user and care guide

Contents

x1 x1
x1 4x M4x12 2x M8X20
Pre-tensioning the arm
Use the 5mm Allen key The base of the lower
to turn the bolt at the arm indicates which
base of the lower arm as direction to turn the bolt
shown. to suit the monitor.
Turn the bolt anti- Turn the bolt clockwise
clockwise to suit lower to suit heavier monitors
weight monitors. Do not upto a maximum weight
adjust beyond 'STOP'. of 10kg.

Installing the arm

Lower the arm assembly Guide the lug on the
down onto the installed side of the arm into the
base on the desk. slot on the lockout bush
as shown.

Installing the head onto the monitor

Align the VESA holes Fix in place with supplied
with those on the fixings. 4x M4x12mm
monitor, either 75mm or CSK hex socket screws.
100mm spacing.
x1 x1 x1
3mm 4mm
x1 x1
(if monitor weight is known)
The window on the
lower arm indicates the
current weight/tension
setting from 0-10 kg.
Ensure to align the
desired weight setting
centrally in the window.
The arm is now secured
in place and ready for
the head and monitor to
be installed.
Angle the metal spigot
on the head to the
position shown ready to
install on the arm.
x1
5mm
x1
