SAFETY AND WARNINGS READ AND SAVE THIS GUIDE WARNING! General Use Electric Shock Hazard Read these instructions carefully before installing this product. Failure to follow this advice may result in Save these instructions for the local electrical inspector’s use. Installation must comply with your local building and local electricity regulations. electric shock or death.
INITIAL CONSIDERATIONS PRIOR TO INSTALLATION MULTIPLE PRODUCT INSTALLATION Prior to installing your cooktop, ensure: the local distribution conditions (nature of gas and pressure) and the adjustment of the appliance are compatible. For adjustment conditions for this appliance see ‘Gas rate summary’. a suitable disconnection switch is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.
COMPONENTS REQUIRED PARTS SUPPLIED TOOLS REQUIRED Dual wok pan Pan support* Mini wok pan Small pan Wok stand* support* support* support* Wrench Crosshead Silicone Cutter screwdriver Fibre washer Elbow 1/2” BSP Clamping ULPG test NG regulator* Hex key Router external thread brackets point adapter* *Some models only...

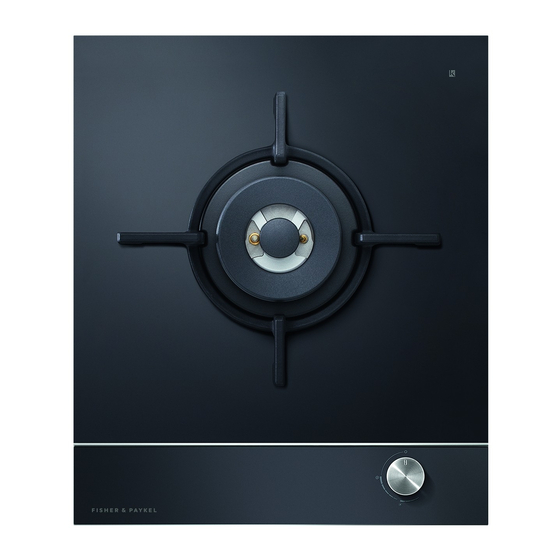

PRODUCT DIMENSIONS — 300MM MODELS CG301 CG302 PRODUCT DIMENSIONS A Overall height of cooktop* B Overall width of cooktop C Overall depth of cooktop D Height of chassis E Width of chassis F Depth of chassis PLAN ISOMETRIC G Height of cooktop glass and flange H Depth of front overhang of cooktop glass I Depth of rear overhang of cooktop glass** J Depth of side overhang of cooktop glass**...
Page 6
PRODUCT DIMENSIONS — 450MM MODELS CG451 PRODUCT DIMENSIONS A Overall height of cooktop* B Overall width of cooktop C Overall depth of cooktop D Height of chassis E Width of chassis F Depth of chassis G Height of cooktop glass and flange H Depth of front overhang of cooktop glass PLAN ISOMETRIC...
Page 7
PRODUCT DIMENSIONS — 600MM MODELS CG603D CG604D PRODUCT DIMENSIONS A Overall height of cooktop* B Overall width of cooktop C Overall depth of cooktop D Height of chassis E Width of chassis F Depth of chassis G Height of cooktop glass and flange PLAN ISOMETRIC H Depth of front overhang of cooktop glass...
Page 8
PRODUCT DIMENSIONS — 760MM MODELS CG762D PRODUCT DIMENSIONS A Overall height of cooktop* B Overall width of cooktop C Overall depth of cooktop D Height of chassis E Width of chassis F Depth of chassis G Height of cooktop glass and flange PLAN ISOMETRIC H Depth of front overhang of cooktop glass...
Page 9
PRODUCT DIMENSIONS — 900MM MODELS CG903D CG905D PRODUCT DIMENSIONS A Overall height of cooktop* B Overall width of cooktop C Overall depth of cooktop D Height of chassis E Width of chassis F Depth of chassis G Height of cooktop glass and flange H Depth of front overhang of cooktop glass PLAN ISOMETRIC...
CUTOUT DIMENSIONS — 300MM MODELS PROUD INSTALLATION FLUSH INSTALLATION PLAN PLAN FRONT FRONT CG301D CG302D CG301D CG302D CUTOUT DIMENSIONS CUTOUT DIMENSIONS A Overall width of cutout A Overall width of routered recess B Overall depth of cutout B Overall depth of routered recess...
Page 11
CUTOUT DIMENSIONS — 450MM MODELS PROUD INSTALLATION FLUSH INSTALLATION PLAN PLAN FRONT FRONT CG451D CG451D CUTOUT DIMENSIONS CUTOUT DIMENSIONS A Overall width of cutout A Overall width of routered recess B Overall depth of cutout B Overall depth of routered recess C Corner radius of cutout max 10 C Offset overhang allowance...
Page 12
CUTOUT DIMENSIONS — 600MM MODELS PROUD INSTALLATION FLUSH INSTALLATION PLAN PLAN FRONT FRONT CG603D CG604D CG603D CG604D CUTOUT DIMENSIONS CUTOUT DIMENSIONS A Overall width of cutout A Overall width of routered recess B Overall depth of cutout B Overall depth of routered recess C Corner radius of cutout max 10 max 10...
Page 13
CUTOUT DIMENSIONS — 760MM MODELS PROUD INSTALLATION FLUSH INSTALLATION PLAN PLAN FRONT FRONT CG762D CG762D CUTOUT DIMENSIONS CUTOUT DIMENSIONS A Overall width of cutout A Overall width of routered recess B Overall depth of cutout B Overall depth of routered recess C Corner radius of cutout max 10 C Offset overhang allowance...
Page 14
CUTOUT DIMENSIONS — 900MM MODELS PROUD INSTALLATION FLUSH INSTALLATION PLAN PLAN FRONT FRONT CG903D CG905D CG903D CG905D CUTOUT DIMENSIONS CUTOUT DIMENSIONS A Overall width of cutout A Overall width of routered recess B Overall depth of cutout B Overall depth of routered recess C Corner radius of cutout max 10 max 10...
CLEARANCES — 300MM MODELS CG301D CG302D CLEARANCE DIMENSIONS A Minimum clearance from top of trivets to: Rangehood Overhead exhaust fan Downward facing combustible surface* Downwards-facing tiled or fire resistant surface B Minimum clearance below bench top to: Combustible surface Fisher & Paykel oven or nearest non-combustible surface...
Page 16
CLEARANCES — 450MM MODELS CG451D CLEARANCE DIMENSIONS A Minimum clearance from top of trivets to: Rangehood Overhead exhaust fan Downward facing combustible surface* Downwards-facing tiled or fire resistant surface B Minimum clearance below bench top to: Combustible surface Fisher & Paykel oven or nearest non-combustible surface C Minimum clearance from cutout to nearest combustible surface D Minimum distance from right edge of cooktop to gas connection point on wall (if using a flexible hose)
Page 17
CLEARANCES — 600MM MODELS CG603D CG604D CLEARANCE DIMENSIONS A Minimum clearance from top of trivets to: Rangehood Overhead exhaust fan Downward facing combustible surface* Downwards-facing tiled or fire resistant surface B Minimum clearance below bench top to: Combustible surface Fisher & Paykel oven or nearest non-combustible surface C Minimum clearance from cutout to nearest combustible surface D Minimum distance from right edge of cooktop to gas connection point on wall (if using a flexible hose)
Page 18
CLEARANCES — 750MM MODELS CG762D CLEARANCE DIMENSIONS A Minimum clearance from top of trivets to: Rangehood Overhead exhaust fan Downward facing combustible surface* Downwards-facing tiled or fire resistant surface B Minimum clearance below bench top to: Combustible surface Fisher & Paykel oven or nearest non-combustible surface C Minimum clearance from cutout to nearest combustible surface D Minimum distance from right edge of cooktop to gas connection point on wall (if using a flexible hose)
Page 19
CLEARANCES — 900MM MODELS CG903D CG905D CLEARANCE DIMENSIONS A Minimum clearance from top of trivets to: Rangehood Overhead exhaust fan Downward facing combustible surface* Downwards-facing tiled or fire resistant surface B Minimum clearance below bench top to: Combustible surface Fisher & Paykel oven or nearest non-combustible surface C Minimum clearance from cutout to nearest combustible surface D Minimum distance from right edge of cooktop to gas connection point on wall (if using a flexible hose)
GAS RATE SUMMARY CG301D MODELS CG302D MODELS JET SIZE NOMINAL RATING JET SIZE NOMINAL RATING BURNER GAS TYPE BURNER GAS TYPE (MM) (MJ/H) (MM) (MJ/H) 1.45 NG (1.00kPa)* 1.35 8.80 1 Semi-rapid NG (1.00kPa)* 1.45 21.50 ULPG (2.75kPa)* 0.80 8.10 0.70...
Page 21
GAS RATE SUMMARY CG451D MODELS CG603D MODELS JET SIZE NOMINAL RATING JET SIZE NOMINAL RATING BURNER GAS TYPE BURNER GAS TYPE (MM) (MJ/H) (MM) (MJ/H) 1.43 1.26 NG (1.00kPa)* 1.43 21.0 NG (1.00kPa)* 1.26 16.60 0.70 0.70 1 Dual wok 1 Dual wok 0.80 0.73...
Page 22
GAS RATE SUMMARY CG604D MODELS CG762D MODELS JET SIZE NOMINAL RATING JET SIZE NOMINAL RATING BURNER GAS TYPE BURNER GAS TYPE (MM) (MJ/H) (MM) (MJ/H) NG (1.00kPa)* 1.55 11.70 1.30 1 Mini wok ULPG (2.75kPa)* 0.94 11.70 NG (1.00kPa)* 1.30 18.00 NG (1.00kPa)* 1.30...
Page 23
GAS RATE SUMMARY CG903D MODELS CG905D MODELS JET SIZE NOMINAL RATING JET SIZE NOMINAL RATING BURNER GAS TYPE BURNER GAS TYPE (MM) (MJ/H) (MM) (MJ/H) 1.30 1.30 NG (1.00kPa)* 1.30 18.00 NG (1.00kPa)* 1.30 18.00 0.70 0.70 1 Dual wok 1 Dual wok 0.76 0.76...
Page 24
PROUD INSTALLATION Locate the side brackets* to the appropriate slots on the cooktop Remove the transit screws from chassis. The correct slot height is both sides of the cooktop. determined by the thickness of your countertop. Apply adhesive foam seal around the glass overhang, 5mm in from the edge of the glass.
Page 25
FLUSH INSTALLATION Fit the elbow and washer to the floating nut before carefully turning the cooktop over and Prepare the countertop for flush placing onto a protected surface. installation. Use a router to cutout the edges of the countertop to specified depth (5mm).
Page 26
GAS CONNECTION NATURAL GAS MODELS LEAK TESTING NG Models Ensure the supplied regulator is fitted. Adjust to obtain a test point pressure of 1kPa with all burners operating at the highest setting. Manual shut-off valve Leak test points LPG Models LPG MODELS Ensure all dials are set to before connecting cooktop to gas supply.
ELECTRICAL CONNECTION COOKTOP BURNERS ATTACH PAN SUPPORTS Connect the cooktop to the power Securely locate all pan supports ensuring supply and attach the duplicate data they are the installed in the correct label to an accessible location. orientation and do not rock. TEST BURNERS lifting off yellow tip...
INSTALLER CHECKLIST TO BE COMPLETED BY THE INSTALLER GENERAL Specified clearance maintained. Manual gas shut-off valve installed in an accessible location. Unit is level – front to back and side to side. Unit tested and free of gas leaks. ...
