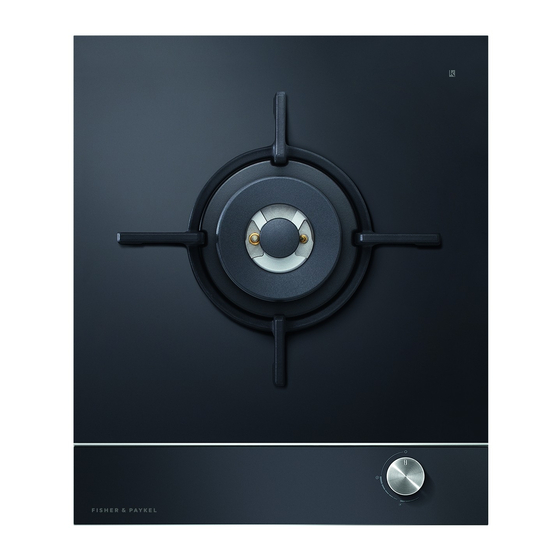

Gas-on-glass cooktop
Hide thumbs
Also See for CG301D:
- Installation instructions manual (32 pages) ,
- Installation manual (32 pages) ,
- User manual (28 pages)
Related Manuals for Fisher & Paykel CG301D
Summary of Contents for Fisher & Paykel CG301D
- Page 1 GAS-ON-GLASS COOKTOP CG301D, CG302D, CG451D, CG603D, CG604D, CG762D, CG903D & CG905D models USER GUIDE NZ AU GB IE SEA...
-
Page 3: Table Of Contents
CONTENTS Introduction Safety and warnings Before you begin Cooktop use Dual wok burner use Cooking guide Care and cleaning Troubleshooting Energy guidelines Energy guidelines (GB & IE only) Warranty and service SAVE THESE INSTRUCTIONS Registration Register your product with us so we can The models shown in this User guide may not be provide you with the best service possible. -
Page 5: Introduction
INTRODUCTION Congratulations on your new purchase. Your Fisher & Paykel gas cooktop gives the ultimate experience in gas cooking with speed and precision. You cooktop delivers powerful modern functionality with a singular aesthetic treatment. Matte black detailing separates the control panel from the black glass cooking surface, while black burners with anodised black dials and trim complete the look for a cohesive, beautiful hob. -
Page 6: Safety And Warnings
SAFETY AND WARNINGS WARNING! Electrical Shock Hazard Failure to follow this advice may result in electrical shock or death. • Switch the power to the cooktop off at the wall before cleaning or maintenance. • Do not cook on a broken or cracked cooktop. If the glass should break or crack, turn off the gas supply and switch the appliance off immediately at the mains power supply (wall switch) and... - Page 7 SAFETY AND WARNINGS WARNING! Explosion Hazard Failure to follow this advice may result in death or serious injury. • Do not use or store flammable materials such as gasoline near this appliance. • Do not spray aerosols in the vicinity of this appliance while it is in operation.
- Page 8 SAFETY AND WARNINGS If the appliance is connected to the gas supply with a flexible hose, make sure that the hose cannot come in contact with the bottom of the appliance or any sharp edges. Ensure that the electrical connection plug is accessible after installation. This appliance should be connected to a circuit that incorporates an isolating switch providing full disconnection from the electricity supply.
-
Page 9: Before You Begin
BEFORE YOU BEGIN Read this guide, taking special note of the 'Safety and warnings' section. Remove all packaging from the cooktop. Recycle responsibly. Remove any adhesive residue using dishwashing liquid on a soft cloth. Do not use any harsh or abrasive cleaners. Cooktop features and accessories 1 Control panel 2 Burner dials... -
Page 10: Cooktop Use
COOKTOP USE Selecting and using the burners Identify the desired burner and the corresponding dial. HIGH Push the dial down and turn counterclockwise to the highest heat setting Once the burner is lit, hold the dial down for a further 3 seconds. Note: a clicking sound should be present when igniting the burner. - Page 11 COOKTOP USE Manual lighting If the burner will not light after several attempts, the burner can be manually lit. If you have attempted to light the burner with the ignition, allow 1 minute for any accumulated gas to dissipate before manually lighting. Carefully hold a lit match near the desired burner.
-
Page 12: Dual Wok Burner Use
DUAL WOK BURNER USE When using a dual wok burner, you can choose to use the inner burner only or both the inner and outer burners as desired. Inner and outer burners Inner burner only Adjusting the dual wok burner* MEDIUM HIGH Setting both the inner and outer rings... -
Page 13: Cooking Guide
For optimal performance, ensure the size of the cookware is suitable for the burner in use. CG905D models CG903D models CG762D models CG604D models CG302D models CG603D models CG451D models CG301D models Burner Min. diameter (mm) Max. diameter (mm) 1 Auxiliary no minimum 2 Semi-rapid no minimum... - Page 14 COOKING GUIDE Burner supports Small pan support The small pan support has been designed for use with dual wok burners for supporting cookware with a base diameter smaller than 200mm. Using the small pan support Ensure cooktop is cool before slotting the small pan support onto the centre of the dual wok burner as shown.
-
Page 15: Care And Cleaning
CARE AND CLEANING Replacing burner parts Ensure that all burner parts are correctly fitted. Incorrectly assembled burners may produce dangerous flames. Flames should be blue with no yellow tipping, and burn without fluttering around the burner cap. Semi-rapid, rapid and auxiliary burners Burner cap Incorrect alignment Flame spreader... - Page 16 CARE AND CLEANING Burners Burners should be cleaned regularly. Food residue may obstruct the ignitor and the notches of the flame spreader, preventing the burner from functioning correctly. Refer to ‘Replacing burner parts’ for details on safely removing and refitting burner parts. Burner caps, rings, flame spreaders and accessories 1 Remove the parts that you wish to clean.
- Page 17 CARE AND CLEANING Pan supports Ensure the correct pan support are used for each burner. Pan supports should be installed in the correct orientation. Semi-rapid, rapid and auxiliary burners Locate the pan support to the two nodules on the burner cap to secure. nodules Plan view Dual wok and mini wok burners...
-
Page 18: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO There is a strong gas The gas connection could Open a window and refer to your installation smell be leaking. guide for details on checking for leaks. Do not use the until leak has been repaired. There is a slight rubbery This is normal for first The smell will disappear with use. - Page 19 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO The flames are yellow or Burner parts (especially Check that they are clean and dry, refer to yellow-tipped rather than the flame ports) may be ‘Care and cleaning’ for advice. blue clogged or wet. The cooktop may have Contact Customer Care and do not use your been connected to the...
-
Page 20: Energy Guidelines
ENERGY GUIDELINES In the United Kingdom: Safety requirements of EEC regulation 2016/426 EN 30-1-1 EN 30-2-1 EN 437 Safety requirements of EEC Directive “Low voltage” 2006/95: EN 60335-1 General Requirements for Domestic electrical appliances EN 60335-2-6 Particular Requirements for Domestic electrical cooking appliances Safety requirements of EEC Directive “EMC”... -
Page 21: Energy Guidelines (Gb & Ie Only)
ENERGY GUIDELINES (GB & IE ONLY) - Page 22 ENERGY GUIDELINES (GB & IE ONLY) Reducing the environmental impact of cooking Reducing energy consumption will reduce the impact of cooking on the environment. You can reduce energy consumption by: Thawing frozen foods in the refrigerator first Using a moderate setting to conserve gas Having your burners adjusted by a qualified technician if the flame is yellow Ensuring burner parts are clean and dry, as clogged ports will reduce efficiency.
-
Page 23: Warranty And Service
WARRANTY AND SERVICE Before you call for service or assistance Refer to the installation instructions and your user guide and check that: Your product is correctly installed. You are familiar with its normal operation. If after checking these points you still need assistance or parts, please refer to the Service &... -
Page 24: Fisherpaykel.com
FISHERPAYKEL.COM © Fisher & Paykel Appliances 2020 All rights reserved. The product specifications in this document apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time.
