Summary of Contents for Better Bathrooms Dune

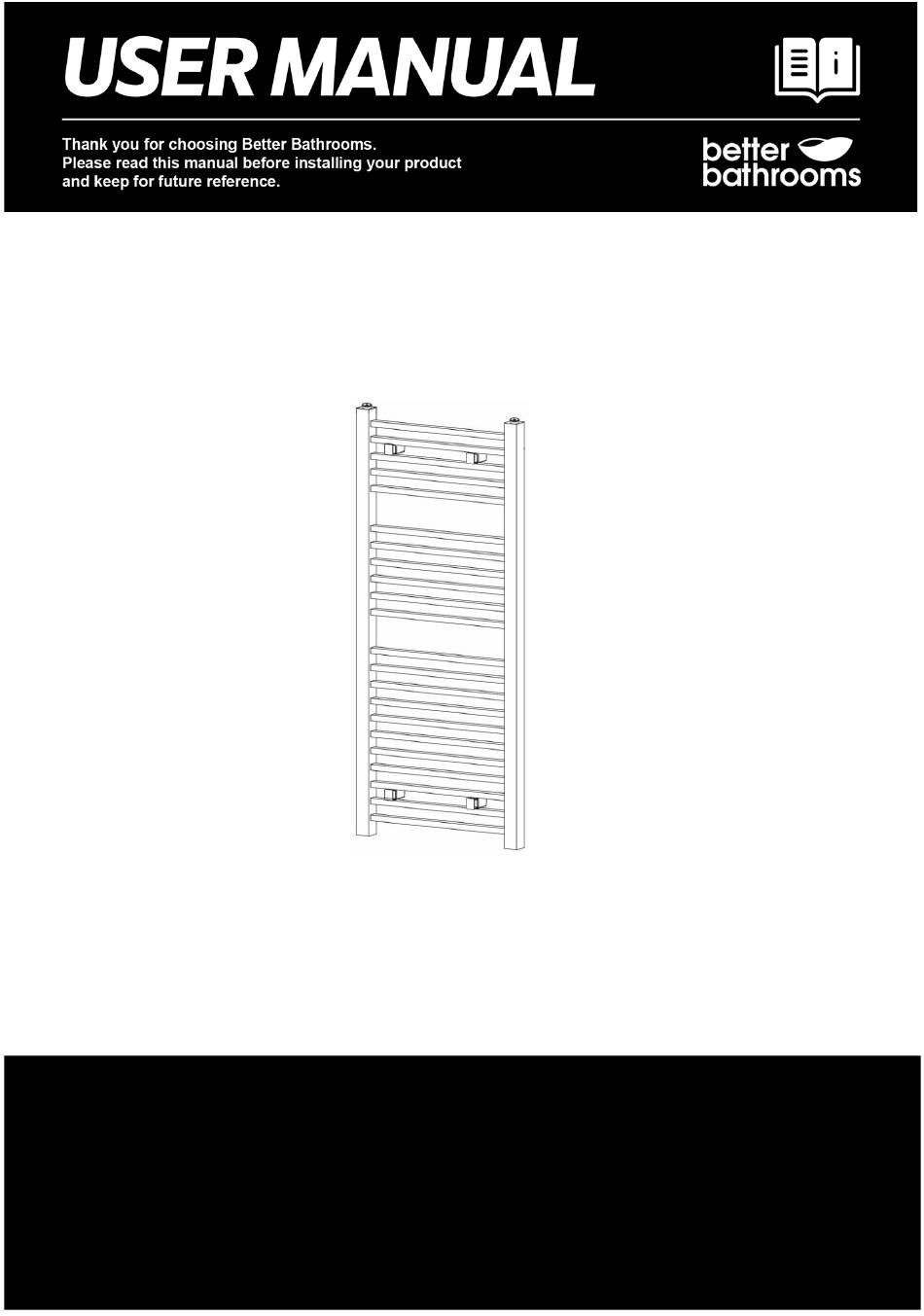

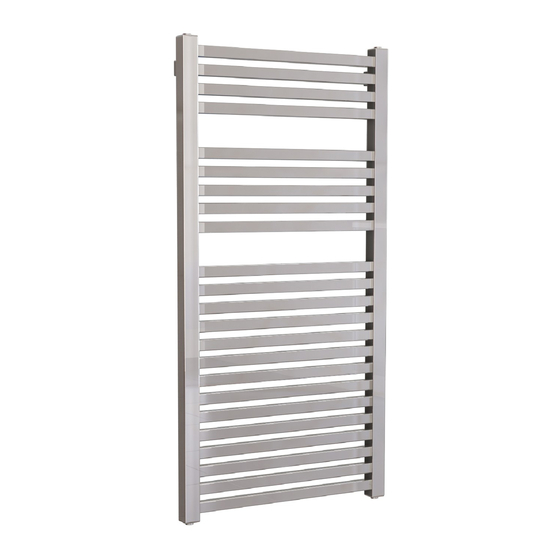

- Page 1 BeBa_26286 to BeBa_26291 and BeBa_26293 Dune Towel Radiator Please note: Image is for illustrative purposes only and may differ slightly to the actual product • Multi-person assembly • Tools required • We always recommend using professional tradespeople to install your product...
- Page 2 Congratulations on your purchase And welcome to our growing gang of savvy shoppers We're on a mission to bring you extraordinary bathroom products, for less. From modern to traditional style ceramics, plus the gorgeous fixtures, fittings and furniture to match. So, you can fall in love with your space every single day.
- Page 3 Parts A. 1 x Radiator B. 1 x Air Vent C. 1 x Blanking cap D. 4 x Wall plug E. 4 x Wall Bracket F. 4 x Washer G. 4 x Wall screw H. 4 x Adjustable Bracket I. 4 x Grub Screw J.
- Page 4 Installation Please note: Before starting any installation, turn off the water supply. Please note: Before commencing any installation, the desired location should be checked before drilling, that no pipes or wires can be damaged. First, prepare the water supply pipes to match up with the towel radiator and valve dimensions being used.
- Page 5 3. Using the drill and 8mm drill bit, drill into the marked positions then insert the wall plugs and tap flush to the finished wall surface. Next, position the wall brackets and screw into place using the screws provided (securing each with a washer) with the Philips screwdriver.
- Page 6 6. Finally, fit the radiator valves to the pipework and connect to the radiator valve tail and tighten all connections. IMPORTANT! The product is supplied un-filled. The rail should be filled with a water (80%) and glycol (20%) mixture if NOT being connected to the central heating system, also allow 5% air gap.
