Kohler 28138T Installation Instructions

Wall-mount single control handle lavatory faucet valve

Installation INSTRUCTIONS

28138T Wall-Mount Single Control Handle Lavatory Faucet Valve

BEFORE YOU BEGIN

All information is based on the latest product information available at the time of publication. Kohler Co. reserves

the right to make changes in product characteristics, packaging, or availability at any time without notice.

Please leave these instructions for the consumer. They contain important information.

NOTES:

1. Flush the water supply pipes thoroughly to remove debris.

2. Inspect the supply tubing for damage. Replace as necessary.

3. Observe local plumbing codes.

4. Check for leaks before covering the pipes, repairs as needed.

5. Please ensure only apply water pressure test on the product, and empty the air in pipe and faucet thoroughly

before the test. Please ensure test pressure below 0.8MPa(8bar) and test duration within 30 minutes.

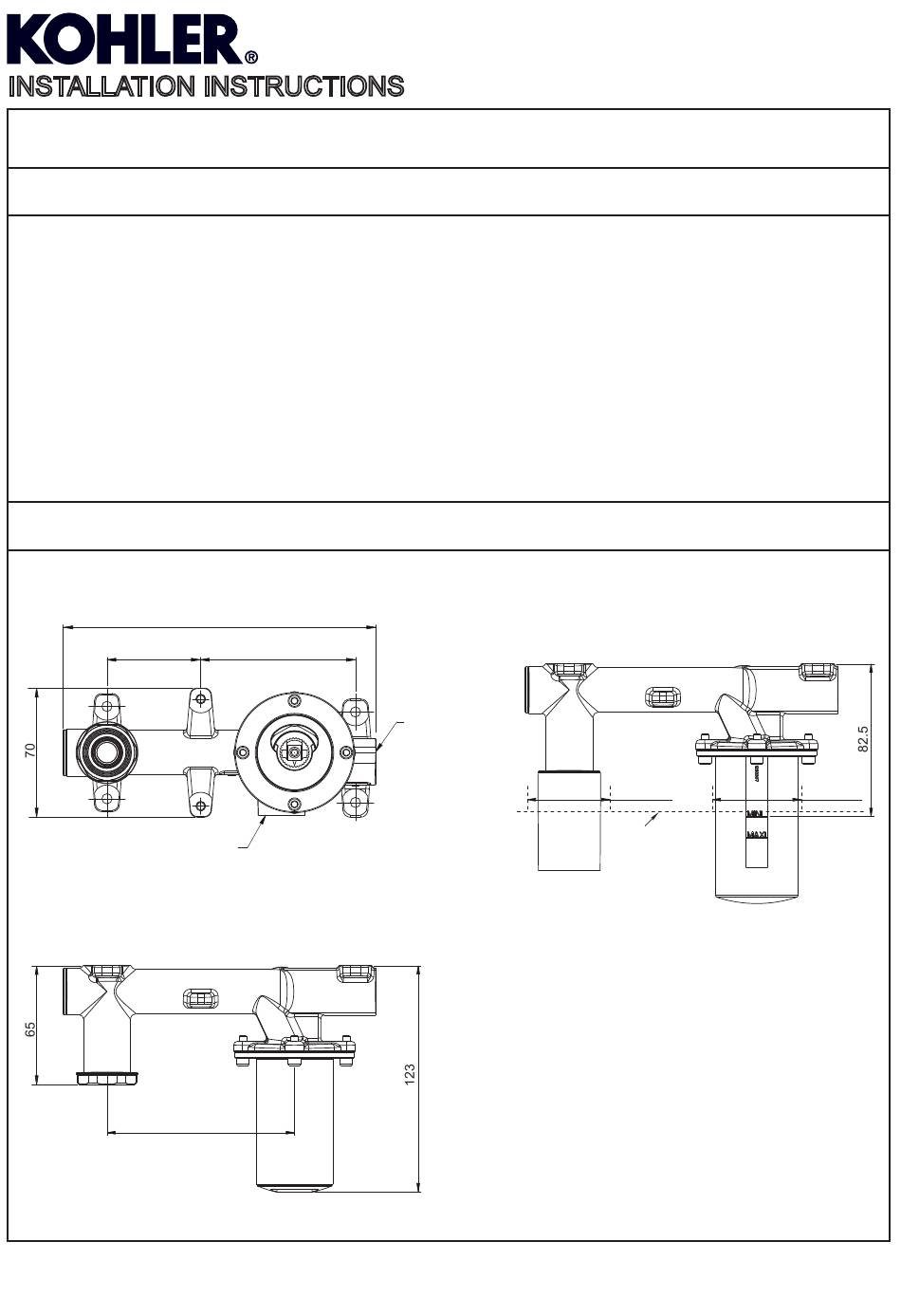

Hot Water Inlet

G1/2˝

1299767-2A-A

170

101.6

Cold Water Inlet

G1/2˝

Ø35~Ø45

Finished Wall

Ø45~Ø52
