Summary of Contents for Primos 63163WM

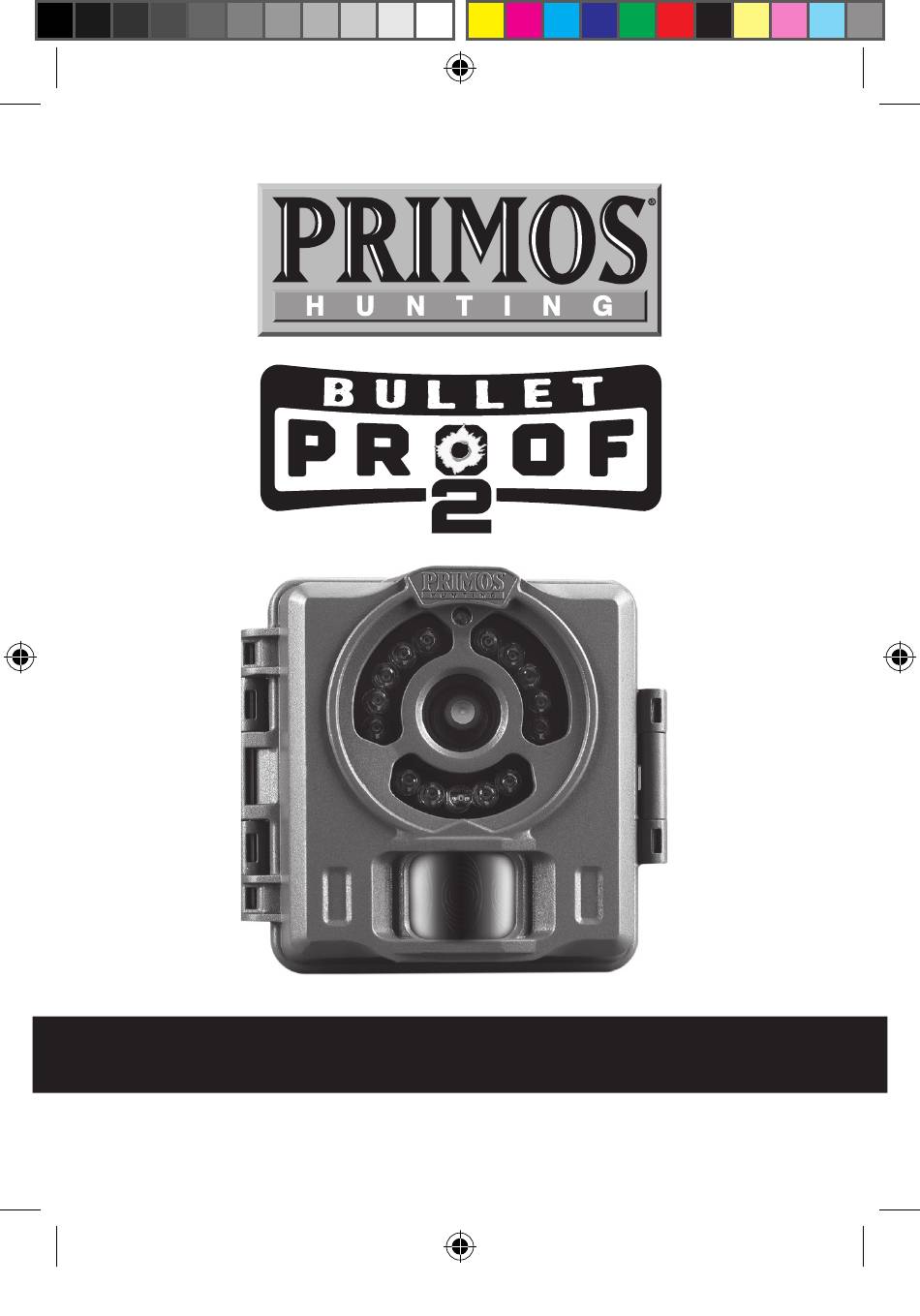

- Page 1 Instruction Manual Model #: 63163WM 03-17 mos63163WM_14MPBulletProof2Cam_WalmartSMU_1LIM.indd 1 3/8/17 10:32 A...
- Page 2 mos63163WM_14MPBulletProof2Cam_WalmartSMU_1LIM.indd 2 3/8/17 10:32 A...
- Page 3 - DO NOT OPEN CASE HOUSING. UNINSULATED, ‘DANGEROUS VOLTAGE’ WITHIN PRODUCTS ENCLOSURE. DO NOT REMOVE HOUSING COVER. THERE ARE NO USER - SERVICEABLE PARTS INSIDE, REFER SERVICING TO PRIMOS® CUSTOMER SERVICE. • Only use batteries as specified in this user manual and install according to correct polarization.
- Page 4 Failure to follow may result in leaking or exploding batteries, damage to product, fire or personal injury. Do not handle damaged or leaking batteries. QUESTIONS?? Feel free to contact Primos® Customer Service Team via phone: (601) 879-9323 or email: service@primos.com with any comments, questions, problems or return requests.
-
Page 5: Table Of Contents
Page Index Introduction Parts & Controls Guide Battery and SD Card Installation Date & Time Imprint Feature 11-13 Power On Set Up 14-15 Viewing the Photos Glossary Technical Specifications Troubleshooting/FAQ 18-20 Warranty mos63163WM_14MPBulletProof2Cam_WalmartSMU_1LIM.indd 5 3/8/17 10:32 A... - Page 6 Congratulations on your purchase of one of the best Game Cameras on the market! Primos is very proud of this camera and we are sure you will be pleased with yours as well. We appreciate your business and want to earn your trust.
-
Page 7: Introduction
INTRODUCTION Congratulations on your purchase of a Primos BULLET PROOF 2 Game Camera. This camera, with its weatherproof, rugged construction, is designed to record animal activity in the outdoors. Your BULLET PROOF 2 Game Camera features a compact, portable size and an extra long battery life. -
Page 8: Parts & Controls Guide
Parts and Controls Guide PIR/Battery Indicator LED Light Infrared LED Array Camera Lens Latch Light Sensor PIR Motion Sensor Front of Camera PIR/Battery Indicator LED: • Lights when PIR sensor is triggered during first 10 sec after power on. • Lights when capturing photo or video during first 3 minutes after power on. - Page 9 Parts and Controls Guide Operating Status Indicator LED Light Interior View (Unlatched) Battery Compartment (note orientation for correct polarity) Side View Power/Mode Switch SD Card Slot Operating Status Indicator LED: • Lights when Timetool software has finished saving to SD card (see pg. 11). •...
-
Page 10: Battery And Sd Card Installation
BATTERY INSTALLATION To maximize battery life, you should install a set of 4 AA lithium (for longest life) or alkaline batteries. NOTE: Always set the power switch to the OFF position when installing or removing batteries. Please make sure the batteries are inserted correctly, as indicated inside the battery compartment. -
Page 11: Date & Time Imprint Feature
SD card, as described below. If no text file with date/time is found on the card when the camera is turned on, only “Primos” will be imprinted on the photos. - Page 12 computer’s clock. If this is not the correct date and time, click “Edit” and make changes as needed. Click the “... ” button above Cancel and select the SD card location (drive letter). Or, if you know the drive letter for the SD card (e.g. “D:\”), change the “A”...
-
Page 13: Power On
Eject the SD card (right click, select “Eject (name of card)_”, and wait for the card icon to disappear from your Mac desktop). Make sure the Primos cam’s power switch is off. Insert the SD card into the camera’s card slot, then switch on the camera. Test the date imprint by waving a hand in front of the camera a few times during a minute or two. -
Page 14: Set Up
DO NOT switch off the camera while this is on, or the video file may become damaged and unplayable. To capture photos/videos of activity in the area you choose to locate your Primos BULLET PROOF 2 Game Camera, follow the steps listed next in “SET UP”: SET UP 1. -
Page 15: Viewing The Photos
3. Test the Coverage Area One of the BULLET PROOF 2 Game Camera’s most useful features is the ability to test the coverage area. • After mounting the camera, open the front housing and slide the Power switch to the “PIC” position. •... -
Page 16: Glossary
3. The SD card or card reader should appear on your desktop or list of connected “drives”. Double click it to view or download the photo files (.jpg) and/or video files (.avi) on the SD card. Note: while it may be possible to view the files on many digital cameras, it is not recommended. -
Page 17: Technical Specifications
TECHNICAL SPECIFICATIONS Model Number 63163WM Image Sensor Type 1/2.7 Inch CMOS Sensor Resolution 2 million pixels Effective Focal Length 8 mm Lens Aperture f/2.5 IR Filter Automatic IR Filter PIR Sensor Trigger Speed <1.0 second Number of IR LED 14 LEDs... -
Page 18: Troubleshooting/Faq
Make sure that you are using a good quality name brand SD card in your camera. Primos recommends SanDisk® brand SD Cards up to 32GB. Our experience indicates that poor quality SD cards can sometimes reduce your BULLET PROOF 2 Game Camera’s battery life. - Page 19 If this is seen on a consistent basis, then the sensor may need servicing. Please contact Primos customer service. 6. Video file won’t play a. If the camera was powered off during a video recording (green LED on), the file may have been corrupted.
- Page 20 Troubleshooting / FAQ Photos Do Not Capture Subject of Interest Try to set your camera up in an area where there is not a heat source in the camera’s line of sight. In some cases, setting the camera near water will make the camera take images with no subject in them.
-
Page 21: Warranty
ONE YEAR LIMITED WARRANTY Your Primos® electronic product is warranted to be free of defects in materials and workmanship for one year after the date of purchase. In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product postage prepaid. - Page 22 · Consult the dealer or an experienced radio/TV technician for help. The device does not contain any user-serviceable parts. Repairs should only be made by an Authorized Primos repair center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and will void your warranty and your authority to operate this device under Part 15 regulations.
- Page 23 mos63163WM_14MPBulletProof2Cam_WalmartSMU_1LIM.indd 23 3/8/17 10:32 A...
- Page 24 For further questions or additional information please contact: Primos Customer Service (601) 879-9323 service@primos.com ©2017 Vista Outdoor Inc. mos63163WM_14MPBulletProof2Cam_WalmartSMU_1LIM.indd 24 3/8/17 10:32 A...
