Instruction Manual
Model #: 63162WM
03-17
mos63162WM_12MPBulletProofCam_WalmartSMU_1LIM.indd 1
3/9/17 1:40 P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BULLET PROOF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Primos BULLET PROOF

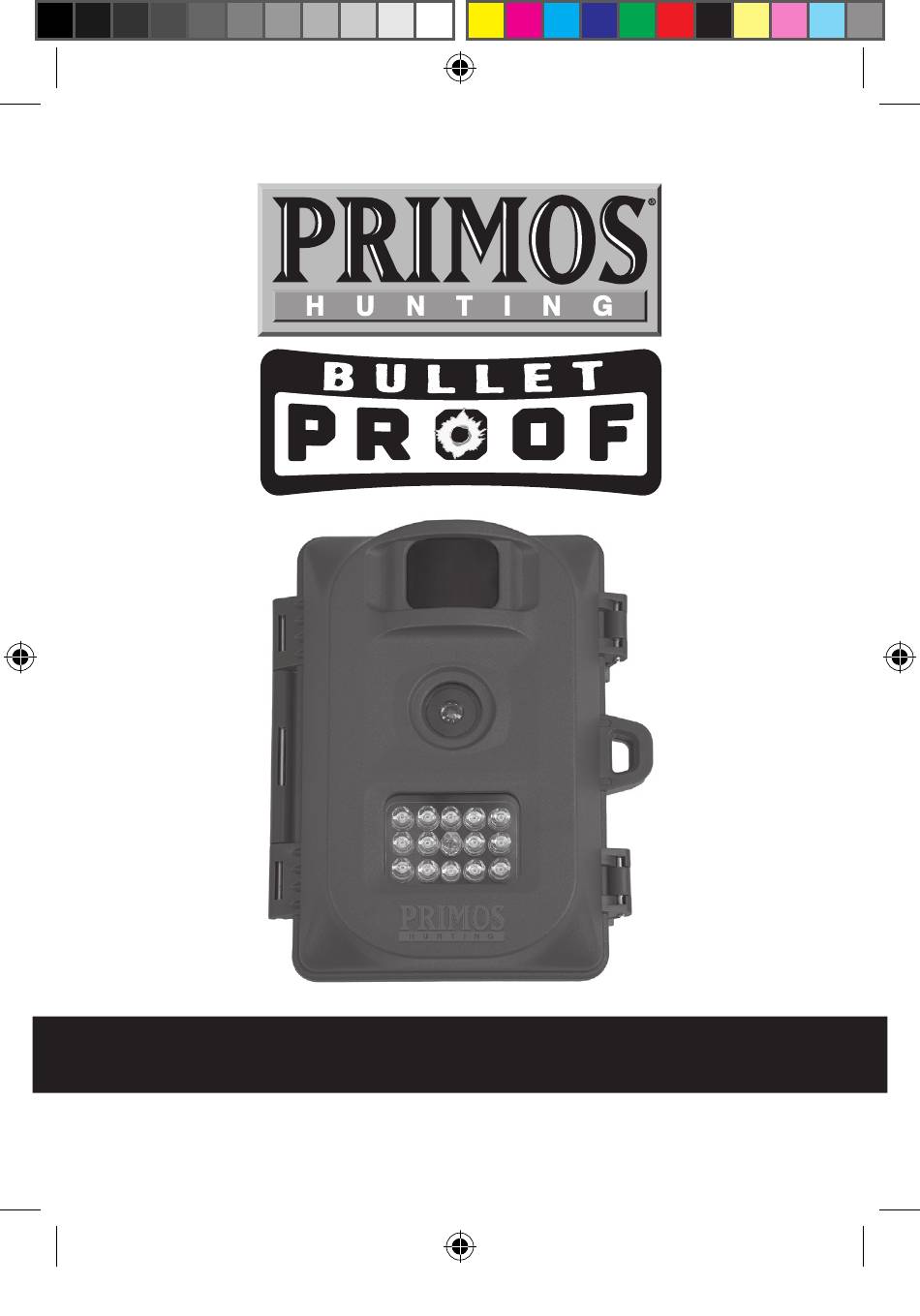

  • Page 1 Instruction Manual Model #: 63162WM 03-17 mos63162WM_12MPBulletProofCam_WalmartSMU_1LIM.indd 1 3/9/17 1:40 P...
  • Page 2 mos63162WM_12MPBulletProofCam_WalmartSMU_1LIM.indd 2 3/9/17 1:40 P...
  • Page 3 - DO NOT OPEN CASE HOUSING. UNINSULATED, ‘DANGEROUS VOLTAGE’ WITHIN PRODUCTS ENCLOSURE. DO NOT REMOVE HOUSING COVER. THERE ARE NO USER - SERVICEABLE PARTS INSIDE, REFER SERVICING TO PRIMOS® CUSTOMER SERVICE. • Only use batteries as specified in this user manual and install according to correct polarization.
  • Page 4 Failure to follow may result in leaking or exploding batteries, damage to product, fire or personal injury. Do not handle damaged or leaking batteries. QUESTIONS?? Feel free to contact Primos® Customer Service Team with any comments, questions, problems or return requests. Call (601) 879-9323 or e-mail service@primos.com. mos63162WM_12MPBulletProofCam_WalmartSMU_1LIM.indd 4...
  • Page 5: Table Of Contents

    Page Index Introduction Parts & Controls Guide Battery and SD Card Installation Date & Time Imprint Feature 11-13 Power On Set Up 14-15 Viewing the Photos/Videos Glossary Technical Specifications Troubleshooting/FAQ 18-20 Warranty mos63162WM_12MPBulletProofCam_WalmartSMU_1LIM.indd 5 3/9/17 1:40 P...
  • Page 6 Congratulations on your purchase of one of the best Game Cameras on the market! Primos is very proud of this camera and we are sure you will be pleased with yours as well. We appreciate your business and want to earn your trust.
  • Page 7: Introduction

    Congratulations on your purchase of a Primos BULLET PROOF Game Camera. This camera, with its weatherproof, rugged construction, is designed to record animal activity in the outdoors. Your BULLET PROOF Game Camera features a compact, portable size and an extra long battery life.
  • Page 8: Parts & Controls Guide

    Parts and Controls Guide PIR Motion Sensor Latch Padlock Camera Hole Lens Infrared LED Array Front of Camera Light Sensor/ PIR Indicator IR LED Array Detail mos63162WM_12MPBulletProofCam_WalmartSMU_1LIM.indd 8 3/9/17 1:40 P...
  • Page 9 Parts and Controls Guide Battery Compartment (note orientation for correct polarity) Power/Mode Switch SD Card Slot mos63162WM_12MPBulletProofCam_WalmartSMU_1LIM.indd 9 3/9/17 1:40 P...
  • Page 10: Battery And Sd Card Installation

    Rechargeable batteries are not recommended. SD CARD INSTALLATION Memory Your BULLET PROOF Game Camera has a memory card slot, to accept SD cards up to 32 GB max. capacity (not included). When the SD card is full, the camera will stop capturing images.
  • Page 11: Date & Time Imprint Feature

    SD card, as described below. If no text file with date/time is found on the card when the camera is turned on, only “Primos” will be imprinted on the photos.
  • Page 12 OK to save the text file. Remove the SD card (eject it first if necessary) and insert it into your BULLET PROOF Game Camera (label side up as previously described). The date and time data will be automatically loaded into the camera, and the text file (txt) will be deleted.
  • Page 13: Power On

    Eject the SD card (right click, select “Eject (name of card)_”, and wait for the card icon to disappear from your Mac desktop). Make sure the Primos cam’s power switch is off. Insert the SD card into the camera’s card slot, then switch on the camera. Test the date imprint by waving a hand in front of the camera a few times during a minute or two.
  • Page 14: Set Up

    PIR coverage area. See “Test the Coverage Area” below. 3. Test the Coverage Area One of the BULLET PROOF Game Camera’s most useful features is the ability to test the coverage area. • After mounting the camera, open the front housing and slide the Power switch to the “ON”...
  • Page 15: Viewing The Photos/Videos

    in the coverage area (to avoid being seen by animals or potential thieves. The camera is now “sleeping” and waiting for the PIR sensor to trigger the an image capture. • Maximum PIR sensor range is approx. 13 meters (42 ft). Angle of PIR Coverage=42 degrees Lens Angle of View=40 degrees 4.
  • Page 16: Glossary

    Requires infrared energy (heat) in addition to motion to trigger the sensor to help limit detection to live subjects (rather than leaves, etc). Moon Phase: The BULLET PROOF Game Camera has a feature which imprints a moon phase stamp on each photo for reference.
  • Page 17: Technical Specifications

    TECHNICAL SPECIFICATIONS Model Number 63162WM Image Sensor Type 1/4 Inch CMOS Sensor Resolution 1 million pixels Effective Focal Length 6 mm Lens Aperture f/2.5 IR Filter Automatic IR Filter PIR Sensor Trigger Speed <1.0 second Number of IR LED 14 LEDs Max Night Vision Lighting Distance 30 feet Storage...
  • Page 18: Troubleshooting/Faq

    If you have used an SD card in another device before inserting it in your BULLET PROOF Game Camera, you might want to try formatting the card on your computer (make sure you have backed up any important files first, as formatting will erase all previous files).
  • Page 19 Make sure that you have installed at least 4 batteries in the battery compartment. Primos recommends using 8 Energizer® Lithium AA batteries in this BULLET PROOF Game Camera. Make sure that the batteries are installed correctly, observing proper polarity. Always place the negative (flat) end of each battery in contact with the spring tab side of its slot inside the camera.
  • Page 20 Troubleshooting / FAQ 6. Video file won’t play a. If the camera was powered off during a video recording, the file may have been corrupted. Photos Do Not Capture Subject of Interest Try to set your camera up in an area where there is not a heat source in the camera’s line of sight.
  • Page 21: Warranty

    WARRANTY You MUST register your BULLET PROOF® Cam online within (30) days of receipt to receive the 1 Year warranty and present a “Proof of Purchase” to receive warranty protection. If neither of these are presentable, we will not replace your item.
  • Page 22 Primos® reserves the right to alter the features and contents of this publication, hardware or software without obligation or advance notice. Warranty does not extend to any accessories used with the camera. Primos® is not responsible if you use the BULLET PROOF® Cam for illegal purposes. Primos® shall not be obligated to perform preventative maintenance, installation, deinstallation, or maintenance.
  • Page 23 mos63162WM_12MPBulletProofCam_WalmartSMU_1LIM.indd 23 3/9/17 1:40 P...
  • Page 24 For further questions or additional information please contact: Primos Customer Service (601) 879-9323 service@primos.com ©2017 B.O.P. mos63162WM_12MPBulletProofCam_WalmartSMU_1LIM.indd 24 3/9/17 1:40 P...
