Summary of Contents for Primos 63052WM

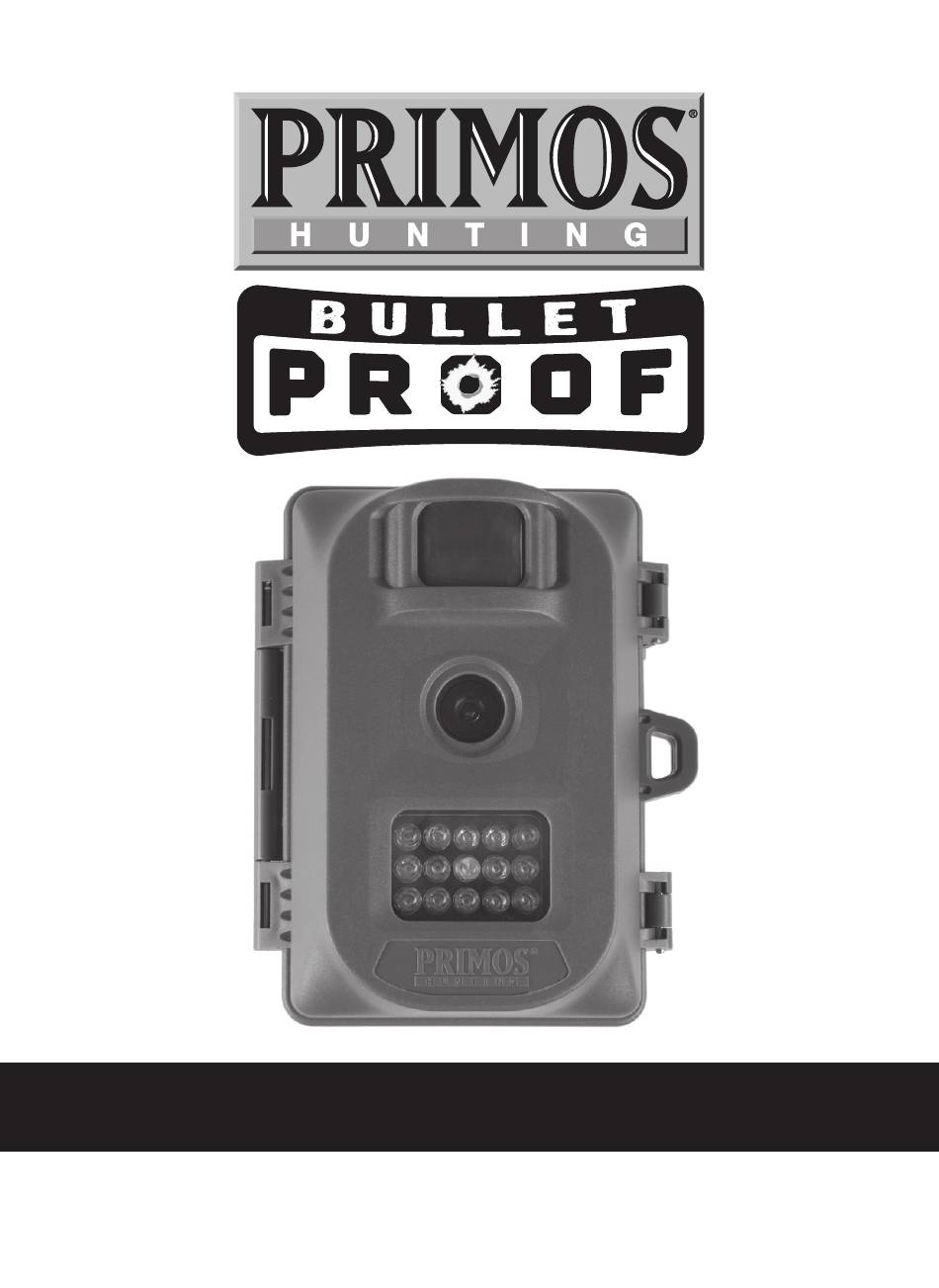

- Page 1 Instruction Manual Model #: 63052WM 03-16...
- Page 3 - DO NOT OPEN CASE HOUSING. UNINSULATED, ‘DANGEROUS VOLTAGE’ WITHIN PRODUCTS ENCLOSURE. DO NOT REMOVE HOUSING COVER. THERE ARE NO USER - SERVICEABLE PARTS INSIDE, REFER SERVICING TO PRIMOS® CUSTOMER SERVICE. • Only use batteries as specified in this user manual and install according to correct polarization.
- Page 4 Failure to follow may result in leaking or exploding batteries, damage to product, fire or personal injury. Do not handle damaged or leaking batteries. QUESTIONS?? Feel free to contact Primos® Customer Service Team with any comments, questions, problems or return requests. Call (601) 879-9323 or e-mail service@primos.com.
-
Page 5: Table Of Contents
Page Index Introduction Parts & Controls Guide Battery and SD Card Installation Date & Time Imprint Feature 11-13 Power On Set Up 14-15 Viewing the Photos Glossary Technical Specifications Troubleshooting/FAQ 18-20 Warranty... - Page 6 Congratulations on your purchase of one of the best Game Cameras on the market! Primos is very proud of this camera and we are sure you will be pleased with yours as well. We appreciate your business and want to earn your trust.
-
Page 7: Introduction
INTRODUCTION Congratulations on your purchase of a Primos BULLET PROOF Game Camera. This camera, with its weatherproof, rugged construction, is designed to record animal activity in the outdoors. Your BULLET PROOF Game Camera features a compact, portable size and an extra long battery life. -
Page 8: Parts & Controls Guide

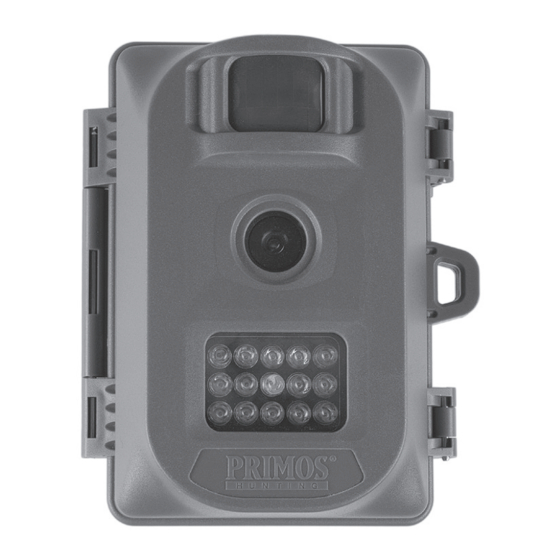

Parts and Controls Guide PIR Motion Sensor Latch Padlock Camera Hole Lens Infrared LED Array Front of Camera Light Sensor/ PIR Indicator IR LED Array Detail... - Page 9 Parts and Controls Guide Interior View (Unlatched) Battery Compartment (note orientation for correct polarity) Power/Mode Switch SD Card Slot...
-
Page 10: Battery And Sd Card Installation
BATTERY INSTALLATION To maximize battery life, you should install a full set of 8 AA lithium (for longest life) or alkaline batteries. The camera may also be powered by just four batteries installed in the first (starting on the left, near the padlock hole) slots only. -
Page 11: Date & Time Imprint Feature
SD card, as described below. If no text file with date/time is found on the card when the camera is turned on, only “Primos” will be imprinted on the photos. - Page 12 Click the “... ” button above Cancel and select the SD card location (drive letter). Or, if you know the drive letter for the SD card (e.g. “D:\”), change the “A” in the white box to the correct letter. Once the date/time data is correct and you’ve selected your SD card location, click OK to save the text file.
-
Page 13: Power On
Eject the SD card (right click, select “Eject (name of card)_”, and wait for the card icon to disappear from your Mac desktop). Make sure the Primos cam’s power switch is off. Insert the SD card into the camera’s card slot, then switch on the camera. Test the date imprint by waving a hand in front of the camera a few times during a minute or two. -
Page 14: Set Up
SET UP 1. Mount the Camera It is recommended that you mount the camera about 3 or 4 feet (0.9~1.2 meters) off the ground, with the camera pointed at a slight downward angle. It’s best to avoid mounting the camera facing east or west as the rising and setting of the sun could produce false triggers and overexposed images. -
Page 15: Viewing The Photos
• After three minutes, the PIR indicator will not glow when you are in the coverage area (to avoid being seen by animals or potential thieves. The camera is now “sleeping” and waiting for the PIR sensor to trigger the an image capture. •... -
Page 16: Glossary
GLOSSARY PIR (Passive Infrared Sensor): Senses motion like a typical security motion detector. Requires infrared energy (heat) in addition to motion to trigger the sensor to help limit detection to live subjects (rather than leaves, etc). Moon Phase: The BULLET PROOF Game Camera has a feature which imprints a moon phase stamp on each photo for reference. -
Page 17: Technical Specifications
TECHNICAL SPECIFICATIONS Model Number 63052WM Image Sensor Type 1/4 Inch CMOS Sensor Resolution 1 million pixels Effective Focal Length 7.6 mm Lens Aperture f/2.0 IR Filter Automatic IR Filter PIR Sensor Trigger Speed <1.3 second Number of IR LED 14 LEDs... -
Page 18: Troubleshooting/Faq
Make sure that you are using a good quality name brand SD card in your camera. Primos recommends SanDisk® brand SD Cards up to 32GB. Our experience indicates that poor quality SD cards can sometimes reduce your BULLET PROOF Game Camera battery life. - Page 19 Camera won’t power up Make sure that you have installed at least 4 batteries in the battery compartment. Primos recommends using 8 Energizer® Lithium AA batteries in this BULLET PROOF Game Camera. Make sure that the batteries are installed correctly, observing proper polarity.
- Page 20 Troubleshooting / FAQ Photos Do Not Capture Subject of Interest Try to set your camera up in an area where there is not a heat source in the camera’s line of sight. In some cases, setting the camera near water will make the camera take images with no subject in them.
-
Page 21: Warranty
According to this Limited Warranty Primos® will, at its discretion, (a) repair the production using new or refurbished parts or (b) replace the product with a new or refurbished product (product that has been returned to its original specifications). - Page 22 Primos® reserves the right to alter the features and contents of this publication, hardware or software without obligation or advance notice. Warranty does not extend to any accessories used with the camera. Primos® is not responsible if you use the BULLET PROOF® Cam for illegal purposes. Primos® shall not be obligated to perform preventative maintenance, installation, deinstallation, or maintenance.
- Page 24 For further questions or additional information please contact: Primos Customer Service (601) 879-9323 service@primos.com ©2016 B.O.P.
