- Page 1 XPD2m Digital Wireless System Owner’s Manual...
-
Page 2: Important Safety Information
WARNING! Risk of explosion if battery is replaced by an incorrect type. Copyright 2021, Samson Technologies Corp. v1.1 Samson Technologies Corp. 278-B Duffy Ave Hicksville, NY 11801... - Page 3 Owner’s Manual Important Safety Information Read these instructions. 13. Unplug the apparatus during lightning storms, or when unused for long periods Keep these instructions. of time. Heed all warnings. 14. Refer all servicing to qualified personnel. Follow all instructions. Service is required when the apparatus Do not use this apparatus near water.
- Page 4 (RF) energy set by the Federal Communications Commission of the U.S. Gov- ernment. Hereby, Samson Technologies Corp., declares that this XPD2m Digital Wireless System is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/ EU.
- Page 5 RA number prior to shipping your unit. Please retain the original packing materials and, if possible, return the unit in its original carton. If your XPD2m Digital Wireless System was purchased outside of the United States, contact your local distributor for warranty details...

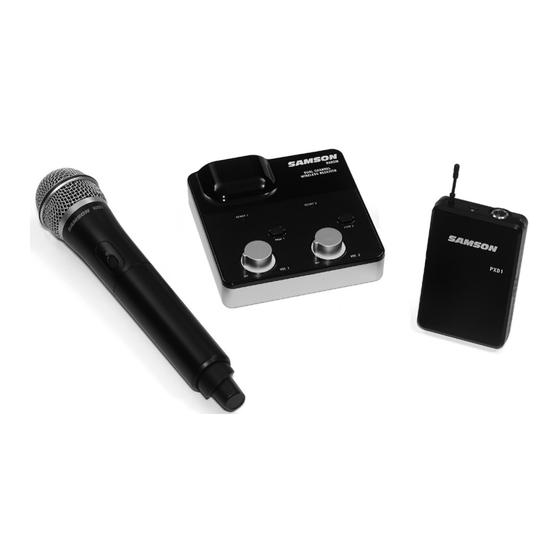

- Page 6 XPD2M Dual Channel Digital Wireless RXD2M Receiver Features VOLUME/Power Control - This rotary knob controls the level of the receiver output and powers the RXD2M on and off. Turn clockwise to power on and counterclockwise to power off. The light ring around the VOLUME/Power Control will illuminate white when powered on.
- Page 7 Owner’s Manual RXD2M Receiver Features Rear Panel DC Input - Connect the suplied adapter here. WARNING: Do not substitute any other kind of power adapter. Doing so can cause severe damage to your RXD2M receiver and void your warranty. Unbalanced Outputs - Use these unbalanced 1/4” and 1/8” jacks when connecting the RXD2M receiver to consumer (-10 dBV) audio equipment.
- Page 8 XPD2m system and so we recommend that this not be adjusted manually. If necessary, however, you can use the supplied screwdriver to raise or lower the input level.
- Page 9 Owner’s Manual PXD1 Beltpack Transmitter Callouts Input Connector - Connect the input device via this mini-XLR input jack. The PXD1 is supplied with either a lavalier or headset microphone that is wired to a P3 connector. Status Indicator - This LED displays the operation mode.
-
Page 10: Quick Start
XPD2M Dual Channel Digital Wireless Quickstart In order for the XPD2m Dual Channel Digital Wireless System to work correctly, both the RXD2M receiver and HXD1 handheld or PXD1 beltpack transmitter must be paired together. (NOTE: The XPD2m Digital Wireless System will come paired from the factory). - Page 11 Speak or sing into the microphone at a normal performance level while turning up the PA system’s volume control until you reach the desired output level. NOTE: Only one XPD2m systems can be used at a time.
-
Page 12: Troubleshooting
XPD2M Dual Channel Digital Wireless Troubleshooting Issue Solutions Make sure that the transmitter and receiver are both powered on. Ensure the transmitter’s batteries are installed correctly. Check that the transmitter volume is at an appropriate level. Confirm that the RXD2M adapter is correctly connected and plugged into an electrical outlet. -
Page 13: Specifications
Owner’s Manual Specifications System Operating Range 100’ (30m) line of sight Audio Frequency Response 24Hz - 18kHz (+0/-3dB) T.H.D.+N (Overall) <0.1%, +4dBu, 22kHz BW Dynamic Range XLR 81.9 dB re - 1.1 dBu Dynamic Range Unbal. 81.3 dB re +5.3 dBu Modulation Type GFSK Oscillation Type... - Page 14 Samson Technologies Corp. 278-B Duffy Ave Hicksville, New York 11801 Phone: 1-800-3-SAMSON (1-800-372-6766) www.samsontech.com...
