15. MMA: Machine Setup

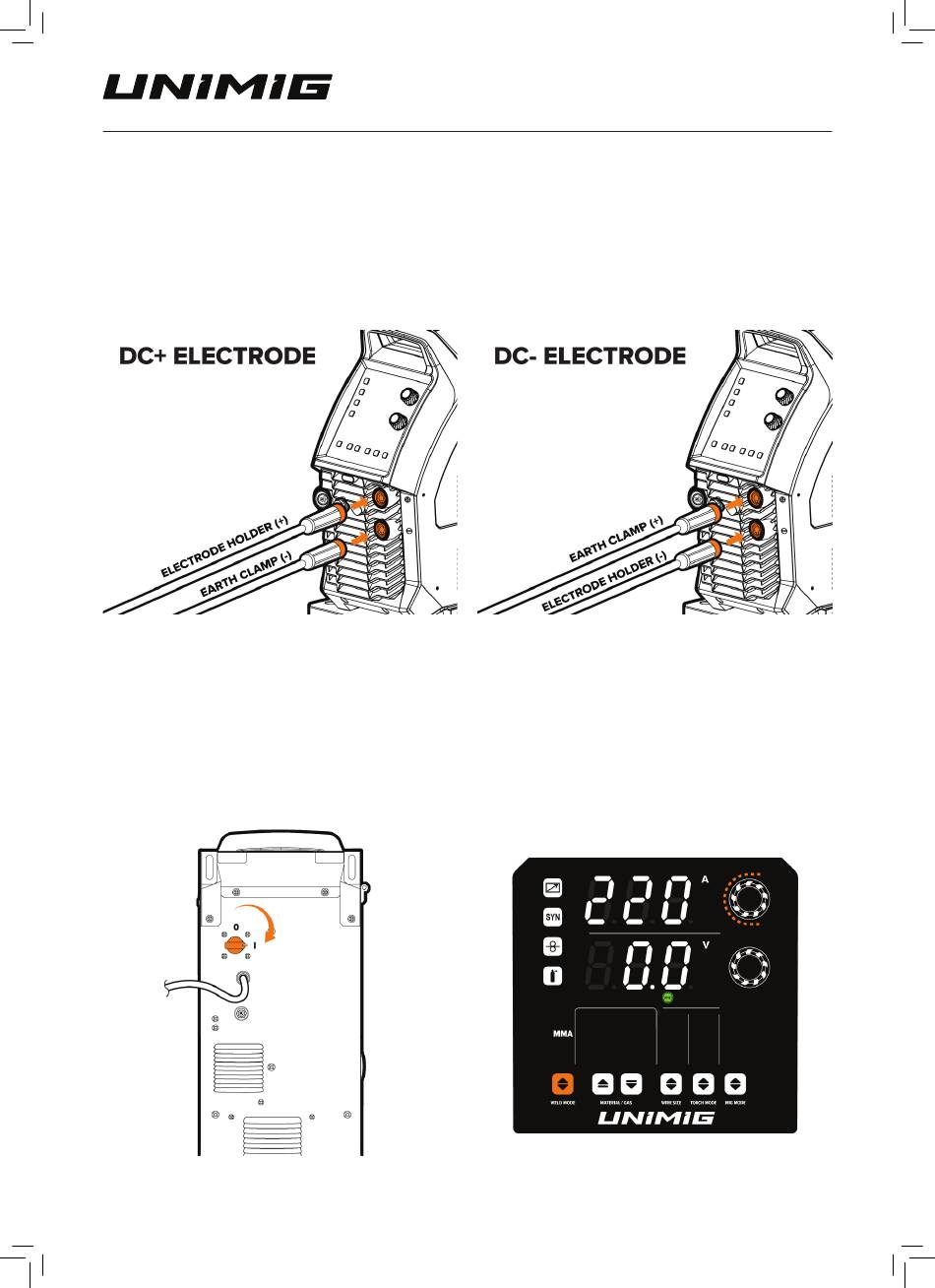

1. For DC+ electrodes, connect earth clamp to the (-)
dinse connection, and electrode holder to the (+) dinse
connection.
3. Connect the plug into a power point, then switch the
machine ON.
RAZOR Compact 250 Manual APR23.indd 40 RAZOR Compact 250 Manual APR23.indd 40
2. For DC- electrodes, connect earth clamp to the (+)
dinse connection, and electrode holder to the (-) dinse
connection.
4. Ensure that MMA mode is activated on the front panel
by pressing the WELD MODE button. Then set your
desired amperage using ADJUSTMENT KNOB A.
