iGenix IGFD2016W User Manual

Digital pedestal fan
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

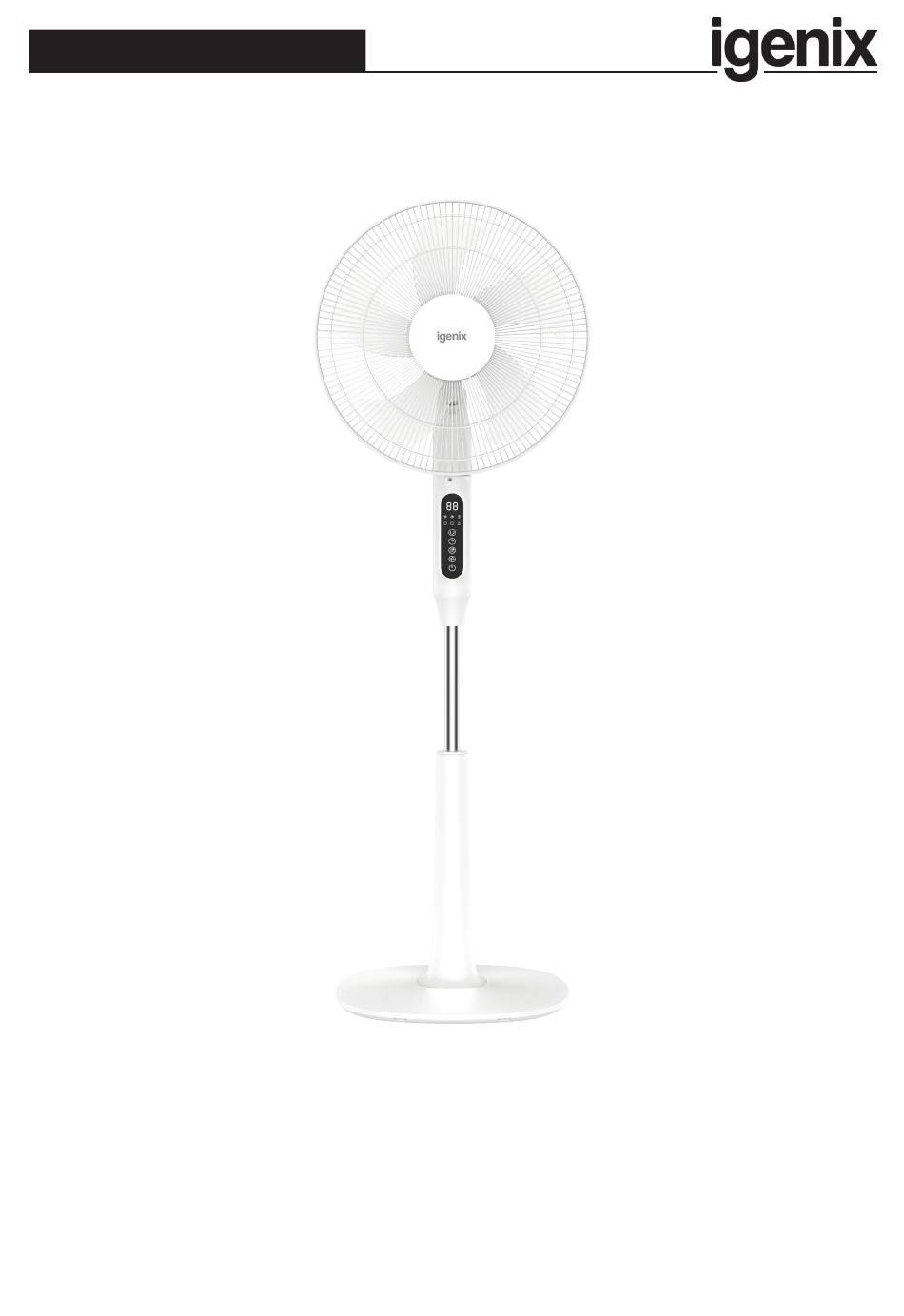

USER MANUAL

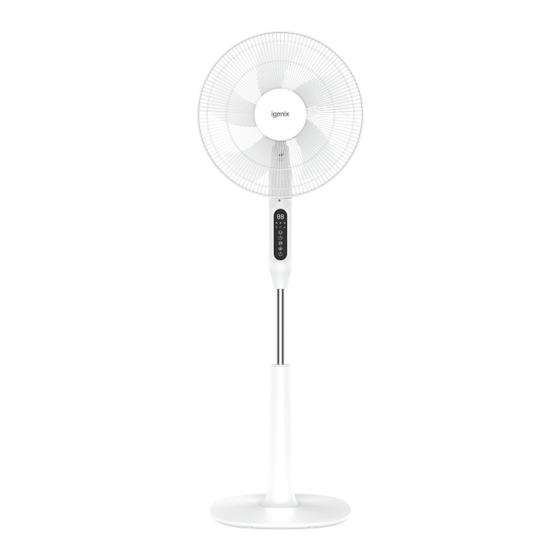

16 Inch Digital Pedestal Fan White
IGFD2016W
Please read these instructions carefully before use and retain for future reference
Before switching on your appliance,
always check for any damage which may have been caused in transit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IGFD2016W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iGenix IGFD2016W

Summary of Contents for iGenix IGFD2016W

  • Page 1 USER MANUAL 16 Inch Digital Pedestal Fan White IGFD2016W Please read these instructions carefully before use and retain for future reference Before switching on your appliance, always check for any damage which may have been caused in transit...

  • Page 2: Table Of Contents

    Product Overview ..............5-6 Assembly Instructions ............7-9 Operating Instructions ............10-11 Cleaning and Maintenance ............. 11 Anomalies and Repair ............. 11 Trouble Shooting Guide ............12 Fuse Replacement ..............13 Disposal Information ............... 13 Igenix Warranty Terms and Conditions ......14-15...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product, and find a place to keep this manual handy for future reference. Important: This appliance is intended for use in a domestic environment only.
  • Page 4 the power cord. Never use the power cord to lift up, carry or unplug the appliance. • Do not use the unit near a bath, shower, swimming pool or anywhere it could be splashed with water. • Do not expose the unit to direct sunlight. •...

  • Page 5: Product Overview

    renders the guarantee and the manufacturer’s liability null and void. PRODUCT OVERVIEW A. Front Grill B. Blade Fastening Nut C. Fan Blades D. Grill Fastening Nut E. Back Grill Motor Shaft G. Motor Cover H. Fan Head Control Panel Fan Head Bolt K.
  • Page 6 Display 1. LED Display 2. Function Lights 3. Oscillation Button 4. Timer Button 5. Modes Button 6. Speed Button 7. On/Off Button * Note: Display will dim and not show LED after 30 seconds Remote Control A. Speed Button B. Modes Button C.

  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Be sure to remove all packaging material from the appliance. IMPORTANT: Remove parts from each separate component before performing installation BASE INSTALLATION: The appliance should be used with its base fitted. • Attach the bottom tube (N) to the base (O) and fix it with the plastic nut (P).
  • Page 8 Front and Rear Grill Installation • Remove the grill fastening nut (D) and blade fasten nut (B) from the motor shaft (F). • Attach the back grill (E) to the motor cover (G) and fix it with the grill fasten nut (D).
  • Page 9 Remote Before use, pull out the plastic card from the bottom of the remote. Please make sure the remote is directed towards the fan when operating. NOTE: this remote does NOT come with a battery as standard - 1 x CR2032 button battery is required for operation...

  • Page 10: Operating Instructions

    OPERATING INSTRUCTIONS Extend the cable completely before plugging it in. Connect the appliance to the mains. Turn the appliance on, by using the on/off button (7/E). Breeze - The fan alternates periods of more and less power, simulating the feeling of a soft breeze. The amplitude of these shifts depends on the speed selected.

  • Page 11: Cleaning And Maintenance

    Fan function: Select the desired ventilation speed by pressing the speed button (6/A). The selected speed will appear on the LED display (1). Once you have finished using the appliance: Turn the appliance off using the on/off button (7/E). Unplug the appliance from the mains. Clean the appliance.

  • Page 12: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE If you experience difficulties with the appliance, please check the suggestions below before contacting customer services on 01473 271272: Problem Possible Cause Possible Solution The appliance does not The appliance is not Plug the appliance in work. properly plugged into firmly.

  • Page 13: Fuse Replacement

    MAINS PLUG FUSE REPLACEMENT Fuse Cover Fuse Replacement (Class II) Remove the fuse cover with a small flat head screw driver. Take out the fuse and replace with a new fuse of the same Amp. Replace the fuse cover and push back into place.

  • Page 14: Igenix Warranty Terms And Conditions

    Igenix Warranty Terms & Conditions This product is guaranteed for a period of 12 months as standard from the date of purchase against mechanical and electrical defects. You can extend your warranty for a further 12 months by registering your product.
  • Page 15 To qualify for the 2 year warranty you must register your product within 30 days of purchase. The full Terms & Conditions of our warranty policy are shown on the opposite page. They are also available on our website. www.igenix.co.uk...
  • Page 16 EU: Castle Electrical Factors Ltd., Dundalk, A91 KA9R, IR Tel. 01473 271 272 Disclaimer: Igenix operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice.
