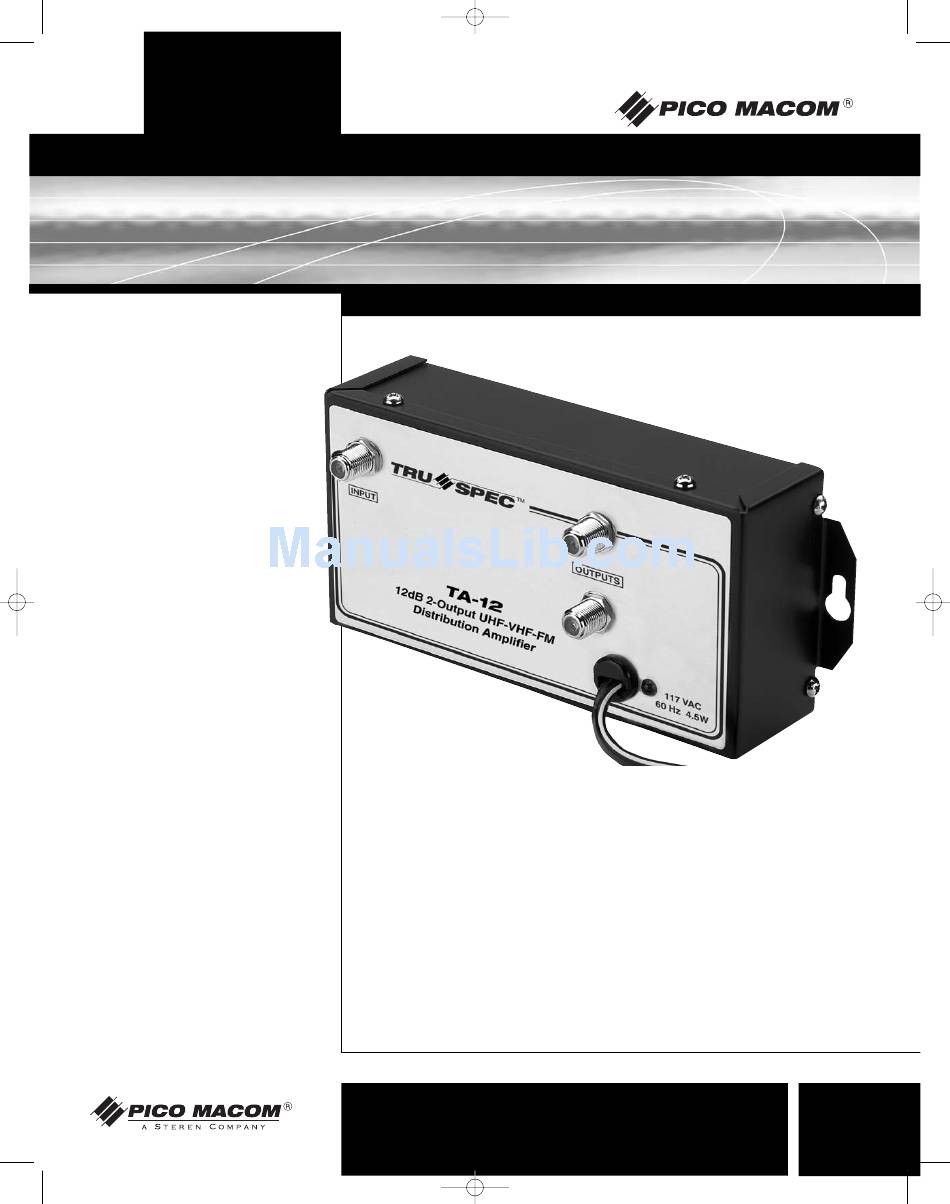

- Page 1 TA-12 Manual.qxd 1/2/04 12:46 PM Page 1 TA-12 12dB 2-Output UHF-VHF-FM Distribution Amplifier Installation and Operation Manual Operation www.picomacom.com Ph: 800-421-6511 Manual Rev. 10/03...
-
Page 2: Product Inspection
To insure proper installation and operation, take a moment to read this guide before proceeding with the installation. If you have any questions or comments about the TA-12 12dB 2-Output UHF-VHF-FM Distribution Amplifier, please contact your dealer or have him contact the PICO MACOM Service Center at these phone numbers: 800-421-6511, 818-493-4300. - Page 3 TA-12 Manual.qxd 1/2/04 12:47 PM Page 3 11. Power Sources: This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your appli- ance dealer or local power company.

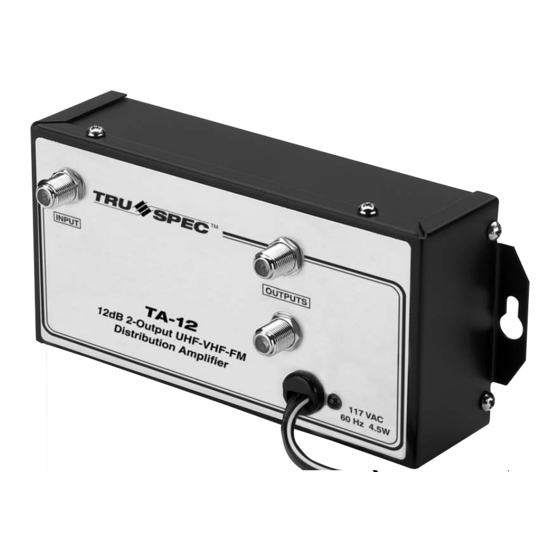

- Page 4 TA-12 Manual.qxd 1/2/04 12:47 PM Page 4 Descriptions TA-12 12dB 2-Output UHF-VHF-FM Distribution Amplifier 12dB 2-Output UHF-VHF-FM Distribution Amplifier Cost-Effective Wide Frequency Bandwidth Amplifier – 68 Off-Air Channel Range (54- 806MHz) suitable for small to large MATV-SMATV systems – Very Low-Noise and Distortion –...
-
Page 5: Specifications
TA-12 Manual.qxd 1/2/04 12:47 PM Page 5 Channel Loading Specifications Total # of Channels Max. Input 35 dBmV 20 dBmV Ordering Information TA-12 12dB 2-Output UHF-VHF-FM Distribution Amplifier 1: Transmission Max. Output 47 dBmV 41 dBmV Start 54.000 MHz 1: Mkr (MHz) 54.00... -
Page 6: Operation And Controls
TA-12 Manual.qxd 1/2/04 12:48 PM Page 6 Operation and Controls TA-12 Front Panel Input: The output cable from an antenna connects to this connector. Outputs: The amplified output signal is available at these connectors. Power Cord: This three prong polarized power cord is approved by both UL and CSA for safe operation of the amplifier. Do not cut the ground terminal for both safety and operational reasons. -
Page 7: Installation Procedure
TA-12 Manual.qxd 1/2/04 12:48 PM Page 7 Installation Procedure TA-12 Installation Ph: 800-421-6511 www.picomacom.com Rev. 10/03... -
Page 8: Limited Warranty
We will issue an invoice for the List Price of the loaner unit plus shipping costs. When you receive the loaner unit, pack the failed unit in the loaner unit’s box and ship it freight prepaid to Pico Macom for repair. When you receive the repaired unit, a new RMA number will be provided in the box. Carefully pack the loaner unit and affix the new RMA number on the box and ship it back to us for full credit excluding shipping costs.
