Page 1
TA-15 Manual.qxd 11/7/03 7:53 AM Page 1 TA-15 11-15dB Sloped UHF-VHF-FM Distribution Amplifier Installation and Operation Manual Operation www.picomacom.com Ph: 800-421-6511 Manual Rev. 11/03...
Page 2
Important Safety Instructions To insure proper installation and operation, take a moment to read this guide before proceeding with the installation. If you have any questions or comments about the TA-15 11-15dB Sloped UHF-VHF-FM MACOM Service Center at these phone numbers: 800-421-6511, 818-493-4300.
Page 3
TA-15 Manual.qxd 11/7/03 7:54 AM Page 3 Power Sources: This product should be type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your appli- ance dealer or local power company.
Page 4

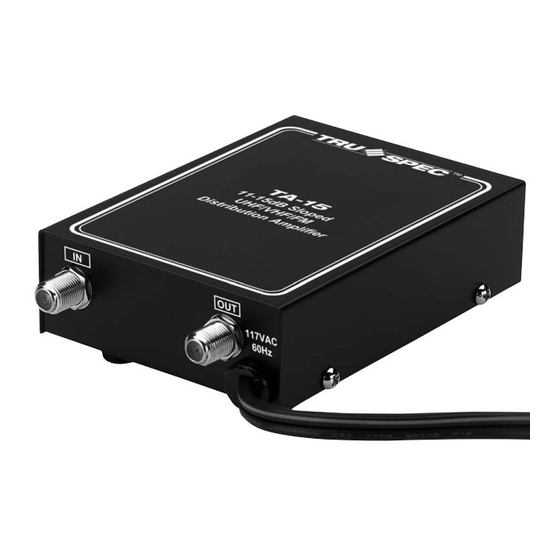

TA-15 Manual.qxd 11/7/03 7:54 AM Page 4 Descriptions 11-15dB Sloped UHF-VHF-FM Distribution Amplifier 11-15dB Sloped UHF-VHF-FM Distribution Amplifier Cost-Effective Wide-Frequency Bandwidth Amplifier – 68 Off-Air Channel Range (54-806MHz) suitable for small to large MATV-SMATV systems – 4dB sloped-output across band provides low harmonic distortion - Heavy Gauge Rugged Shielded Case –...
TA-15 Manual.qxd 11/7/03 7:54 AM Page 5 Channel Loading Specifications Total # of Channels Max. Input Level 37 dBmV 18 dBmV Maximum output levels will vary with the number of channels. Exceeding speci- fied input levels will cause intermodulation and picture distortion.
TA-15 Manual.qxd 11/7/03 7:55 AM Page 6 Operation and TA-15 Front Panel Input: Connect input cable to this port. Output: Connect this port to the distribution system. Power Cord: This three prong polarized power cord connects to 108 to 125 Vac, 50/60 Hz electrical outlet. Do not cut the ground terminal.
Page 7
TA-15 Manual.qxd 11/7/03 7:55 AM Page 7 Installation Procedure TA-15 Installation VHF/IUHF ANTENNA GROUND BLOCK TA-15 11-15dB Sloped UHF/VHF/FM Distribution Amplifier TO DISTRIBUTION SYSTEM (SPLITTERS AND T APS) CAUTION: DO NOT EXCEED RECOMMENDED INPUT LEVEL RATING. Ph: 800-421-6511 www.picomacom.com Rev. 11/03...
We will issue an invoice for the List Price of the loaner unit plus shipping costs. When you receive the loaner unit, pack the failed unit in the loaner unit’s box and ship it freight prepaid to Pico Macom for repair. When you receive the repaired unit, a new RMA number will be provided in the box. Carefully pack the loaner unit and affix the new RMA number on the box and ship it back to us for full credit excluding shipping costs.
