Summary of Contents for Pico Macom CA-30
-

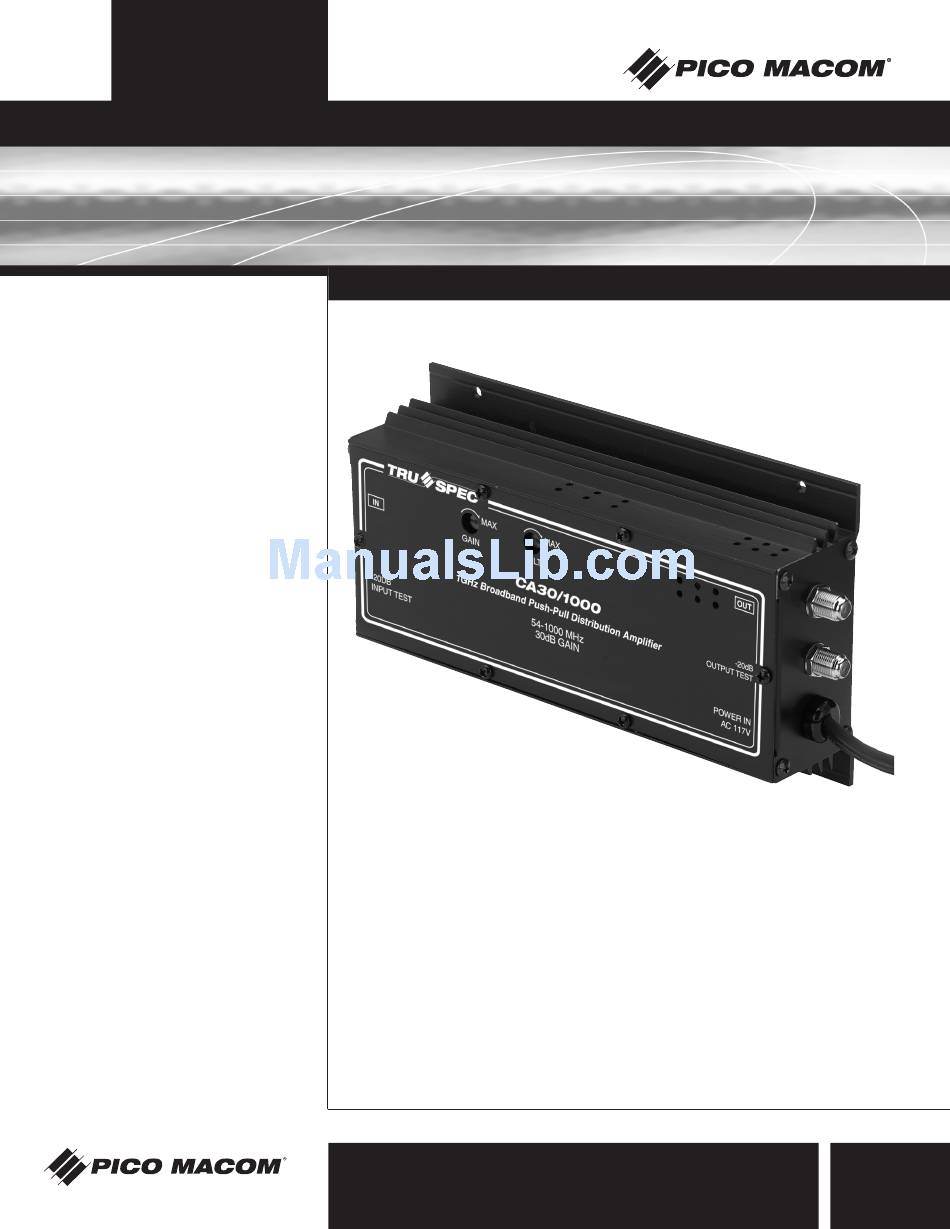

Page 1: Operation Manual
CA-30/1000 1GHz Broadband Push-Pull Distribution Amplifier Installation and Operation Manual Operation www.picodigital.com Ph:800-421-6511 Manual Rev. 02/13... -
Page 2: Product Inspection
To insure proper installation and operation, take a moment to read this guide before proceeding with the installation. If you have any ques- tions or comments about the CA-30/1000, please contact your dealer or have him contact the PICO MACOM Service Center at the phone numbers at the bottom of the page. - Page 3 Safeguards CA-30/1000 11. Power Sources: This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your appli- ance dealer or local power company.
- Page 4 1GHz Broadband Push-Pull Distribution Amplifier age surge protection protects the unit from damage The Pico Macom CA-30/1000 is a high quality push-pull wall-mounted dis- Black anodized extruded alumi- tribution amplifier producing signals with extremely low-noise and harmonic num heat-sink maximizes heat dissipation for improved reliabil- distortion.
-
Page 5: Specifications
Specifications CA-30/1000 1GHz Broadband Push-Pull Distribution Amplifier Specifications Bandwidth: 54-1000 MHz Cross Modulation: -62 dB (129 channels Gain: 30 dB @ 13 dBmV input level) Gain Adjust Range: 12 dB Return Loss In: >20 dB to 800 MHz Slope Adjust Range:... -
Page 6: Operations And Controls
Operations and Controls CA-30/1000 Front Panel Controls and Specifications Gain Adjust: Potentiometer provides for R.F. gain adjustment. Tilt Adjust: Potentiometer provides for slope adjustment over entire bandwidth. The input RF signal is connected to this port. OUT: The amplified RF signal is available at this port. -
Page 7: Installation Procedure
OPERATING GUIDELINES Below is a chart showing the proper operation level for the CA-30/1000. Please note the listed performance criteria is for SPECIFIC numbers of channels, and must be de-rated accordingly when inserting additional channels. Also note the amplifier’s gain does not change. -
Page 8: Warranty Limitations
List Price of the loaner unit plus shipping costs. When you receive the loaner unit, pack the failed unit in the loaner unit’s box and ship it freight prepaid to Pico Macom for repair. When you receive the repaired unit, a new RMA number will be provided in the box. Carefully pack the loaner unit and affix the new RMA number on the box and ship it back to us for full credit excluding shipping costs.
